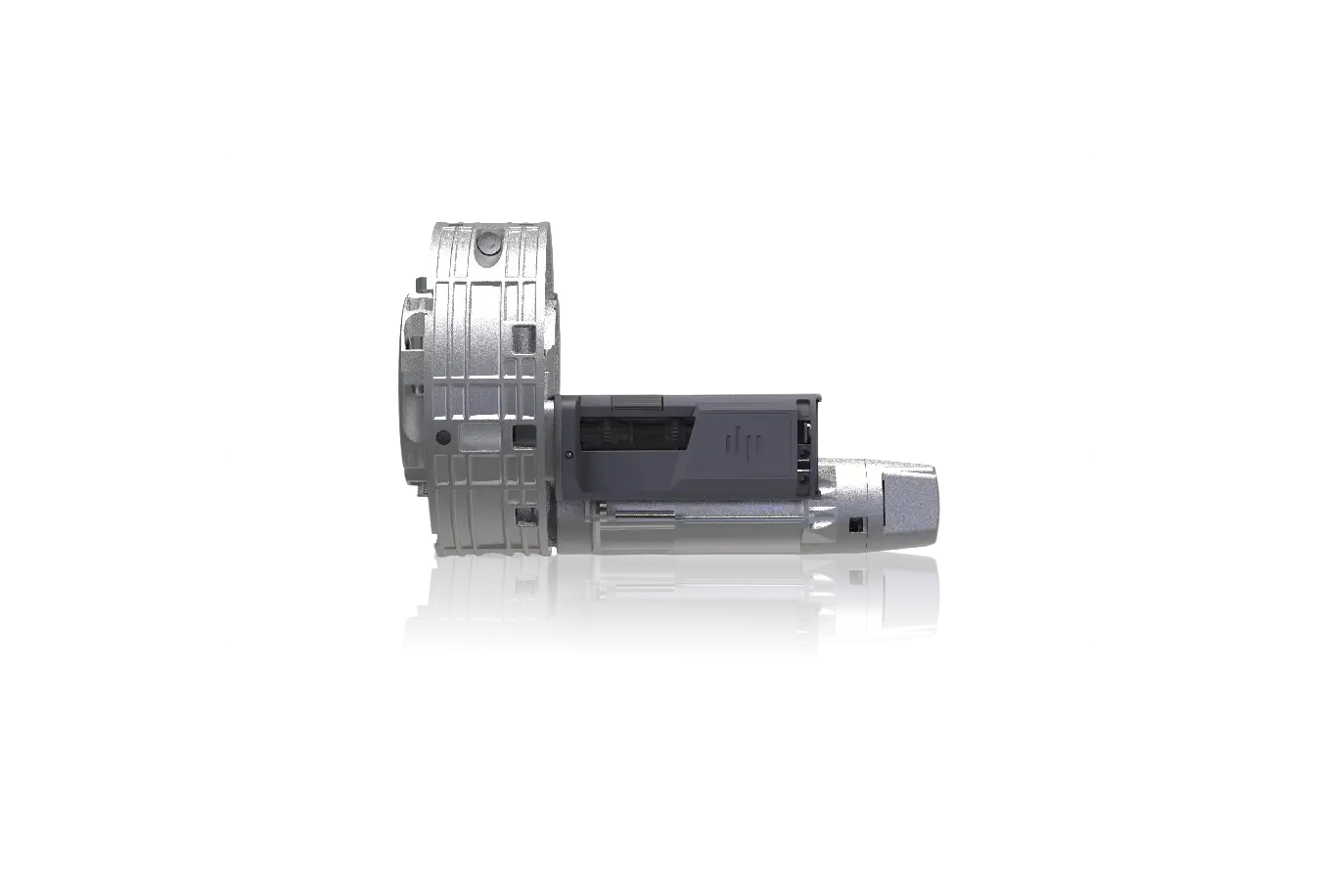

TORQEN Automation Roller Shutter Motor TIGER AS
Type
Door Automation
Warranty
More than 5 years
Application
garage, Farmhouse, Home Office, Other
Place of Origin
China
Brand Name
TORQEN
Material
Aluminum / Alloy
Product Overview
Designed for demanding, high-performance applications, the TIGER AS industrial central motor combines robust construction with advanced drive technology. Its shot-blasted and precision-finished housing ensures outstanding mechanical strength and efficient thermal management. Equipped with an upgraded three-stage planetary reduction system, powder metallurgy high-frequency hardened gears, and a powder metallurgy travel slider, the motor delivers quieter operation, enhanced power transmission efficiency, and highly accurate positioning performance. This makes it an ideal solution for automated door systems, industrial access control equipment, and other precision motion-control applications.
Key attributes
TORQUE | R.P.M | LIMIT SWITCH(maximum door travel) | CUT OUT TEMPERATURE(min) | POWER ABSORBED(W) | CONSUMPTION(A) | LIFTING(kg) | TUBE ROLLING(mm) | PULLEY(mm) |
|---|---|---|---|---|---|---|---|---|
210 | 9.5 | 6 | 4 | 650 | 2.85 | 175 | 76 | 240 |
230 | 9.5 | 6 | 4 | 715 | 3.12 | 190 | 76 | 240 |
FAQs
What makes the TIGER AS different from conventional central motors?
The TIGER AS features an upgraded three-stage planetary gearbox, powder metallurgy high-frequency hardened gears, and a precision travel slider. Compared with conventional gear drive systems, it offers higher torque density, lower noise, improved transmission efficiency, and more accurate positioning performance.
Is the TIGER AS suitable for heavy-duty industrial applications?
Yes. The shot-blasted and precision-machined housing provides excellent structural strength and heat dissipation, while the planetary reduction system distributes loads across multiple gears, allowing the motor to handle demanding industrial environments and continuous-duty operations.
Can CHINA-DEVELOP customize the motor for OEM and ODM projects?
Yes. As a professional motor manufacturer, CHINA-DEVELOP supports OEM and ODM customization, including voltage options, torque ratings, gearbox ratios, control systems, mounting configurations, and application-specific requirements.
What are the main benefits of the three-stage planetary gearbox?
The three-stage planetary gearbox provides higher torque output, smoother power transmission, lower backlash, reduced vibration, and more precise motion control while maintaining a compact design.
What industries commonly use the TIGER AS central motor?
The TIGER AS is widely used in automated door systems, industrial access control equipment, smart building automation, material handling systems, and other precision motion-control applications where reliability, efficiency, and positioning accuracy are critical.
