45mm Tubular Motor 10–60Nm | Manufacturer & Wholesale Supplier
Product Overview
The 45S series is a standard tubular motor designed for medium to heavy-duty loads. With a robust 45mm diameter and a wide torque range of 10N.m to 60N.m, it can flexibly adapt to various demanding scenarios, from conventional roller blinds to large awnings. The product upholds stable and reliable industrial quality while offering an attractive market price. It has obtained multiple international authoritative certifications, including CE, CCC, and TUV, making it an ideal power solution for commercial and industrial applications seeking a balance between performance and cost.
Key attributes
Rated Torque (N.m) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Power Input (W) | Tube Diameter (mm) | Rated Current (A) | Running Time | Rated Speed (rpm) | Protection Index | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|
10 | 230 | 50 | 155 | 45 | 0.70 | S2 4min | 15 | IP44 | Class F |
20 | 230 | 50 | 168 | 45 | 0.75 | S2 4min | 15 | IP44 | Class F |
20 | 230 | 50 | 238 | 45 | 1.05 | S2 4min | 28 | IP44 | Class F |
30 | 230 | 50 | 203 | 45 | 0.88 | S2 4min | 15 | IP44 | Class F |
40 | 230 | 50 | 238 | 45 | 1.05 | S2 4min | 15 | IP44 | Class F |
50 | 230 | 50 | 262 | 45 | 1.20 | S2 4min | 12 | IP44 | Class F |
60 | 230 | 50 | 260 | 45 | 1.25 | S2 4min | 10 | IP44 | Class F |
Specification
45S Standard Type

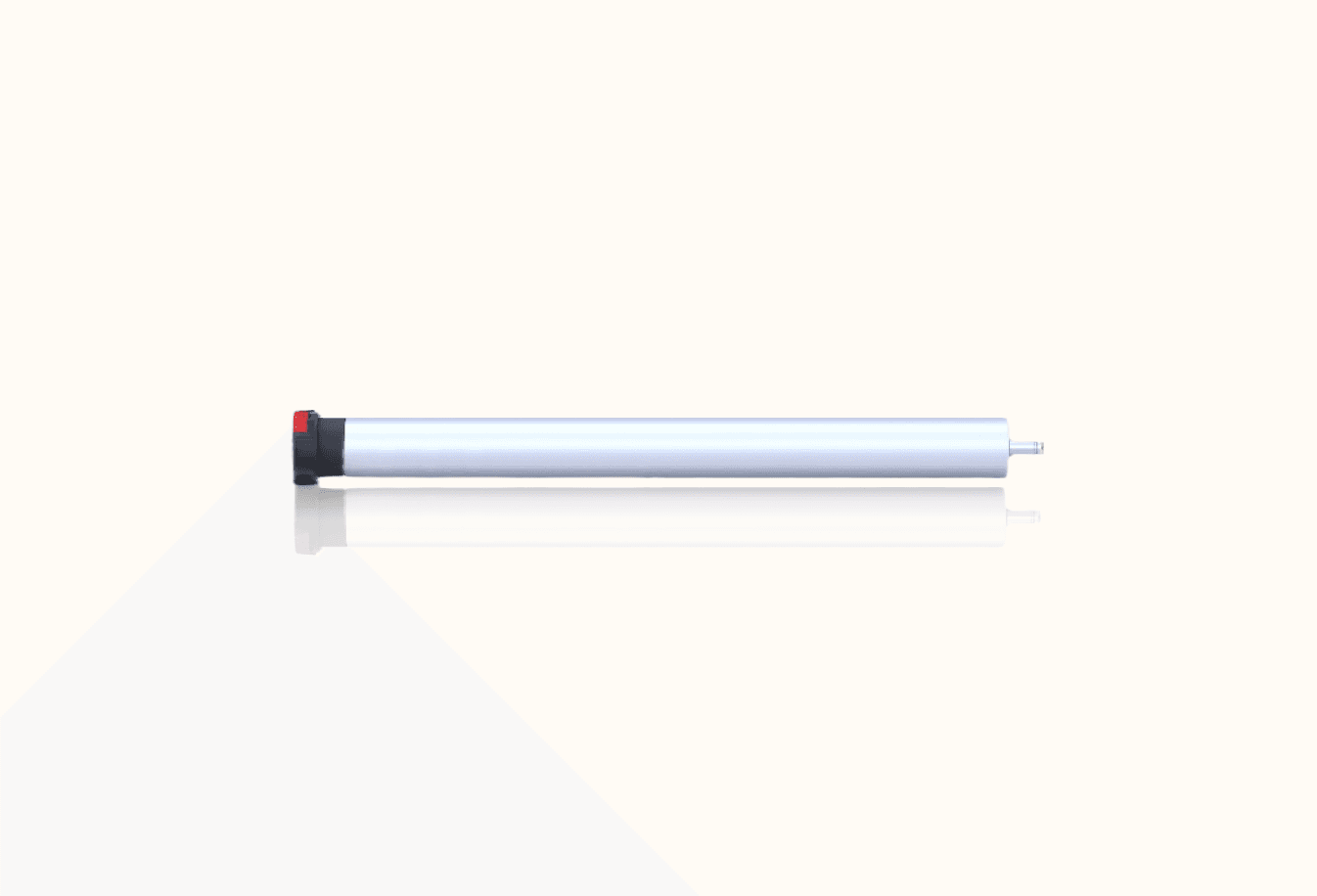

45mm diameter tubular motor
10N.m ~ 60N.m
CE, CCC, TUV approved
Ideal for rolling blind, screen, awning, rolling shutter, etc.
Technical Specifications (230V/50Hz unless noted)
FAQs
What applications is the 45S tubular motor suitable for?
The 45S standard tubular motor is suitable for rolling blinds, screens, awnings, and light to medium-duty rolling shutters. Its wide torque range allows flexible use in both commercial and industrial installations.
What torque options are available in the 45S series?
The 45S series offers rated torque options from 10 Nm up to 60 Nm, allowing users to select the appropriate motor based on load requirements and application size.
What electrical specifications does the motor support?
The motor operates at 230V / 50Hz (unless otherwise specified). Rated power input ranges from 155 W to 260 W, with rated current between 0.7 A and 1.25 A, depending on the torque model.
What is the operating speed and duty cycle?
Rated speed varies by model, ranging from 10 to 28 RPM. The motor is designed for S2 duty cycle with a 4-minute running time, ensuring reliable performance in typical blind and shutter operations.
What protection and insulation standards does the motor meet?
All models feature IP44 protection and Class F insulation, providing reliable safety, durability, and resistance to dust and water splashes in daily operation.
What certifications does the 45S tubular motor have?
The 45S series is CE, CCC, and TUV certified, meeting international safety and quality standards and making it suitable for global commercial and industrial markets.
