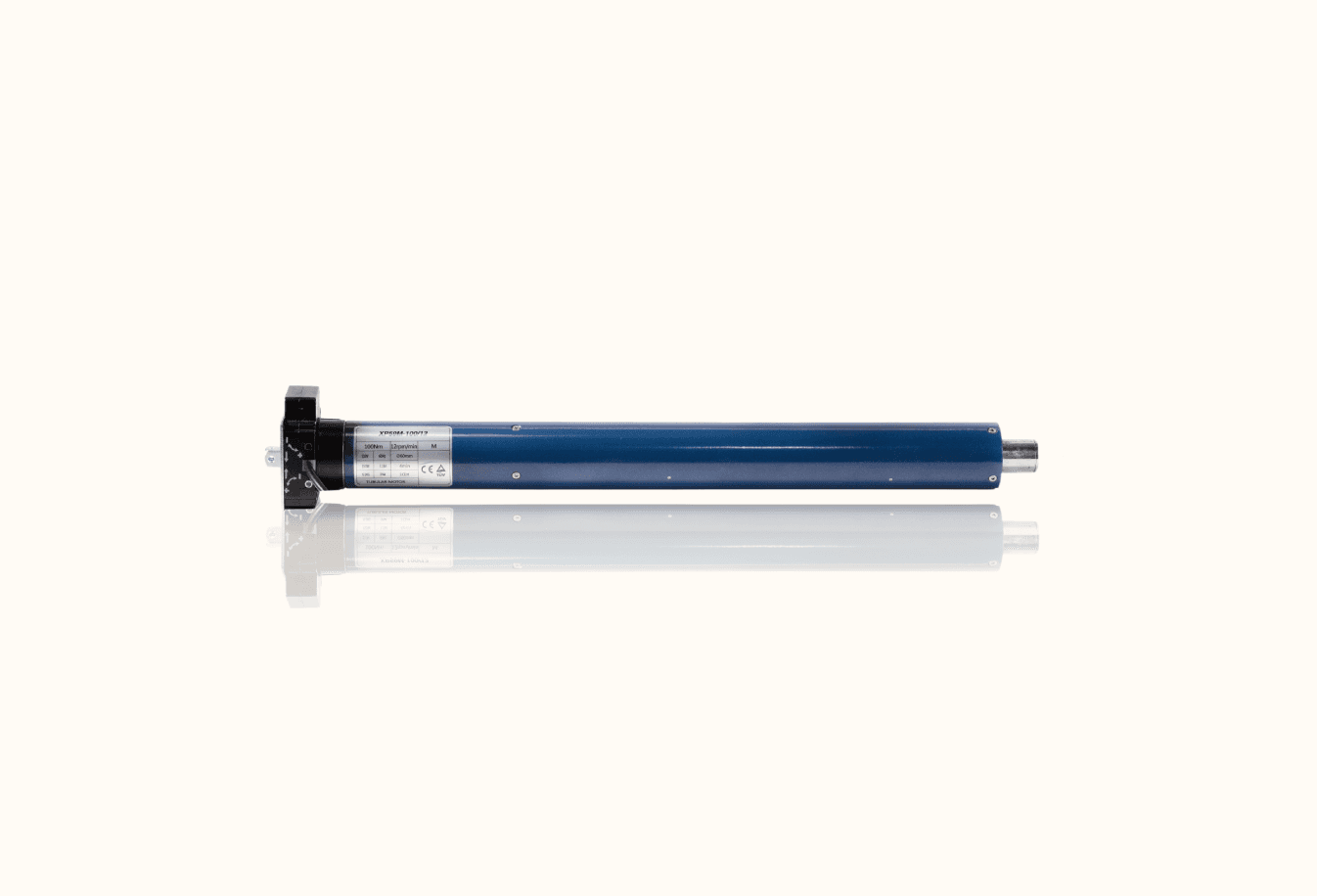

59mm Tubular Motor 80–180Nm | Manufacturer & Wholesale Supply
Product Overview
Operating noise is effectively controlled between 50-55dB, and it features a built-in mechanical travel limit system. The vertical travel can be easily set via the tail adjustment lever, and the motor automatically stops when it reaches the preset position, achieving automated management. Power output is smooth and balanced, effectively driving most conventional roller shutters, windows, and sunshades. The motor is compatible with various sizes of transmission limit sleeves, ensuring strong compatibility. Wiring is convenient, and installation is simple.
Key attributes
Rated Torque (N.m) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Power Input (W) | Tube Diameter (mm) | Rated Current (A) | Running Time | Rated Speed (rpm) | Protection Index | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|
80 | 230 | 50 | 330 | 60 | 1.45 | S2 4min | 12 | IP44 | Class H |
100 | 230 | 50 | 350 | 60 | 1.55 | S2 4min | 12 | IP44 | Class H |
120 | 230 | 50 | 365 | 60 | 1.60 | S2 4min | 12 | IP44 | Class H |
140 | 230 | 50 | 380 | 60 | 1.69 | S2 4min | 10 | IP44 | Class H |
150 | 230 | 50 | 390 | 60 | 1.74 | S2 4min | 10 | IP44 | Class H |
160 | 230 | 50 | 450 | 60 | 1.95 | S2 4min | 10 | IP44 | Class H |
180 | 230 | 50 | 450 | 60 | 2.00 | S2 4min | 7 | IP44 | Class H |
Specification
59M Manual Type
60mm diameter tubular motor
80N.m ~ 180N.m
Manual override
CE, CCC, TUV approved
Ideal for awning, rolling shutter, etc.
Technical Specifications (230V/50Hz unless noted)
FAQs
What applications is the 59M manual tubular motor suitable for?
The 59M manual type tubular motor is designed for awnings, rolling shutters, and other medium to heavy-duty shading and closure systems where stable torque and emergency manual operation are required.
What torque options are available in the 59M series?
The 59M series offers rated torque options from 80 Nm to 180 Nm, allowing flexible selection based on shutter size, weight, and operating conditions.
What is the benefit of the manual override function?
The built-in manual override allows the shutter or awning to be operated manually during power outages or emergency situations, ensuring safety and continuous usability.
What electrical and performance specifications does the motor support?
The motor operates at 230V / 50Hz (unless otherwise specified), with rated power input from 330 W to 450 W and rated current between 1.45 A and 2.00 A, depending on the torque model.
What are the operating speed and duty cycle?
Rated speed ranges from 7 to 12 RPM, providing smooth and controlled movement. The motor is designed for S2 duty cycle with a 4-minute running time, suitable for standard awning and shutter operations.
What protection and certification standards does this motor meet?
All models feature IP44 protection and Class H insulation, and are CE, CCC, and TUV certified, ensuring compliance with international safety and quality standards.
