Automatic Industrial Shutter Side Motor | China Roller Shutter Motor
Type
Door Automation
Warranty
1 Year
Application
Homes, garages, and private properties
Place of Origin
China
Brand Name
DEVELOP
Material
Aluminum / Alloy
Product Overview

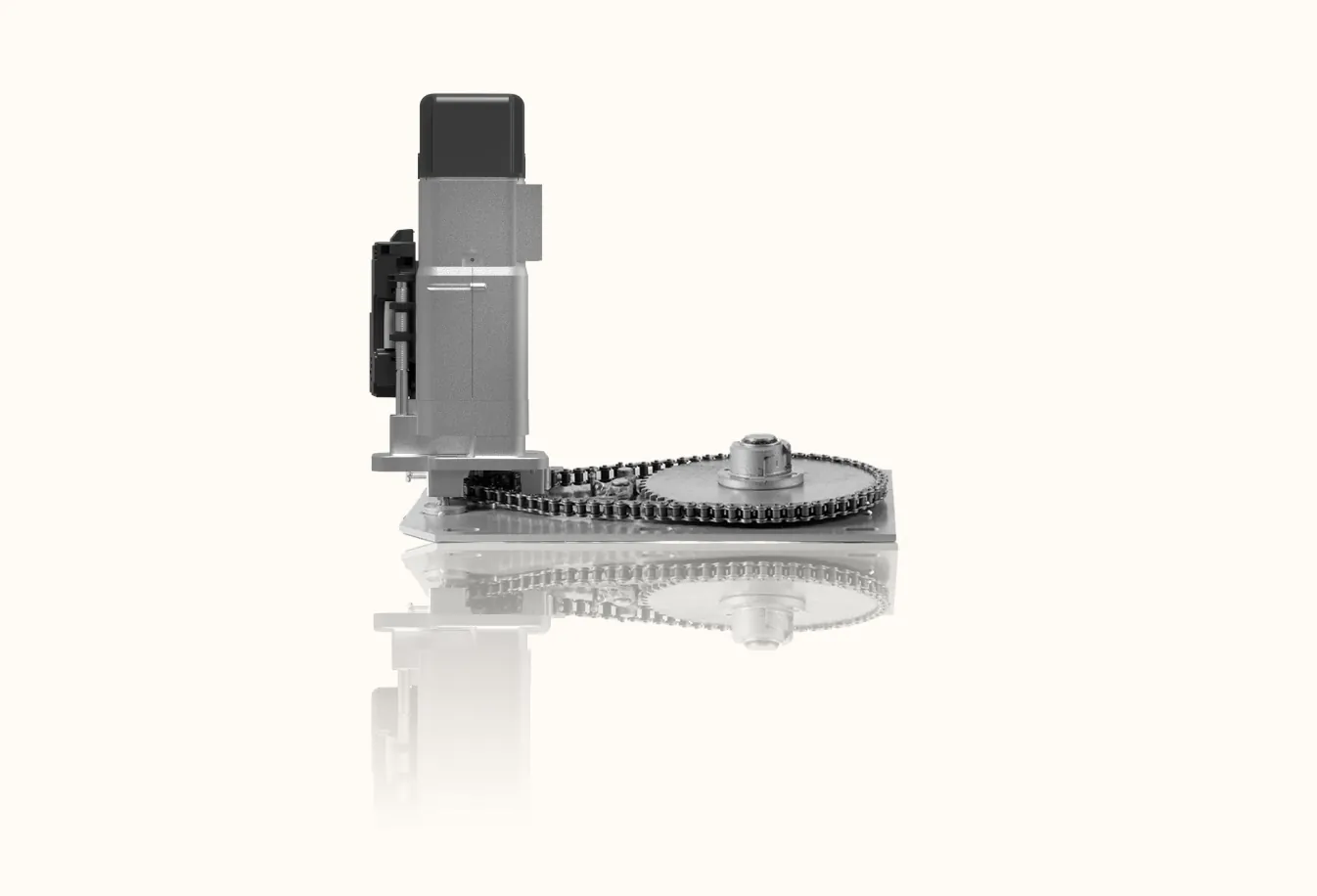

The AS Side Motor is a powerful and durable motor designed for roller shutter doors, providing high torque, smooth operation, and long-lasting reliability across industrial, commercial, and residential applications.
Key attributes
Project Solution Capability | Graphic design | Design Style | Modern |
|---|---|---|---|
Warranty | 1 Year | Application | Roller Shutter Gate |
After-sale Service | Online Technical Support | Type | Automatic Door Operators |
Product Name | AS Side Motor | Place of Origin | Zhejiang, China |
Brand Name | DEVELOP | Model Number | DP300AC |
Input Power | 500 W | Color | Black |
Max Elev Distance | 6 M | Voltage | AC 220V,AC 110V |
Max Lifting Weight | 300 KG | Protection | IP44 |
Output Torque | 168 Nm | Output Speed | 6.2 R/min |
Product Features
Easy to install and maintain with long working life.
Powerful, low noise, lower energy consumption.
When power is off, it can be operated to open and close the door by manual chain.
Accurate limit controls shutter up, down and stop.
4 micro switches and 4 relays improve motors much safer during awful weather and environment.
With safety equipment.
Depend on different countries, the voltage is from 110V~230V and frequency is from 50Hz~60Hz.
FAQs
1. What is an Automatic Industrial Shutter Side Motor?
An Automatic Industrial Shutter Side Motor is an electric drive motor mounted on the side of a rolling shutter door for automatic opening and closing. It's an external side-mounted type (also called a chain motor), ideal for heavy-duty, large-scale industrial rolling doors in factories, warehouses, supermarkets, garages, etc. Unlike built-in tubular motors, it offers higher power, greater torque, and handles heavier doors.
2. What's the difference between a Side Motor and a Tubular Motor?
A Side Motor is externally mounted on the door side, suitable for heavy industrial doors (300kg+), with easy maintenance, high torque, and ideal for high-frequency use. A Tubular Motor is built into the roller tube, compact and quieter, mainly for residential or light commercial doors. For heavy or large industrial rolling shutters, Side Motors are recommended due to better load capacity and heat dissipation.
3. How much weight can a Side Motor handle? How do I select the right model?
Common models support 300kg, 600kg, 800kg up to 1000kg, 1500kg, or 2000kg (and higher). Selection depends on actual door weight, width, height, usage frequency, and roller tube diameter—always include a safety margin. Provide door specs to suppliers for precise matching to avoid overload or inefficiency.
4. What are the power requirements for a Side Motor?
Most industrial side motors use AC 220V single-phase (smaller models) or 380V three-phase (larger heavy-duty ones). Some support DC or UPS battery backup. Confirm site power type and capacity before installation, and have a professional electrician wire it.
5. Does the Side Motor support remote control? How does it operate?
Yes. Most come with remotes, wall switches, and upgradable smart controls (APP, timers, linkages). They also include manual chain/crank for power outages. Operation is simple: one-button up/down with adjustable upper/lower limits.
