Automatic Sliding Door Operator with Brushless DC System | HH150
TORQEN Automatic door motor HH150 | Max Door Weight(Single)1*150kgs | (Double)2*140kgs
Type
Door Automation
Warranty
1 Year
Application
Door
Place of Origin
China
Brand Name
TORQEN
Material
Aluminum / Alloy
Designed for modern entrance automation, this brushless DC sliding door operator supports stable performance, intelligent control, safety integration, and energy-saving operation. It is suitable for new construction projects, building upgrades, and OEM.
High-Efficiency Brushless Drive
Equipped with a 24V brushless DC motor to ensure smooth operation, reduced wear, and long service life under frequent daily use.
Intelligent Multi-Mode Operation
Supports automatic, always open, partial open, full lock, and one-way modes, adapting easily to different traffic flow requirements.
Advanced Safety Protection
Built-in anti-clamp function, fire alarm terminal, photocell compatibility, and error message diagnostics enhance operational safety.
Expandable System Integration
Designed with multiple external terminals for keypad, access control, interlock systems, and optional electronic lock or UPS connection.
Product Overview
Smart sliding gate opener with DC drive system, safety protection, and multiple connectivity options. Compatible with access control systems, sensors, and backup power supplies.
Standard Functions
Automatic
Always open
Partial open
Full lock
One way
Self-learning
Self-lock
Error message
Anti-clamp function
Fire alarm terminal
Access keypad terminal
Inter lock function
LED display
Photocell
OEM service
CE certification
Optional Functions
UPS
Electronic lock

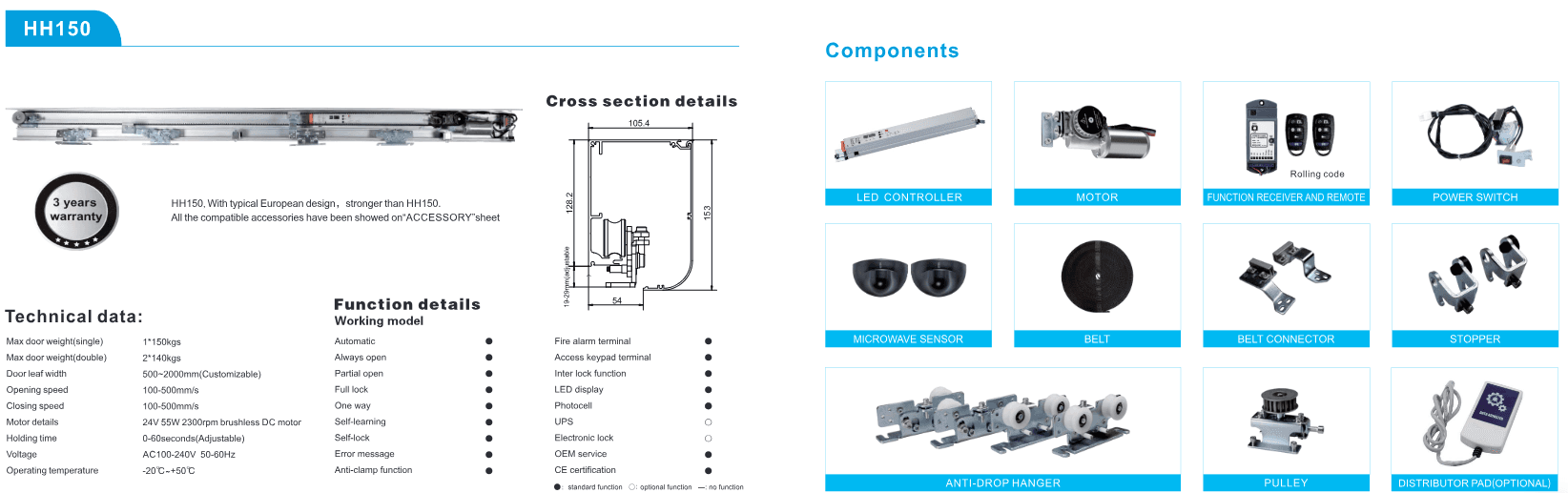

Technical Parameter
Parameter | Specification |
|---|---|
Model | HH-150 |
Max Door Weight (Single) | 1*150kgs |
Max Door Weight (Double) | 2*140kgs |
Door Leaf Width | 500~2000mm (Customizable) |
Opening Speed | 100-500mm/s |
Closing Speed | 100-500mm/s |
Motor Details | 24V 55W 2300rpm brushless DC motor |
Holding Time | 0-60 seconds (Adjustable) |
Voltage | AC100-240V 50-60Hz |
Operating Temperature | -20°C~+50°C |
Gate Safety and Security
Gate Safety Sensors
Safety sensors help protect people and vehicles by stopping the gate from closing when an obstruction is detected.
Manual Disconnect
The manual disconnect feature allows the gate to be opened manually during power outages or system failures.
Safety Reversing
If the gate encounters an obstruction while closing, the reversing system automatically stops and reverses the gate direction.
Quick Close Feature
The quick close function reduces the time the gate remains open, helping prevent unauthorized access and vehicle tailgating.
UL Listed
The gate system is tested to UL 325 safety standards. Additional entrapment protection devices, such as photoelectric sensors or edge sensors, may be required depending on the installation.
Stable & Quiet Performance
Optimized drive structure ensures smooth opening and closing motion, suitable for hospitals, offices, retail stores, and public buildings.
Self-Learning & Easy Commissioning
Automatic stroke learning simplifies installation and reduces setup time for contractors and integrators.
Flexible OEM Customization
Supports customizable door width configurations and OEM services to meet project-specific requirements.
FAQs
1. What is a sliding door operator with brushless DC system?
A sliding door operator with brushless DC system is an automatic door mechanism that uses a brushless DC motor to open and close sliding doors smoothly, quietly, and efficiently.
2.Is this sliding door operator suitable for commercial use?
Yes. It is widely used in commercial and public access environments, especially where smooth operation and high reliability are important.
3.Can this operator be used for residential sliding doors?
Yes. It can also be used for residential projects, especially in villas, apartments, and modern smart home entrance systems.
4.Why choose a brushless DC motor instead of a traditional motor?
A brushless DC motor generally offers better efficiency, lower noise, less wear, and longer durability than traditional brushed motor systems.
5.Is the sliding door operator energy efficient?
Yes. The brushless DC system is designed for energy-saving operation, making it a good choice for projects that require efficient automatic door performance.
