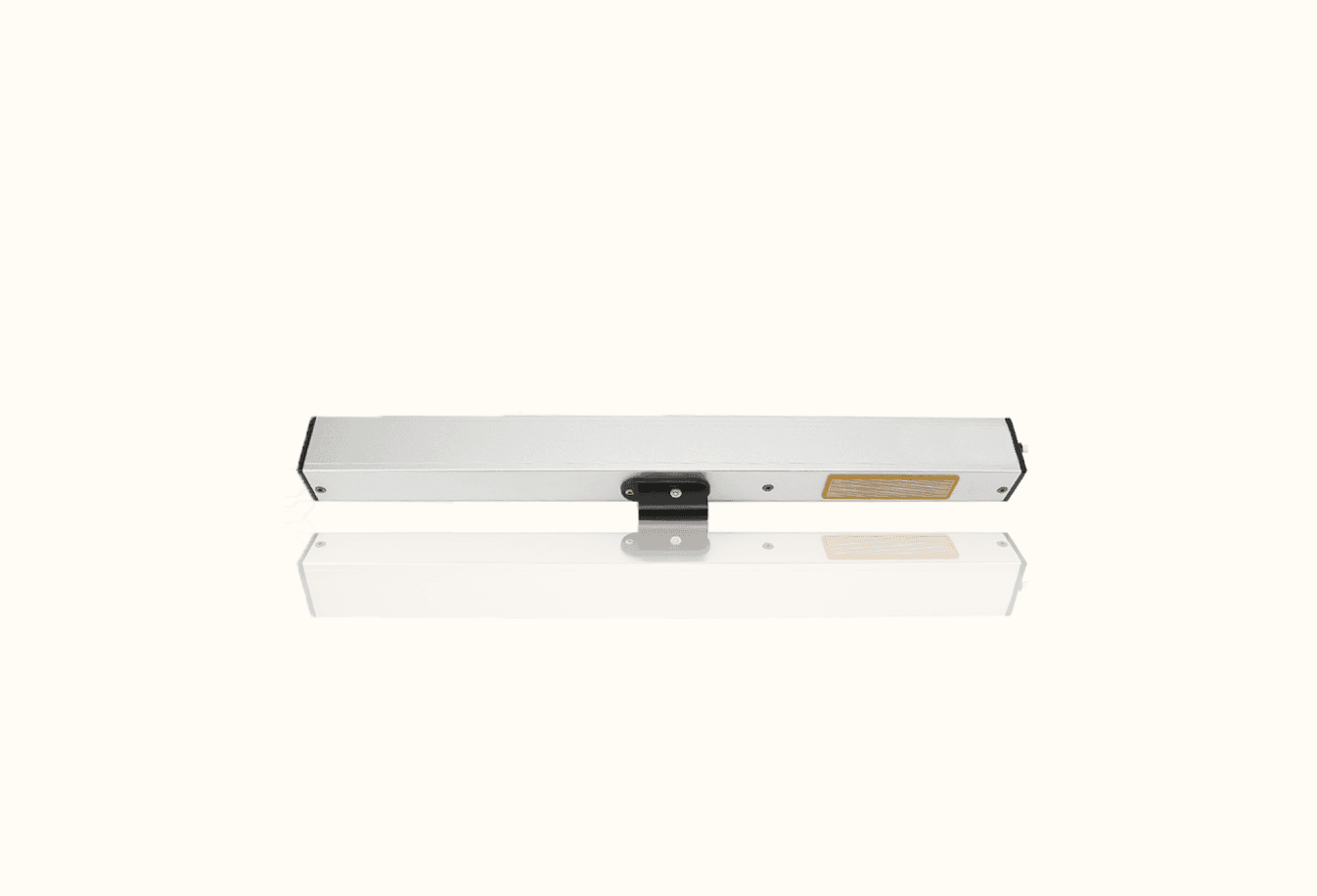

Chain Type Window Motor 593mm–1293mm | 24V DC 400N Standard Electric Window Opener
Product Overview
The chain-type window opener is a reliable and versatile standard electric window opening solution. This series offers various stroke options from 300mm to 1000mm, all powered by a safe 24V DC voltage, delivering a constant and powerful 400N thrust at a smooth speed of 15mm/s. With an IP32 protection rating, it effectively prevents the intrusion of everyday dust and minor water splashes, making it a universal and economical choice for automating window opening and closing in office buildings, residential buildings, and public buildings.
DATA PARAMETERS
Item | Stroke | Voltage | Current | Force | Speed | Protection | Length |
|---|---|---|---|---|---|---|---|
CAT 50-400/300S | 300 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 420mm |
CAT 50-400/400S | 400 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 470mm |
CAT 50-400/500S | 500 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 520mm |
CAT 50-400/600S | 600 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 570mm |
CAT 50-400/700S | 700 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 620mm |
CAT 50-400/800S | 800 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 670mm |
CAT 50-400/900S | 900 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 720mm |
CAT 50-400/1000S | 1000 | 24V/DC | 1.3A | 400N | 15mm/s | IP32 | 770mm |
FAQs
1. What stroke options are available for the CAT 50-400 series?
The CAT 50-400 series offers multiple stroke options ranging from 300mm to 1000mm. Available models include 300S, 400S, 500S, 600S, 700S, 800S, 900S, and 1000S, allowing flexible selection based on window size and ventilation requirements.
2. What is the working voltage of this chain window motor?
All models operate on a safe 24V DC power supply. This low-voltage design makes it suitable for commercial buildings, residential projects, and public infrastructure applications requiring safe electrical standards.
3. What is the maximum thrust force?
The motor delivers a constant 400N thrust force across all stroke models. This ensures stable and reliable window opening performance, even for heavier top-hung or side-hung windows.
4. What is the operating speed?
The operating speed is 15mm/s, providing smooth and controlled window movement without sudden jerks or instability.
5. What is the current consumption?
The rated working current is 1.3A under 24V DC operation. This makes it suitable for integration into building automation and centralized window control systems.
6. What is the protection rating?
The product features an IP32 protection rating. It effectively prevents intrusion from solid objects over 2.5mm and protects against light water splashes, making it suitable for indoor and semi-covered installations.
