DP Automation Shutter Central Motor with Electronic Brake 180NM-260NM | High Performance DC Motors
Product Overview

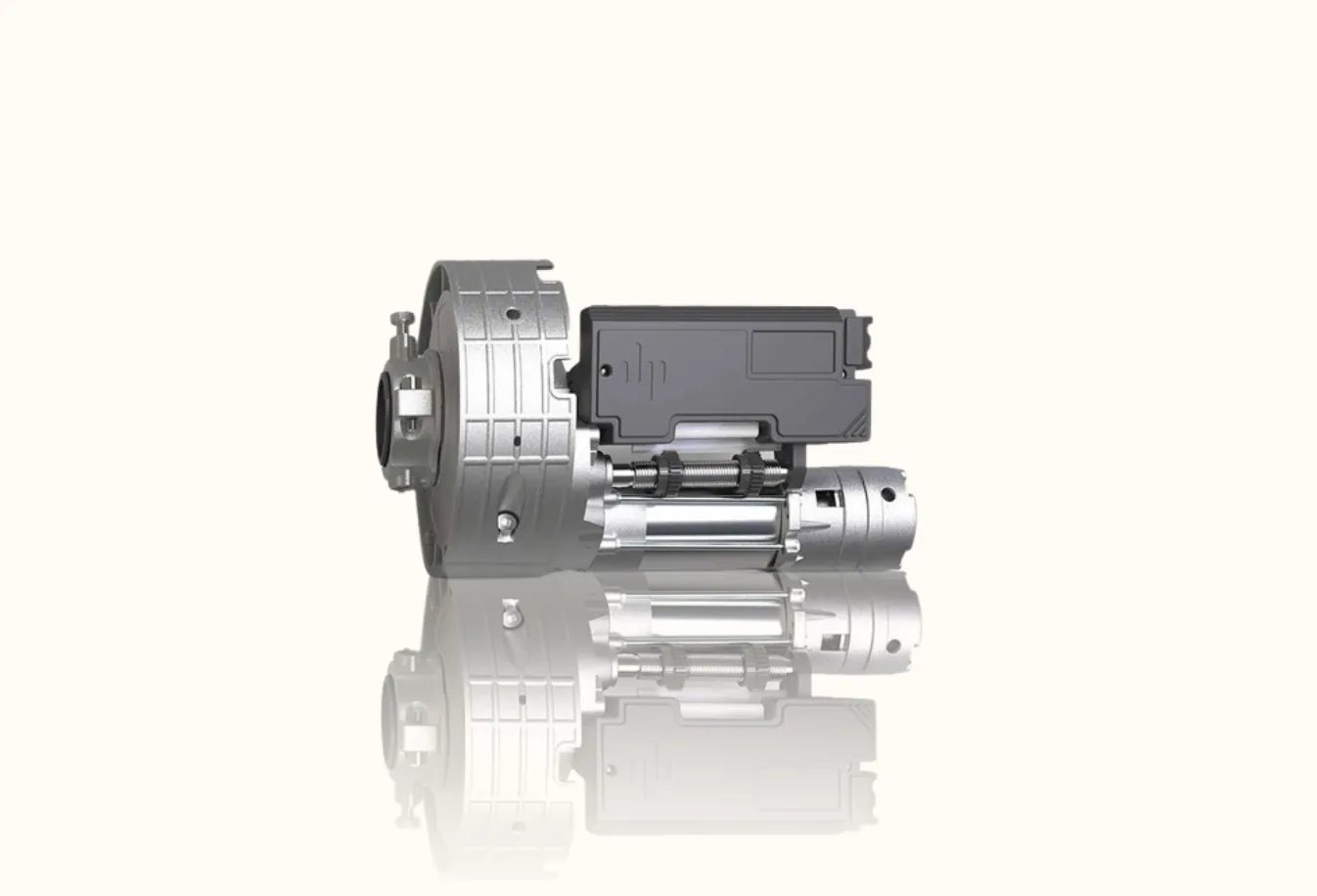

Discover the DP Automation Shutter Central Motor with Electronic Brake (180NM-260NM). Engineered for precision and durability, this high-performance motor is perfect for automated shutter systems in industrial applications.
Key attributes
Project Solution Capability | Graphic design | Design Style | Traditional |
|---|---|---|---|
Main Material | Aluminum / Alloy | After-sale Service | Online technical support, Free spare parts, Return and… |
Application | Garage | Warranty | More than 5 years |
Lifting | 180KG-260KG | Place of Origin | Zhejiang, China |
Brand Name | DEVELOP | Model Number | BOLT-AS |
Tube Rolling | ф60** | Model | Automatic gate roller |
Torque | 180Nm-260Nm | R.P.M | 10 |
Limit switch | 6m | Cut out temperature | 4min |
Power Absorbed | 590W-800W | Consumption | 2.56A-3.48A |
Weight | 8~9kg | PULLEY | ф200** |
Specification
Mechanic limit with Low noise
•adapter for 60mm / 200mm,torque range from 180nm-260nm, 110V/60Hz-230V/50Hz
•electromagnetic brake and built-in receiver type is optional
•Easy installation
•Motor Color: Normal one
•Motor Voltage: 110V-230V follow with customers' demands
FAQs
1. What is the lifting capacity of this shutter central motor?
The motor has a lifting capacity of 160KG, making it suitable for a wide range of medium to heavy-duty industrial and commercial rolling shutters.
2. How does the electronic brake function and what are its benefits?
The integrated electronic brake provides instant and secure stopping of the shutter at any position. This prevents unwanted movement, enhances safety, and ensures the shutter remains locked when closed, offering protection against unauthorized access.
3. What is the torque rating of the motor?
This motor delivers a powerful 180NM (Newton-meters) of torque. This high torque ensures smooth and reliable operation, even under a heavy load.
4. Is this motor suitable for both commercial and industrial applications?
Yes, the robust design and high lifting capacity of the DP 160KG central motor make it an ideal solution for a variety of applications, including warehouse shutters, garage doors, and commercial storefronts.
5. Does this central motor include a manual override feature?
Yes, in the event of a power outage, the motor is equipped with a manual release mechanism. This allows for easy and safe manual operation of the shutter.
