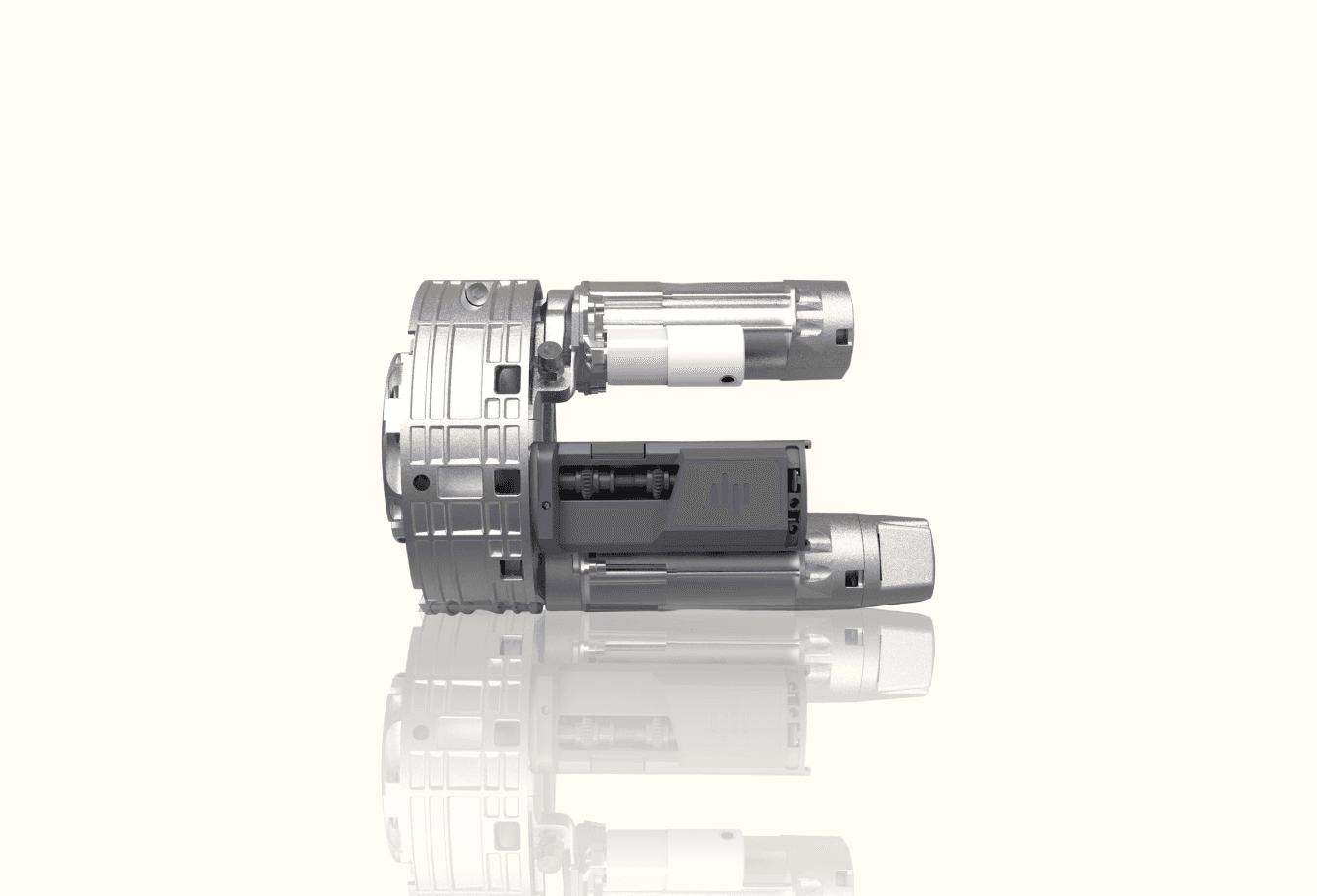

DP Automation Shutter Central Motor with Electronic Brake 450NM |101mm\240mm|Double Motor
Product Overview
The HUMMER PLDMPE is an central motor mid-drive motor designed for high-performance applications. Featuring shot blasting and precision machining, it boasts exceptional structural strength and heat dissipation capabilities. The core transmission system has been upgraded to a three-stage planetary gear reduction mechanism, combined with powder metallurgy high-frequency hardened gears and powder metallurgy travel sliders, resulting in lower operating noise, higher transmission efficiency, and more precise positioning control.
Technical Parameters
Torque: 450 Nm
R.P.M: 8
Limit Switch Travel: 6 m
Thermal Cut-Out: 4 min
Power Consumption: 1360 W
Current: 5.9 A
Lifting Capacity: 300 kg
Tube Rolling: Ø102 mm
Pulley: Ø240 mm
Voltage: 110–230V / 50–60Hz
FAQs
What applications is this 450NM shutter central motor designed for?
This motor is designed for heavy-duty industrial roller shutters and large commercial door systems. Its double motor mid-drive structure ensures stable operation under high load conditions.
What torque and lifting capacity does this motor provide?
The motor delivers a rated torque of 450 Nm and supports a lifting capacity of up to 300 kg, making it suitable for wide and heavy roller shutter doors.
What power supply and electrical specifications are supported?
The motor operates on 110–230V / 50–60Hz, with a power consumption of 1360 W and a rated current of 5.9 A, allowing flexible installation across different markets.
What is the operating speed and maximum travel distance?
It runs at a controlled speed of 8 RPM, ensuring smooth movement, and supports a maximum limit switch travel of up to 6 meters for tall industrial shutters.
Does the motor include thermal and safety protection?
Yes. The motor is equipped with thermal cut-out protection that activates after approximately 4 minutes of continuous operation, helping prevent overheating and improve reliability.
What shaft and pulley sizes are compatible with this motor?
The motor is designed for Ø102 mm tube rolling and a Ø240 mm pulley, ensuring compatibility with standard industrial roller shutter drum systems.
