Best Industrial Sectional Door Motor Manufacturer | Commercial Door Operator
Type
Door Automation
Warranty
1 Year
Application
Commercial Door
Place of Origin
China
Brand Name
CHINA-DEVELOP
Material
Villa
Product Overview
The PARAMETER.LION50 Industrial Sectional Door Motor is designed for reliable automation of medium and heavy-duty sectional doors. Manufactured by China Develop, a professional industrial door motor factory, it features durable construction, soft start technology, and built-in safety protection for stable, quiet performance in warehouses, factories, and logistics facilities.
Applications

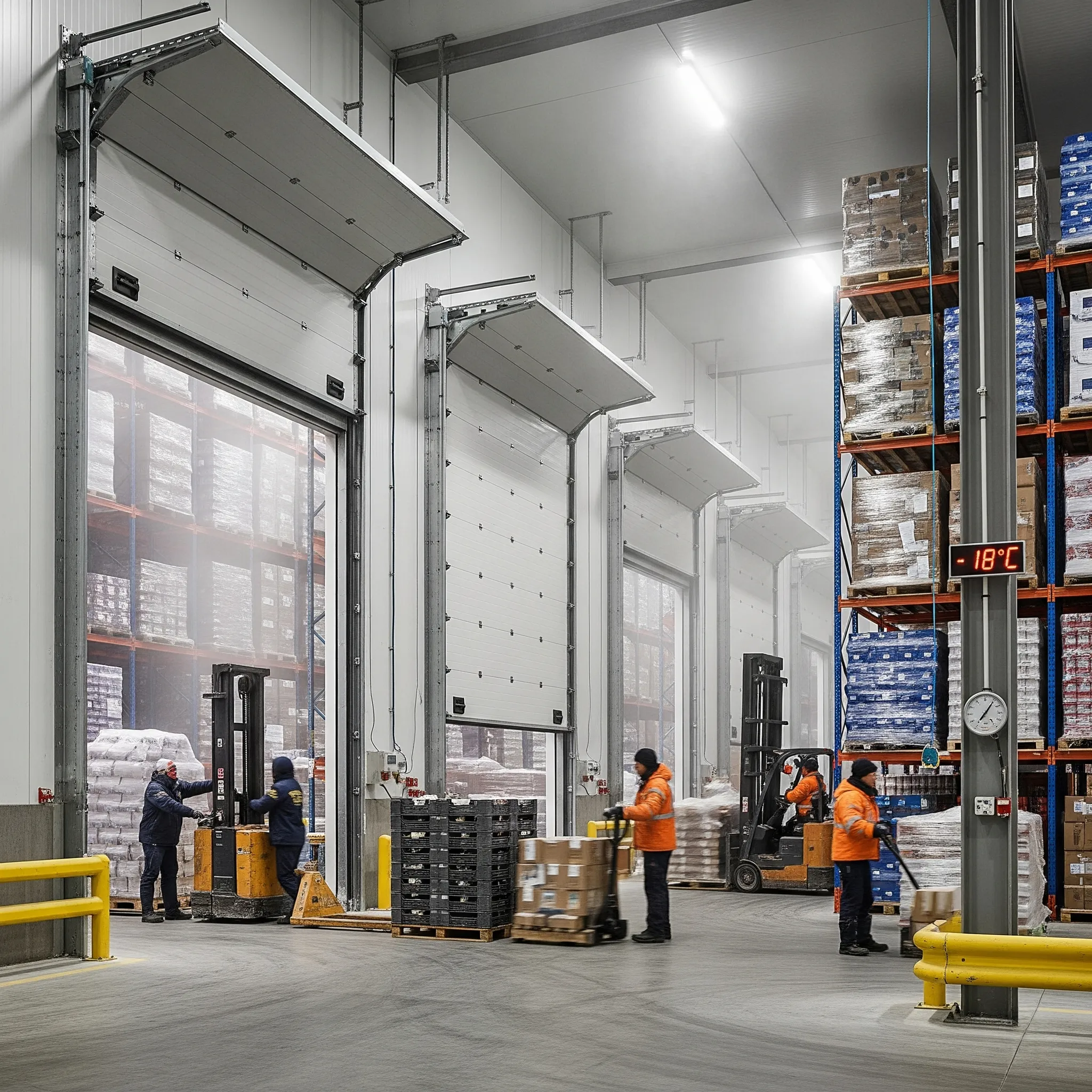

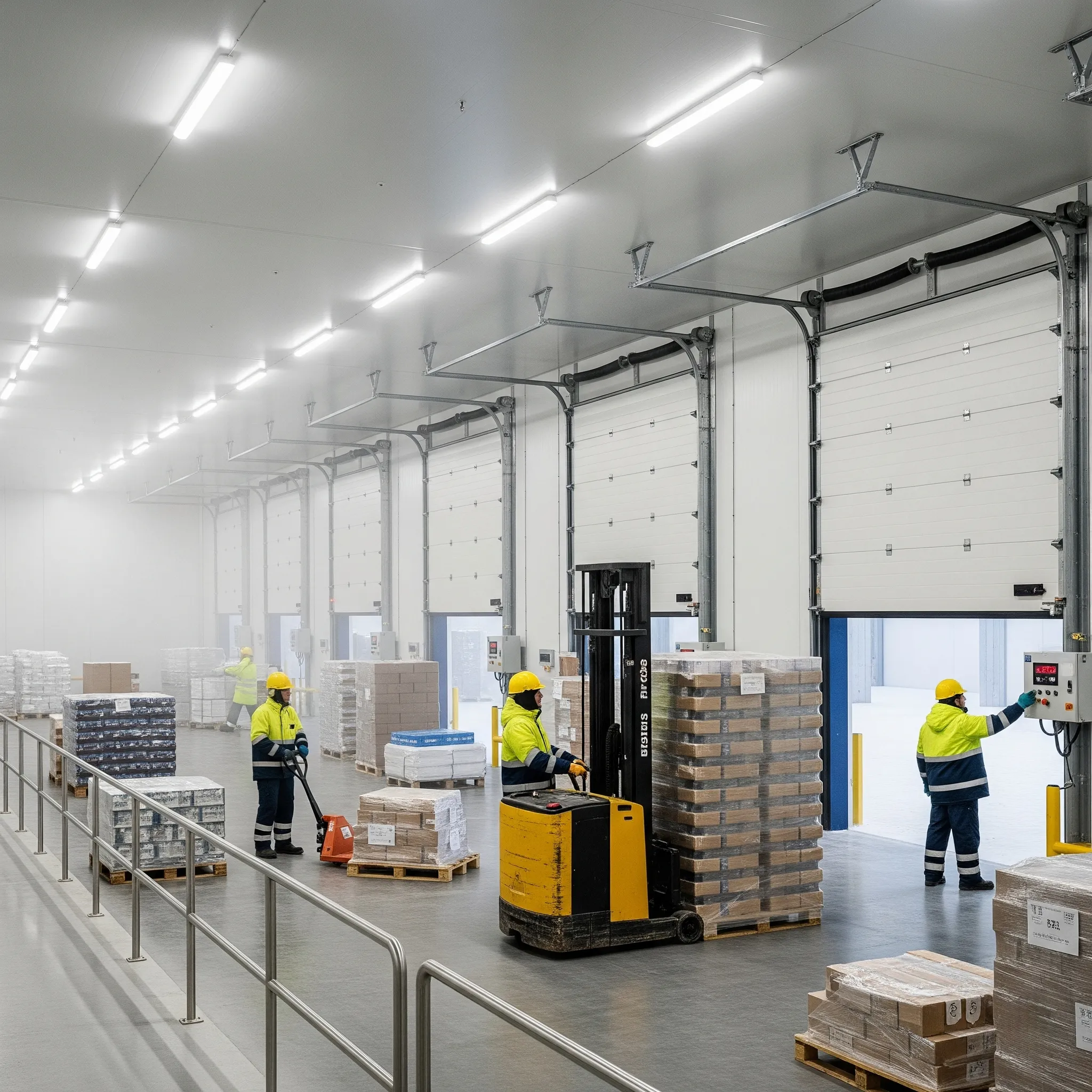

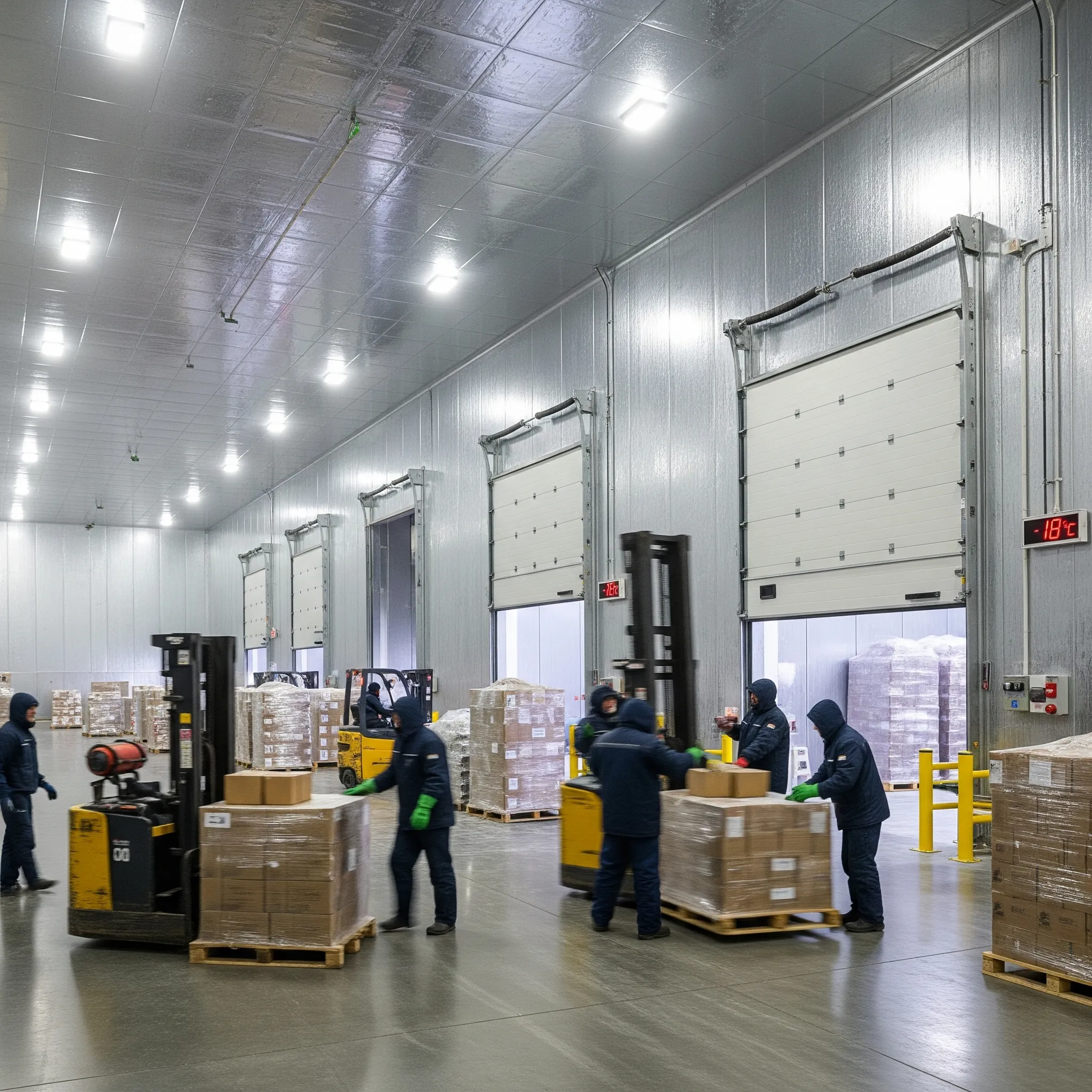

Suitable for factory doors, warehouse doors, logistics center doors, commercial buildings, and parking facility entrance systems.
Supported Door Types

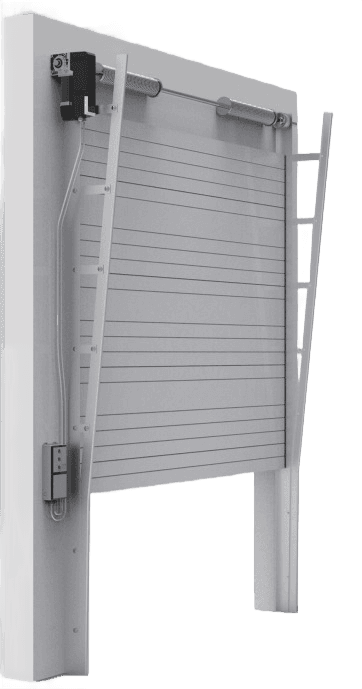

Compatible with insulated sectional doors, industrial overhead doors, aluminum panoramic doors, and commercial garage door systems.
Supported Door Specifications
Door Size: Up to 18 m²
Door Weight: Up to 234 kg
Door Height: Up to 7.0 m
Designed for stable operation in commercial and industrial door automation applications.
Key attributes
Maximum Output torque | 50Nm | Rated output torque | 35Nm |
|---|---|---|---|
Input voltage | 110/220(1+10%)V60Hz/50Hz 380v-420V | Control system | 24V DC |
Motor power | 0.45 Kw | Static holding torque | 400Nm |
Max. output speed | 24rpm-32rpm | Operation limit turns(limit travel) | I5 turns of output shaft |
Sleeve shaft diameter(standard) | φ25.4mm | Keyway size | 6.3mm |
Thermal protection temperature | 105℃ | Continuous sound pressure level | <70dB |
Max. cycles per hour | 20 | IP protection class | IP54 |
Temperature range | -20℃ /+ 60℃ | Standard kit | Drive motor&wired control box |
Chain hoist module | including | Optional sensing edge set(TX and RX) | Optional |
Industrial Packaging & Global Delivery
Packaging Details | Cartons/pallets | Port of dispatch | Shanghai/ningbo |
|---|---|---|---|
Selling Units | Single item | Single package size | 42X21X21 cm |

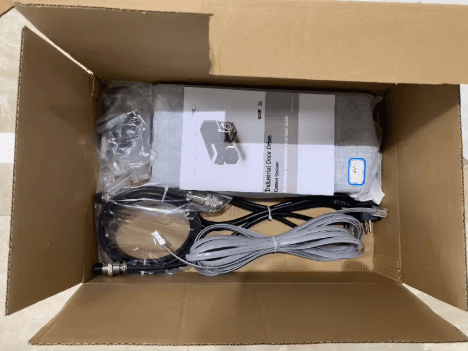

Single gross weight | 13.000 KG | Packaging examples |  |
No active closing edge protection necessary for doors up to 14 m²
Soft-Start and Soft-Stop protect the door and reduce repair costs
Standard sectional doors with cylindrical cable drum |   | ||||
|---|---|---|---|---|---|
Door size(max.) | 22 m² | Door weight(max.) | 286 Kg |  | |
Vertical lift sectional doors with conical cable drum | |||||
Door size(max.) | 18 m² | Door weight(max.) | 234 Kg |  | |
High lift sectional doors with cylindrical-conical cable drum | |||||
Door size(max.) | 22 m² | Door weight(max.) | 286 Kg |  | |
FAQs
1. What applications is this motor suitable for?
It is suitable for warehouses, factories, workshops, logistics centers, loading bays, and commercial buildings.
2.Is this motor suitable for heavy-duty sectional doors?
Yes. It is designed for industrial sectional doors that require strong lifting power and stable operation.
3.Can this motor be used for high-frequency operation?
Yes. Industrial sectional door motors are generally built for frequent daily use in demanding environments.
4.Does the motor support automatic control?
Yes. It can usually work with control panels, wall switches, remote controls, and access control systems.
5.Is this motor suitable for warehouse doors?
Yes. It is widely used for warehouse sectional doors and other industrial entrance systems.
