China Industrial Sectional Door Motor Factory | Custom Side Motors
Type
Door Automation
Warranty
1 Year
Application
garage
Place of Origin
China
Brand Name
DEVELOP
Material
Villa
Product Overview

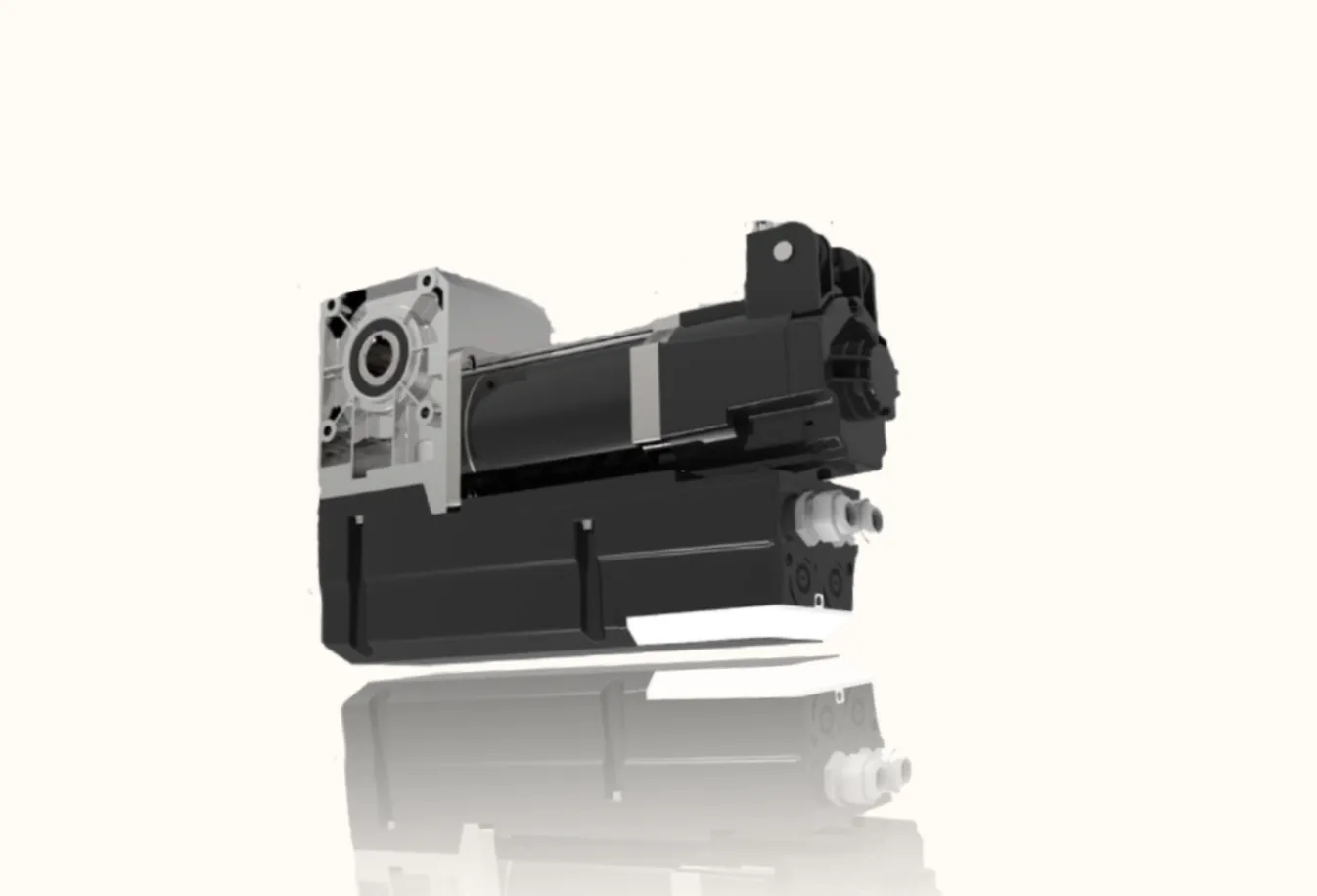

The industrial sectional door motor with soft start technology is designed for smooth, quiet, and reliable operation. Built for heavy-duty applications, it ensures stable performance, reduces wear on doors, and delivers long-term durability for industrial environments.
Key attributes
Maximum Output torque | 70Nm | Fated output torque | 50Nm |
|---|---|---|---|
Input voltage | 110/220(1+10%)V60HZ/50Hz 380V-420V | Control system | 24V DC |
Motor power | 0.55Kw | Static holding torque | 400Nm |
Max. output speed | 24rpm-32rpm | Operation limit turns(limit travel) | 15 turns of output shaft |
Sleeve shaft diameter(standard) | φ25.4mm | Keyway size | 6.3mm |
Thermal protection temperature | 105℃ | Continuous sound pressure level | <70dB |
Max. cycles per hour | 20 | IP protection class | IP54 |
Temperature range | -20℃ /+ 60℃ | Standard kit | Drive motor&wired control box |
Chain hoist module | including | Optional sensing edge set(TX and RX) | Optional |
Packaging and delivery
Packaging Details | Cartons/pallets | Port of dispatch | Shanghai/ningbo |
|---|---|---|---|
Selling Units | Single item | Single package size | 42X21X21 cm |
Single gross weight | 13.000 KG | Packaging examples |  |
FAQs
1. What are the key differences between a Jackshaft motor and a standard trolley motor for industrial doors?
Industrial sectional doors typically use Jackshaft motors (side-mounted). These drive the torsion bar directly, saving overhead space and allowing for high-lift or vertical-lift tracks. Trolley motors are usually reserved for standard-lift residential or light commercial doors where ceiling space is not an issue.
2.How do I choose the correct motor torque (Nm) for a heavy industrial sectional door?
The torque requirement depends on the door's weight and the drum diameter. For most Chinese industrial motors, a 50Nm to 70Nm motor is suitable for doors up to 400kg, while 100Nm to 150Nm motors are used for extra-large or "oversized" sectional doors. Always ensure the motor's lifting capacity exceeds the door weight by at least 20% for safety and longevity.
3.Do Chinese industrial door motors support 3-phase (380V) or single-phase (220V) power?
Most manufacturers offer both. 3-phase (380V) is preferred for high-frequency industrial use as it runs cooler and is more durable. Single-phase (220V) is available for facilities without industrial power, often utilizing frequency inverter technology to provide soft-start and soft-stop functions.
4. What safety features are standard with these industrial operators?
Quality Chinese industrial motors comply with international safety standards. Essential features include an emergency manual chain (for power outages), anti-fall safety brakes, and ports for safety photocells or sensing edges that stop the door if an obstruction is detected.
5. Are the control boards compatible with international remote frequencies and smart systems?
Yes. Most exporters provide 433.92MHz rolling code receivers, which is the global standard. Additionally, many modern Chinese controllers now include dry contact ports, allowing easy integration with PLC systems, WiFi smart hubs, or warehouse management software.
