AC Industrial Sectional Door Motor Manufacturer | IDS Series

TORQEN Industrial Sectional Door Motor | PARAMETER.IDS

Type

Door Automation

Warranty

1 Year

Application

Sectional Garage Door

Place of Origin

China

Brand Name

TORQEN

Material

Villa

PARAMETER.IDS industrial sectional door motor operates on 380V AC with rated power from 800W to 1500W. Featuring four torque levels from 200–650 N·m, IP54 protection, and low noise ≤55dB, it delivers reliable performance for high-frequency industrial door applications.

Reliable Performance

Ensures stable, long-lasting operation for industrial doors.

Smooth Operation

Provides quiet, precise, and consistent movement under heavy loads.

Enhanced Safety

Built-in safety mechanisms protect users and equipment.

Easy Installation

Compact design and standardized parts for quick setup and maintenance.

Product Overview

With a rated power range of 800W-1500W, it meets the needs of industrial doors of different sizes. Utilizing 380V AC industrial voltage, it offers four levels of starting torque from 200 N.M to 650 N.M, ensuring excellent performance even under frequent opening and closing conditions. The entire series of motors is IP54 protected and features low noise operation (≤55dB), improving operational efficiency while creating a more comfortable industrial environment.

Reliable

External Control Unit
Separate control unit design ensures easier installation, maintenance, and system accessibility.
Emergency Hand Chain
Allows convenient manual door operation from ground level during power outages or emergencies.
Digital Limit Switch
Equipped with an absolute value encoder for accurate and reliable travel limit positioning.
High Duty Cycle Performance
Supports continuous duty operation up to 25 minutes and intermittent periodic duty at 50%, ideal for high-frequency industrial use.

Safe & Secure

Five Relay Outputs for Additional Functions
Supports integration with infrared photocells, safety edges, alarm lamps, external push-button switches, and wicket door systems for enhanced functionality and safety.
Auto Close Function
Automatic closing can be enabled when a safety protection system is installed.

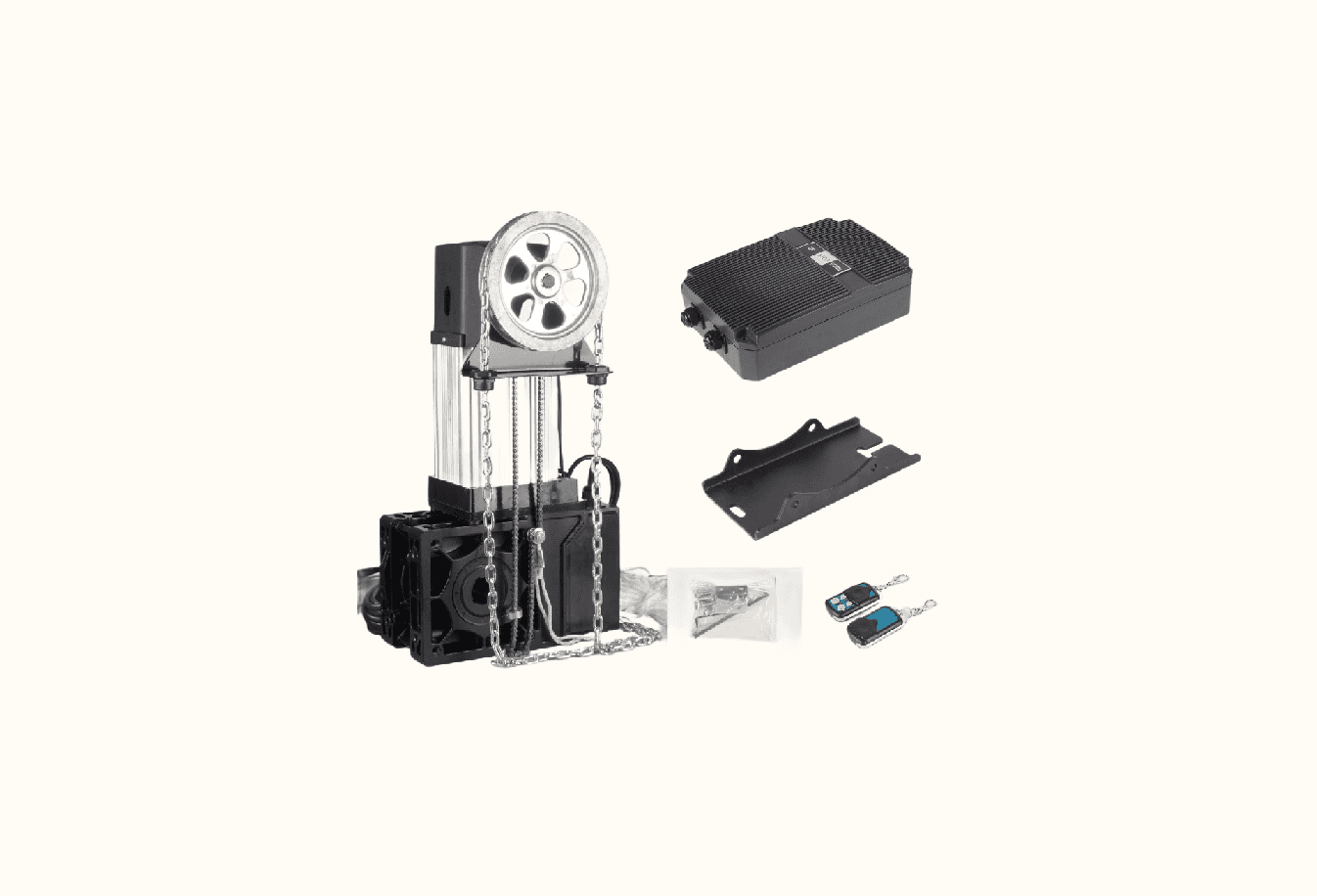

Accessories Incluede

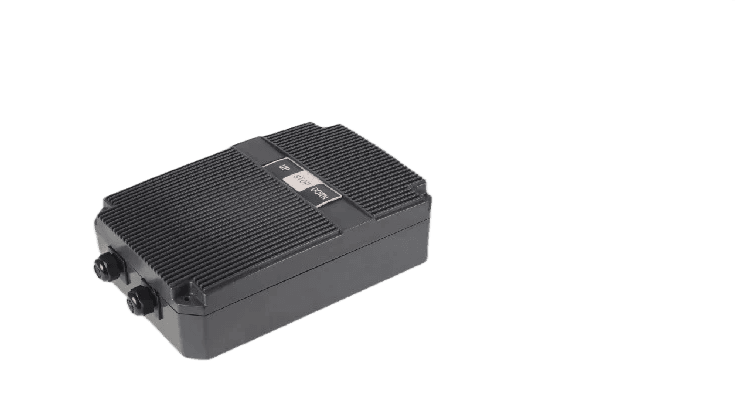

EXTERNAL CONTROL UNIT

with five relay outputs for Addtional funtions

2 REMOTES

433.92MHz Rolling code with security

Get a Quote

Key attributes

TYPE (AC380V)	GYM200S-2	GYM350S-2	GYM500S-2	GYM650S-2
Rated Power	800W	1000W	1200W	1500W
Starting Torque	200N. m	350N. m	500N. m	650N. m
No-load Operation Time	25min	25min	25min	25min
Thermal Protection Temp	120°C	120°C	120°C	120°C
No-Load Rotating Speed	12r/min	12r/min	12r/min	8r/min
Type of Lubricate	Oil Immerged	Oil Immerged	Oil Immerged	Oil Immerged
Noise	≤55dB	≤55dB	≤55dB	≤55dB
Maxi Limiting Distance	20 rounds	20 rounds	20 rounds	20 rounds
Hole Diameter (Output Shaft)	Φ40/32/35mm	Φ40/32/35mm	Φ40/32/35mm	Φ40/32/35mm
Use Environment	-20°C~+45°C	-20°C~+45°C	-20°C~+45°C	-20°C~+45°C
Duty Cycle	S2 20% / S1	S2 20% / S1	S2 20% / S1	S2 20% / S1
Protection Classification	IP54	IP54	IP54	IP54

Reliable Performance

Industrial door motors ensure stable operation with dependable power output, reducing the risk of failures and keeping doors running smoothly.

Smooth & Stable Operation

Designed for consistent torque and precision, they provide quiet, efficient, and steady movement even for heavy-duty industrial doors.

Safety & Durability

Built with robust materials and tested to strict standards, industrial door motors deliver long-term reliability, safety, and durability.

FAQs

1. What power and torque options are available in the PARAMETER. IDS series?

The PARAMETER.IDS series offers four AC38oV models with rated power from 80oW to 150oW and starting torque from 200N:m to 650 N:m, allowing precise matching for industrial sectional doors of different sizes and weights.

2. Which models are included in the PARAMETER. IDS industrial door motor range?

The series includes GYM200S-2, GYM350S-, GYM500S-2, and GYM650S-2, each corresponding to increasing power andtorque levels for medium to heavy-duty industrial door applications

3. Is the motor suitable for high-frequency industrial operation?

Yes. All models support S2 20%/S1 duty cycle with a no-load operation time of 25 minutes, making them suitable for bothintermittent and continuous industrial door usage.

4. What protection and safety features are built into the motor?

The motors feature IP54 protection, thermal protection at 120°c, and oil-immersed lubrication, ensuring reliable operation, heatresistance, and long service life in demanding industrial environments.

5. How noisy is the PARAMETER.IDS sectional door motor during operation?

All models operate at a low noise level of 55 dB, helping maintain a quieter and more comfortable working environment infactories, warehouses, and logistics facilities.
