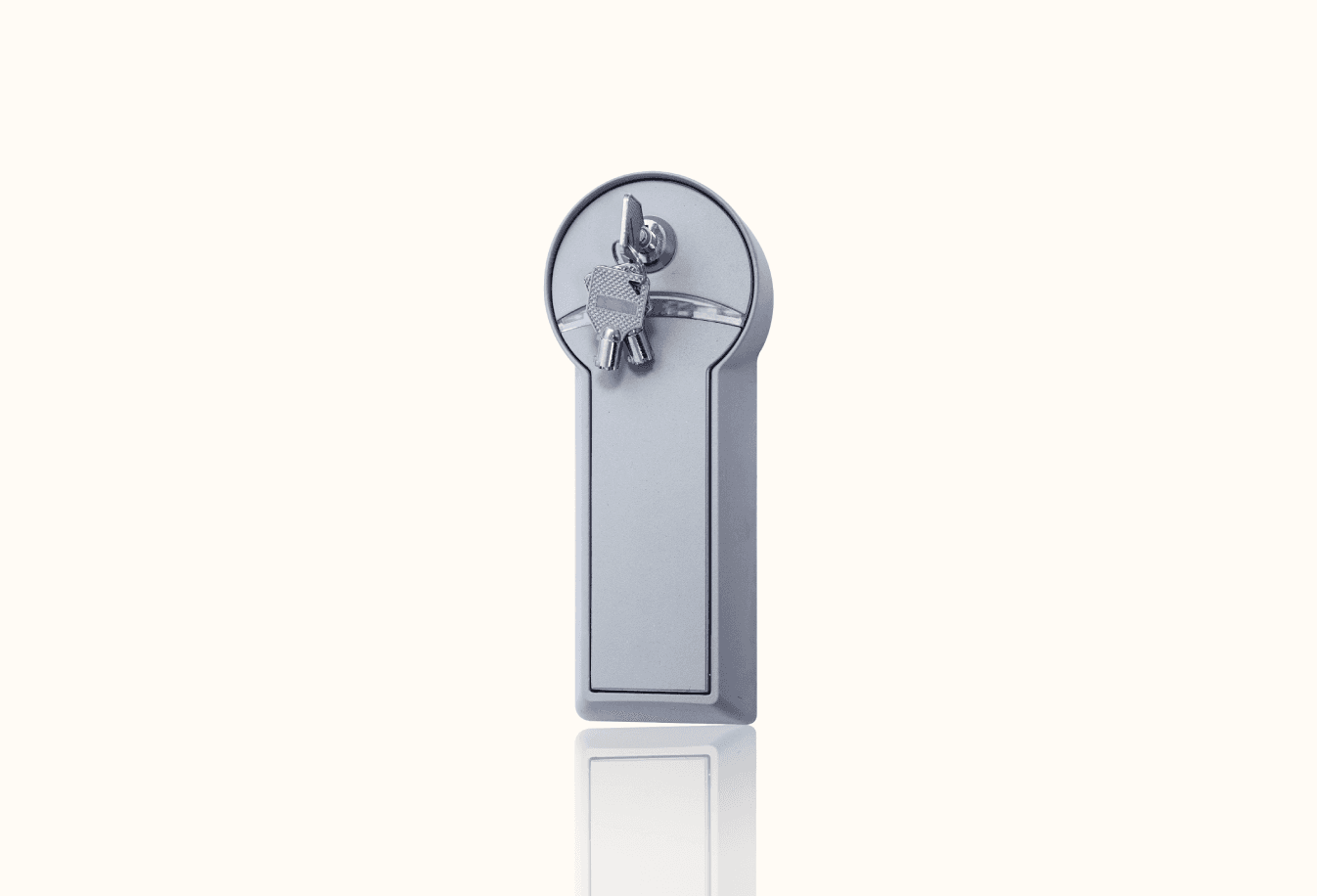

Key Selector 6A with Brass Cylinder | Heavy-Duty Mechanical Combination Control Switch
Product Overview
This heavy-duty mechanical combination lock box is designed for applications requiring superior physical protection and prominent installation identification. Its large, robust casing is cast from durable zinc alloy, providing excellent impact resistance and tamper-proof capabilities. The internal mechanism features a reliable copper lock cylinder, supporting up to 1000 adjustable mechanical combinations for flexible keyless security management. Furthermore, its 16A load capacity and silver-plated contact terminals ensure stable and efficient electrical control, making it an ideal physical and electrical control node for outdoor cabinets, heavy equipment, or high-security areas.
Key attributes
Model: 16019-6A
Dimensions: L218 x W75 x H80 mm
Combinations: 1-1000 combinations available
Rated Load: Maximum operating current: 16A
Insulation Resistance: 100 MΩ Min
Dielectric Strength: 1500 VAC(50-60HZ)
Materials: Zinc alloy material, Brass cylinder, Metal Keys, Powder coating zinc alloy plate, Silver plated contacts and terminals
FAQs
1. What applications is the Key Selector 6A designed for?
This heavy-duty mechanical combination lock box is designed for outdoor cabinets, heavy equipment, industrial control panels, and high-security areas requiring both strong physical protection and reliable electrical control.
2. How secure is the mechanical combination system?
The selector supports 1–1000 adjustable mechanical combinations, enabling keyless access control while reducing risks related to key loss or unauthorized duplication.
3. What electrical load can this model handle?
Model 16019-6A supports a maximum operating current of 16A, making it suitable for controlling motors and high-load electrical circuits in industrial environments.
4. How does the product ensure durability and tamper resistance?
The robust zinc alloy housing and powder-coated panel provide excellent impact resistance, corrosion protection, and tamper-proof performance, ideal for harsh or outdoor installations.
5. What safety and electrical performance standards does it meet?
The product provides insulation resistance of at least 100 MΩ and dielectric strength of 1500 VAC (50–60Hz), ensuring safe electrical isolation and stable operation.
6. Is installation suitable for industrial control systems?
Yes. With large dimensions (218 × 75 × 80 mm) and silver-plated terminals, the selector allows easy wiring, clear identification, and reliable integration into industrial control cabinets.
