Receiver Series B1/B1L 1200W | Motor Control Receiver for Shutters & Automation Systems
Product Overview
Receiver Series B1 is a reliable motor control board designed for stable and efficient operation in automation systems. It ensures consistent signal control and smooth performance for roller shutters, window motors, and related equipment.
Key attributes
The B1 board is compatible with
R03
R09
R20
R36
external housings, providing flexible installation options and easy system integration. Its modular design makes it a practical and scalable solution for professional control applications.
Compatibility & Configuration

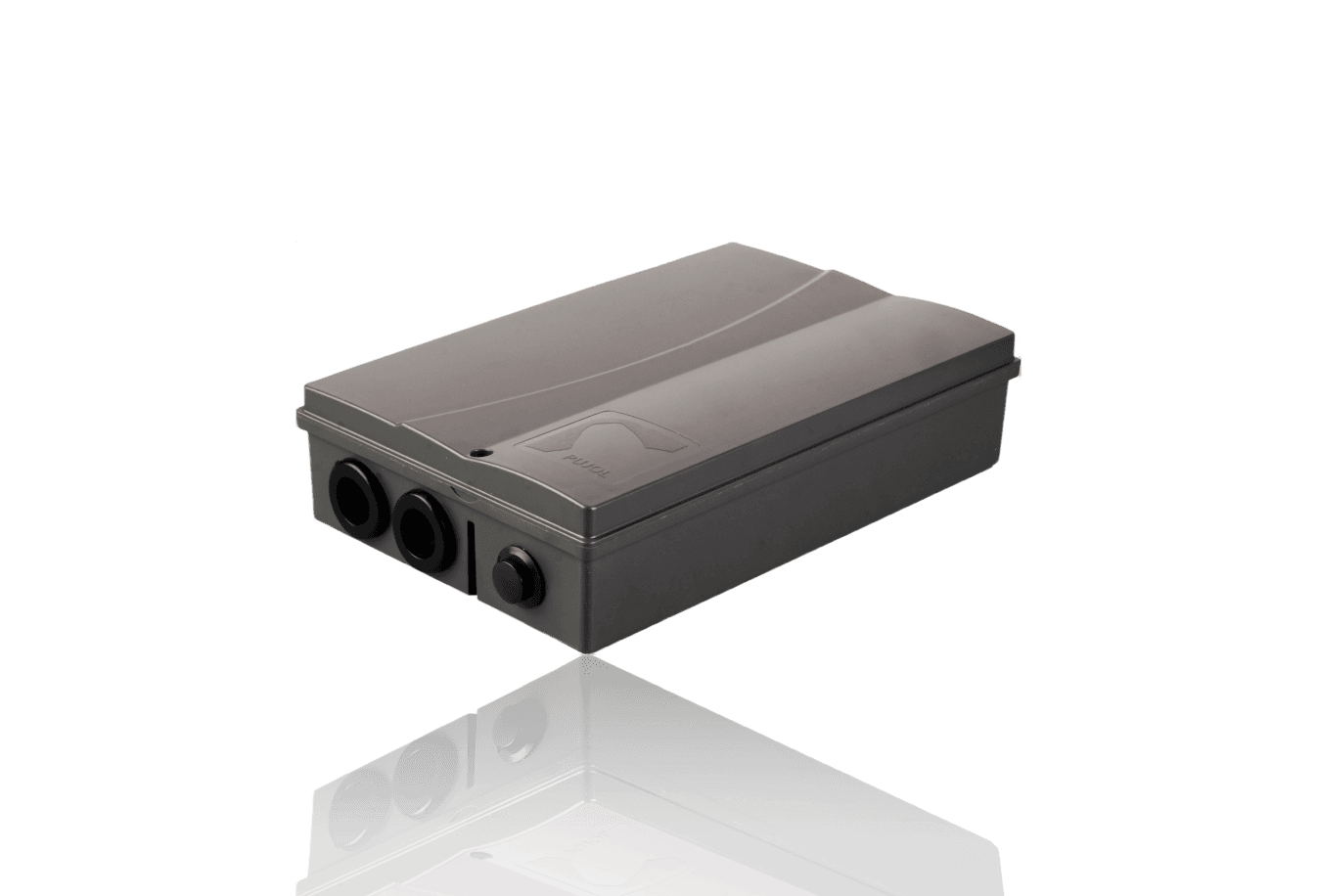

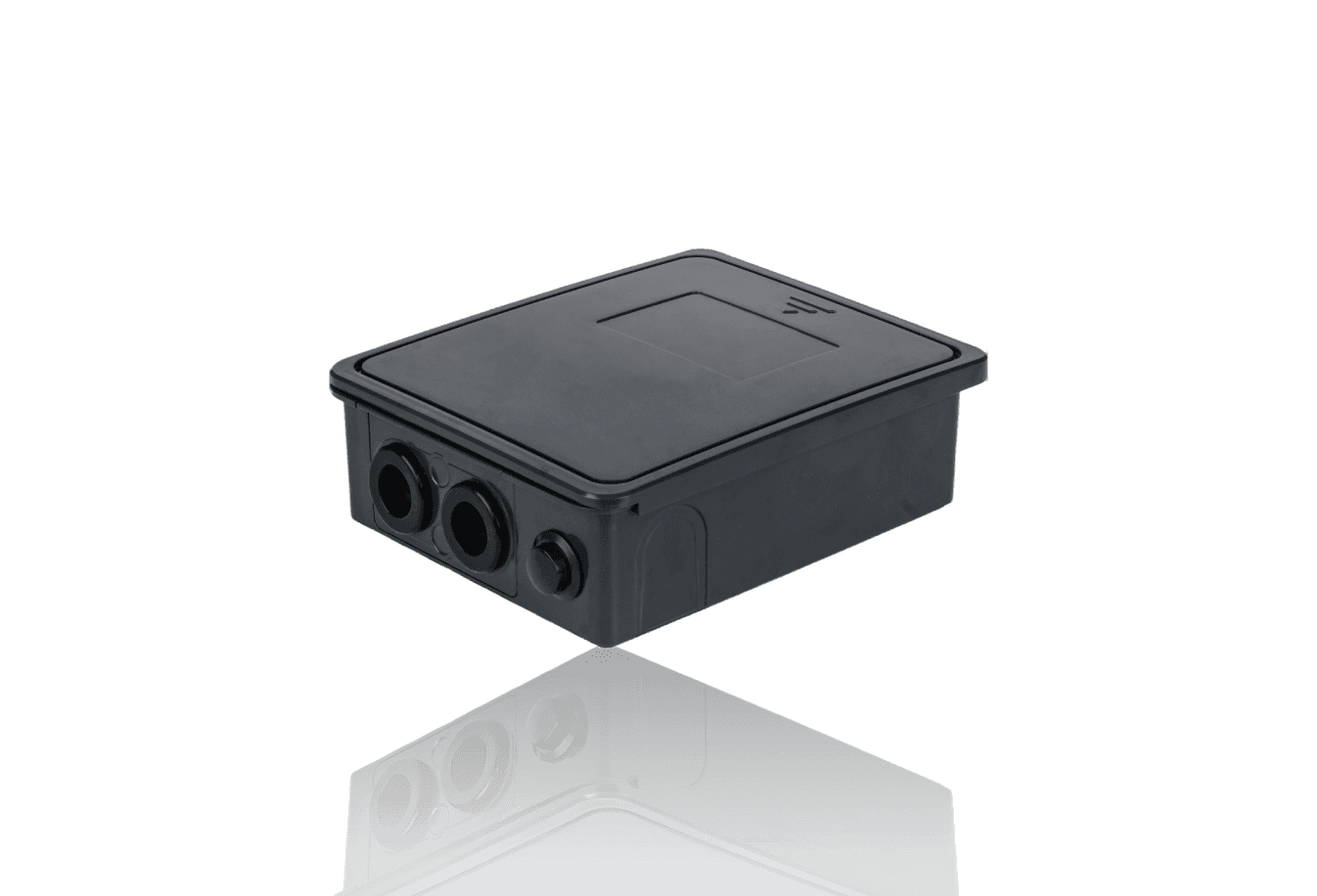

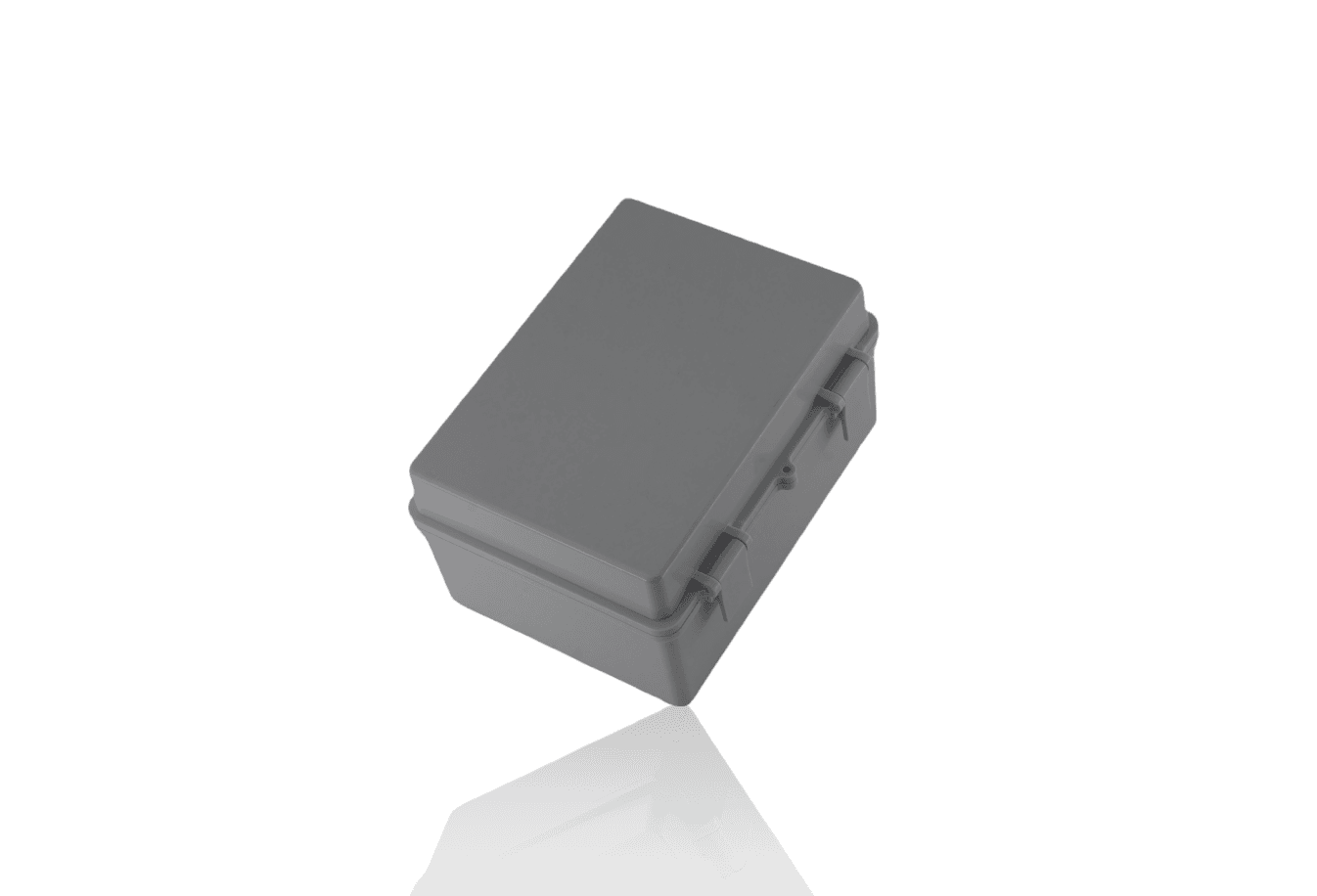

The B1 control board is designed for flexible integration with multiple external housing options, including R03, R09, R18, R20, and R36, allowing it to adapt to different installation requirements and system layouts.

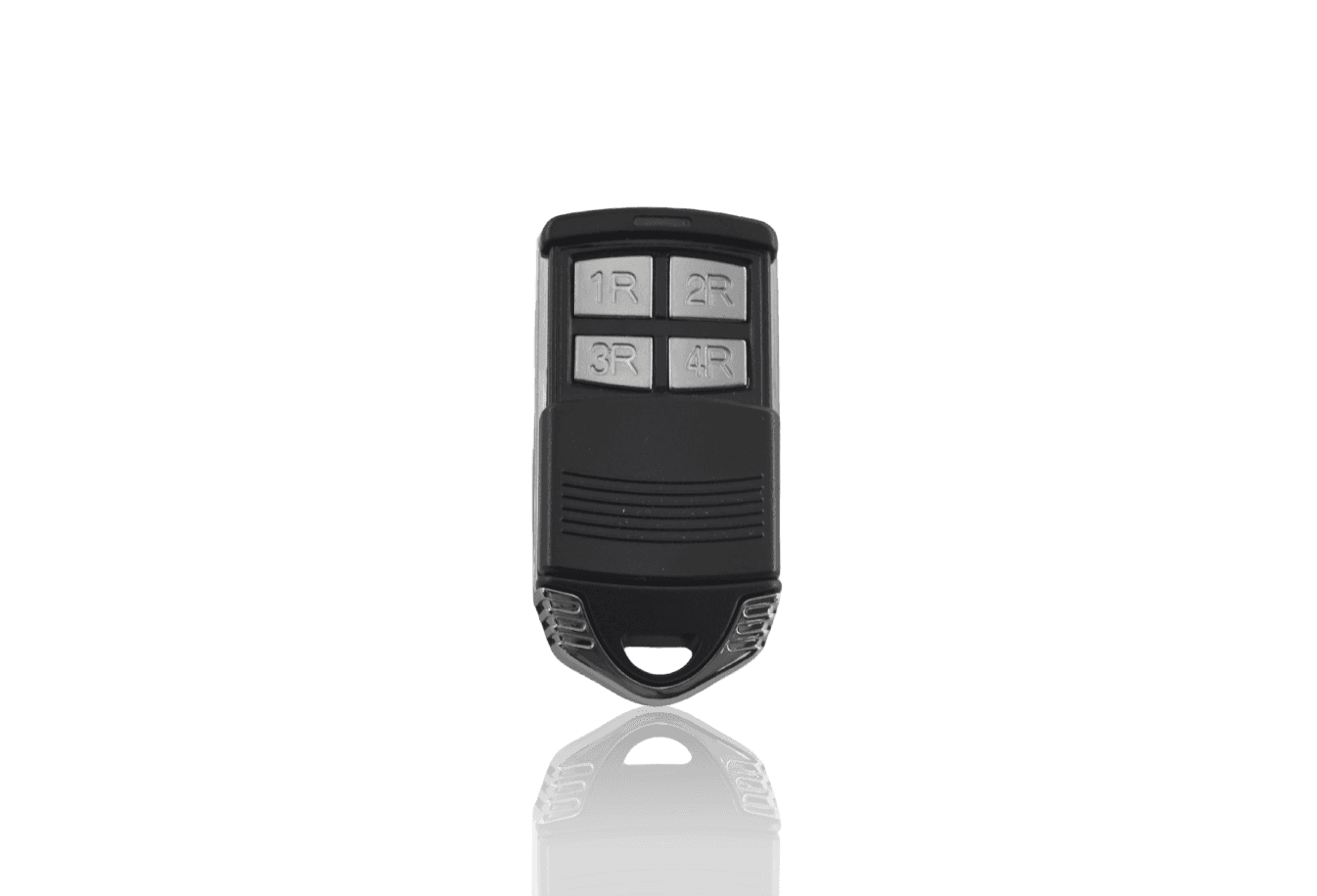

For optimized performance, specific housing models are matched with dedicated remote controllers:
R03 – compatible with Remote Controller 006
R09 – compatible with Remote Controller 017
R20 – compatible with Remote Controller 001
R36 – compatible with Remote Controller 039
This structured compatibility ensures stable signal transmission, simplified configuration, and efficient system deployment across various automation applications.
DATA PARAMETERS
Parameter | Specification |
|---|---|
Input Voltage | 230/110 VAC |
Max Power | 1200 W |
Auxiliary Voltage | 12 VAC |
Frequency | 433 MHz |
Reception Protocol | PJ301 |
Remote Control Quantity | 60 |
Quantity Overflow Tip | Support (●) |
Reception Distance | 70 m |
Alarm Light | AC Thyristor |
Emergency Stop | Not supported (-) |
Infrared Protection | Normally closed, no short circuit required |
Safety Edge Protection | Support (●) |
Obstruction Action | Rebound |
Limit Detection | 1-way optocoupler |
Remote Learning | Support (●) |
Motor Commutation | Support (●) |
Auto-Close Function | Supported and duration can be set |
Stroke Learning (Run Time) | Supported and duration can be set |
Function Reset | DIP switch + Power restart |
Impulse / Deadman Mode | Switchable |
Single/Multi-Key Mode | Single key |
External Single-Key Switch | Support (●) |
External Multi-Key Switch | Not supported (-) |
Controller Button Switch | Not supported (-) |
Code Clearing Function | Support (●) |
FAQs
1. What housings are compatible with the B1 control board?
The B1 board is compatible with multiple external housing models, including R03, R09, R18, R20, and R36. This flexible configuration allows the receiver to adapt to different installation environments and system structures.
2. Are specific remote controllers required for certain housings?
Yes. For optimal performance and signal stability, designated remote controllers are recommended: R03 pairs with 006, R09 with 017, R20 with 001, and R36 with 039. This ensures reliable communication and simplified system setup.
3. What is the maximum load capacity of the B1/B1L receiver?
The receiver supports a maximum load of 1200W, making it suitable for controlling various motors and electrical devices within its rated capacity.
4. What applications is the B1/B1L receiver suitable for?
It is widely used in motor control systems, automation equipment, roller shutter systems, and other electrical applications requiring stable remote operation and reliable load management.
5. Is the B1 board suitable for OEM or bulk integration projects?
Yes. Its standardized design and multi-housing compatibility make it ideal for OEM integration, large-scale projects, and customized automation solutions.
6. Does the receiver support easy installation and replacement?
The modular board structure allows convenient installation inside compatible housings, enabling efficient maintenance and streamlined system deployment.
