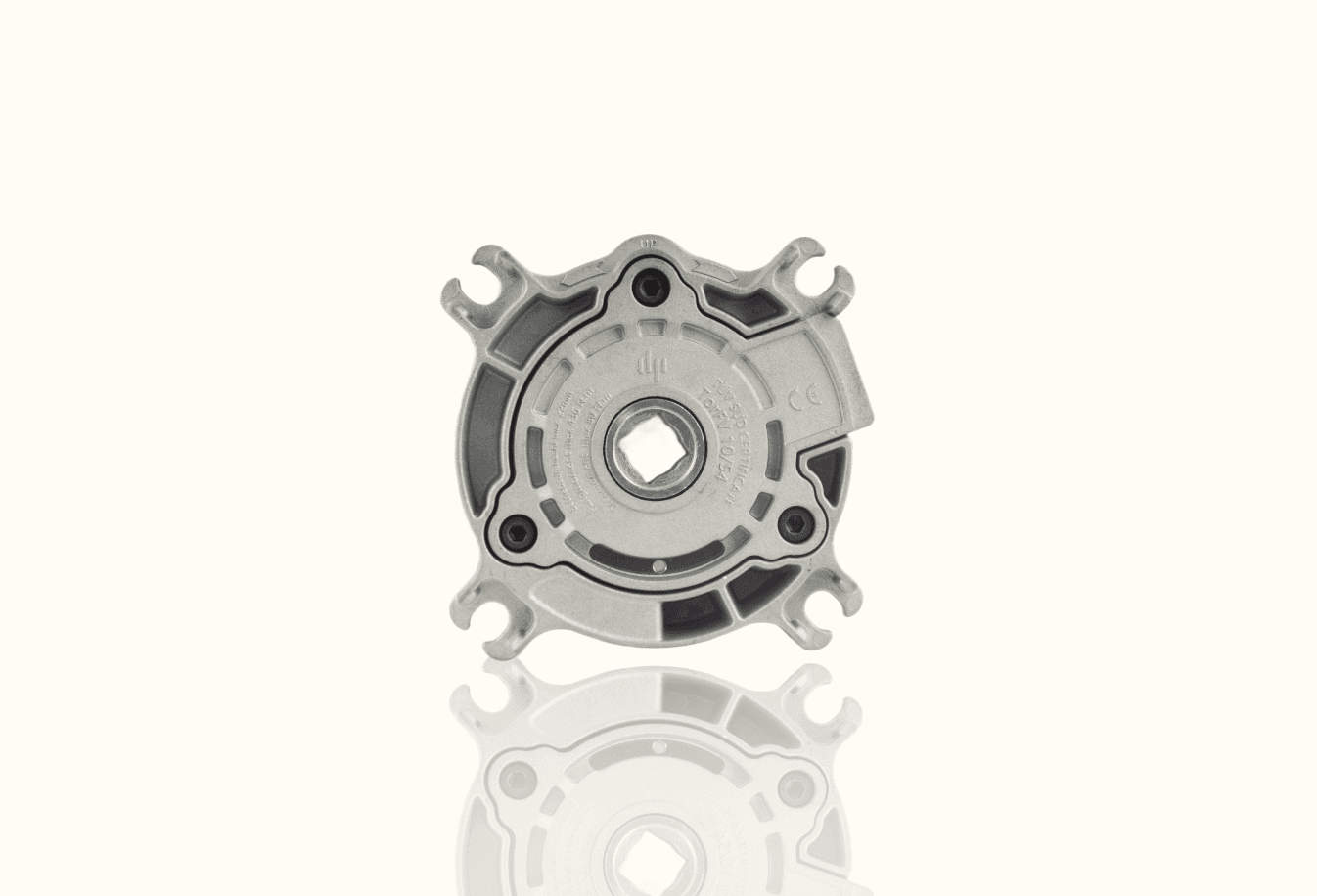

Safety Brake 13G | Roller Shutter Safety Device for Doors ≤150KG
Product Overview
Safety brakes are an indispensable safety device for roller shutter door and window systems, specifically designed to prevent accidental falls caused by lifting system malfunctions. We offer a full range of models, utilizing precise mechanical braking mechanisms to instantly lock the door in emergency situations, providing a reliable safety barrier for people and property.
Technical Specifications
SERIES | MAX.SPEED (r/min) | RUN TORQUE (STATIC) (N.m) | MAX. WINGING RADIUS (OUTSIDE) (mm) | INSTANT MAX.TOTRQUE (N.M) | BOLT TORQUE (N.M) |
|---|---|---|---|---|---|
RSB-1-13G | 22 | 80 | 124 | 436 | 6.5 |
Physical Properties
Bearing type | Maximum torque (Nm) | Weight of Unit (kgs) |
|---|---|---|
RSB-1-13/G | 80Nm | 835g |
FAQs
What is the main function of the Safety Brake 13G?
Safety Brake 13G is a mechanical safety device designed for roller shutter doors and windows. It prevents accidental door falling by instantly locking the system when a lifting mechanism fails, ensuring protection for people and property.
What is the maximum load and torque capacity of the Safety Brake 13G?
The Safety Brake 13G supports door systems with a weight capacity of up to 150KG. It provides a rated static torque of 80 N·m and an instant maximum torque of 436 N·m, enabling fast and reliable braking in emergency situations.
What are the key technical specifications of the RSB-1-13G model?
The RSB-1-13G operates at a maximum speed of 22 r/min, supports a maximum winding radius of 124 mm, and features a bolt tightening torque of 6.5 N·m, ensuring secure installation and stable operation.
What are the physical characteristics of the Safety Brake 13G?
The unit uses a durable bearing structure, delivers a maximum working torque of 80 N·m, and has a compact design with a unit weight of approximately 835 g, making it easy to integrate into roller shutter door systems.
Is the Safety Brake 13G suitable for industrial and commercial applications?
Yes. With its precise mechanical braking design and reliable torque performance, the Safety Brake 13G is suitable for industrial, commercial, and residential roller shutter door and window systems where fall protection is required.
How does the Safety Brake 13G improve system safety?
By mechanically engaging immediately during abnormal conditions, the Safety Brake 13G creates an instant safety barrier, minimizing the risk of sudden door drops caused by motor, gearbox, or lifting component failure.
