E-Lock with Wireless Remote & Sound-Light Alarm | Industrial Access Control
Type
Door Automation
Warranty
1 Year
Application
Door
Place of Origin
China
Brand Name
CHINA-DEVELOP
Material
Aluminium
Product Overview

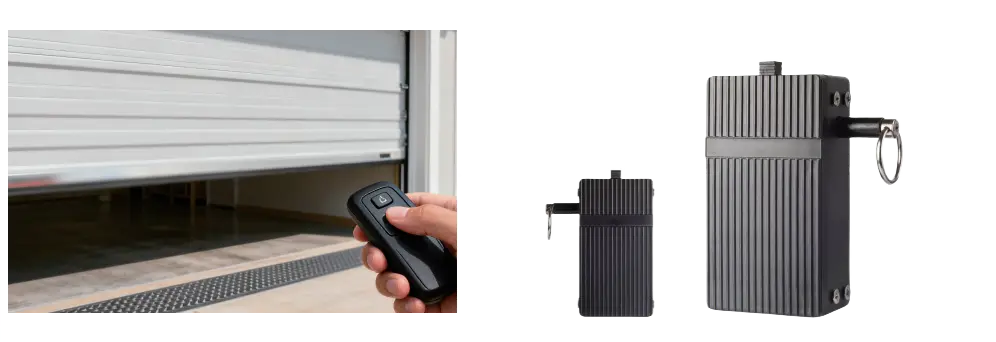

E-lock smart control locks redefine modern access control security standards, seamlessly integrating convenient remote control with professional-grade security alerts. Through advanced wireless remote control technology, you can easily control the lock status from a distance, while the unique external warning light provides clear audio and visual feedback with every operation, creating a comprehensive security solution that combines intelligent control and safety alerts.
The DEVELOP E-Lock offers an ideal combination of strong security, intelligent management, and user-friendly operation
Specifications
Holding Force : 600lbs
Operating Voltage : 12VDC
Current Draw : 12VDC@500mA
Fail Safe Type
MOV Surge Protection
Push Off Button On Armature For Instant Release
Remote Control
Working Voltage : 12VDC
Working Frequency : 433MHZ
Working Temperature : −40⁰C~ +55⁰C
DC Encoding Type : Learning Code
Wireless Range : 100 Feet In Open Area
Adjustable Locking Delay : 5/10/15/20 Seconds
Working Mode : Jog, Self-Locking, Interlocking (adjustable), Delay
Wireless Push to Exit Button
Size : 86mm x 86mm x 12mm
Material : ABS Case
Frequency: 433MHz
Wireless Range: 100 Feet In Open Area
Battery : 12V27A x 1PCS
Power Adaptor
Input Voltage : 220~240VAC
Output Rating : 12VDC, 1.2A
Technical Parameters
Model | Working Voltage | Working Current | Working Temperature | Input And Output Signal | Manual Unlocking When Power Is Off |
|---|---|---|---|---|---|
DE-L001 | DC 24V | ＜80mA | -20 ~ 45°C | high and low level signal | support |
FAQs
1. What is the E-lock smart remote control lock used for?
The E-lock smart remote control lock is designed for professional access control applications, offering secure remote lockingand unlocking for industrial doors, rolling doors, cabinets, and automation systems. It combines wireless remote control withsound and light alarm feedback for enhanced operational safety.
2. How does the wireless remote control function work?
The E-lock uses advanced wireless remote control technology, allowing users to controllock status from a distance. Thisenables fast and convenient operation without direct contact,making it ideal for automated and restricted -access environments.
3. What security features does the E-lock provide?
In addition to remote control, the E-lock features an external sound and light alarm system. Each locking or unlocking actiontriggers clear audio and visual feedback, improving safety awareness and helping prevent unauthorized or accidental operation.
4. What is the working voltage and current of the E-lock?
The E-lock operates at DC 24V with a working current of less than 8omA, ensuring low power consumption while maintainingstable and reliable performance for long-term industrial use.
5. Can the E-lock work in harsh environments?
Yes. The lock is designed to operate within a temperature range of -20°C to 45°c, making it suitable for both indoor and semi-outdoor industrial environments.
