Manufacture & Wholesale 92mm Tubular Motors for Blinds 170N.M-550N.M
Manufacture & Wholesale 92mm Tubular Motors 170N.M-550N.M
Type
Door Automation
Warranty
5 Year
Application
Industrial/Commercial
Place of Origin
China
Brand Name
TORQEN
Material
Aluminium

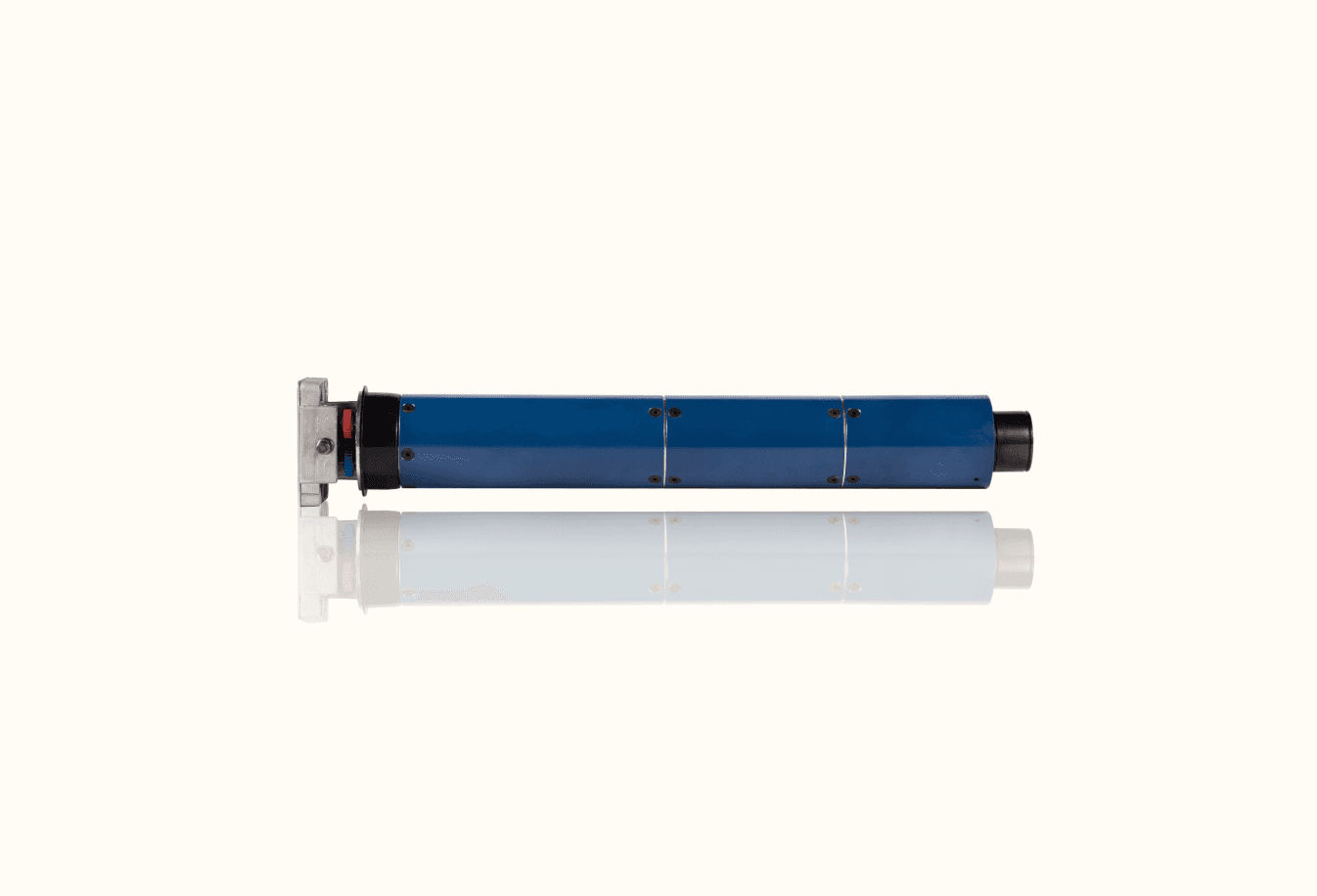

Manufacturer 92mm tubular electric motor with high-speed electronic limit, designed for roller shade and industrial doors. Durable, efficient, and reliable motor solution for automation needs.
Reliable Performance
Engineered for stable operation, providing dependable performance and long-term reliability in daily use.
Smooth & Stable Movement
Designed for consistent torque and precision, ensuring quiet, steady, and efficient movement under varying conditions.
Enhanced Safety
Equipped with safety mechanisms to prevent accidents, ensuring secure and reliable operation at all times.
Easy Installation
Compact structure and standardized components make setup simple, user-friendly, and maintenance-friendly.
Product Overview
The 92mm tubular motor with high-speed electronic limit is designed for roller shutters and industrial door automation. Built for efficiency, it offers precise limit control, smooth operation, and long-lasting durability. Its robust design ensures reliable performance in commercial and industrial applications.
Application Scenarios
Residential Garage Doors
Commercial Garage Door Systems
Industrial Sectional Doors
Warehouse & Logistics Center Doors
Underground Parking Entrance Systems
Retail & Commercial Building Doors
High-Speed Overhead Door Applications
Automated Door Access Systems
Our tubular motors are certified by TÜV Rheinland and comply with ISO 9001, SGS, CE, and RoHS standards. These certifications confirm reliable product quality, electrical safety, environmental compliance, and stable manufacturing standards for residential, commercial, and industrial automation applications.
Technical Parameters
92mm in diameter. 170N.m-550N.m.Manual override type. CE, CCC and TUV approved. Ideal for rolling shutter etc.(Manual Type)
Rated Torque(Nm) | Rated Voltage(V) | Rated Freouency(Hz) | Rated Power Input(W) | Tube Diamrter(mm) | Rated Current(A) | Running Time(min) | Rated Speed(rpm) | Protection Index(IP) | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|
170 | 230 | 50 | 830 | 92 | 3.60 | S2 4min | 16 | IP44 | Class H |
180 | 230 | 50 | 820 | 92 | 3.55 | S2 4min | 12 | IP44 | Class H |
230 | 230 | 50 | 870 | 92 | 3.80 | S2 4min | 12 | IP44 | Class H |
300 | 230 | 50 | 850 | 92 | 3.70 | S2 4min | 10 | IP44 | Class H |
330 | 230 | 50 | 875 | 92 | 3.80 | S2 4min | 10 | IP44 | Class H |
300 | 230 | 50 | 800 | 92 | 3.50 | S2 4min | 9 | IP44 | Class H |
330 | 230 | 50 | 830 | 92 | 3.60 | S2 4min | 9 | IP44 | Class H |
350 | 230 | 50 | 850 | 92 | 3.70 | S2 4min | 9 | IP44 | Class H |
400 | 230 | 50 | 920 | 92 | 4.00 | S2 4min | 7 | IP44 | Class H |
450 | 230 | 50 | 940 | 92 | 4.20 | S2 4min | 7 | IP44 | Class H |
500 | 230 | 50 | 990 | 92 | 4.30 | S2 4min | 6 | IP44 | Class H |
550 | 230 | 50 | 1020 | 92 | 4.40 | S2 4min | 6 | IP44 | Class H |
110V/60HZ is also available; please ask our sales team for details.
Key attributes
Project Solution Capability | graphic design | Design Style | Traditional |
|---|---|---|---|
Warranty | 5 Years | Application | Manual Type Electronic Frequency Conversion |
After-sale Service | Online Technical Support, Free spare parts, Return and… | Type | Tubular motor |
Model Number | 92LFC | Place of Origin | China |
Color | Blue | Advantage | Speed, electronic limit |
Function | Fast speed, speed could be ajusted | Delivery time | 15days |
Specification
Warranty: 5 years
Service: Online support, free parts, return & replacement
Application: Heavy doors, roller shutters
Model: 92LFC
Type: 92mm Tubular Motor
Color: Blue
Features: High speed, electronic limit, adjustable settings
MOQ: 1 unit
Delivery: 15 days
Quality: High durability
Reliable Performance
Safety devices ensure dependable operation by reducing risks of unexpected failures and maintaining stable automation.
Smooth & Stable Operation
Designed for consistent torque and precision, they provide quiet, efficient, and steady movement across applications.
Safety & Durability
Made with robust materials and tested to high standards, they deliver long-term reliability, safety, and durability.
FAQs
1. What is a 92mm tubular motor used for?
It is mainly used for roller shutters, large garage doors, and heavy industrial doors requiring fast and reliable automation.
2. What are the advantages of the electronic limit function?
The electronic limit provides precise control, easy adjustment, and longer service life compared to mechanical limits.
3. Is this motor suitable for heavy-duty doors?
Yes, the 92mm tubular motor is designed for big and heavy doors, offering high torque and stable performance.
4. How long is the warranty?
The motor comes with a 5-year warranty, ensuring long-term reliability.
5. What after-sales services are provided?
We offer online technical support, free spare parts, and return or replacement if needed.
1. What is a 92mm tubular motor used for?
It is mainly used for roller shutters, large garage doors, and heavy industrial doors requiring fast and reliable automation.
2. What are the advantages of the electronic limit function?
The electronic limit provides precise control, easy adjustment, and longer service life compared to mechanical limits.
3. Is this motor suitable for heavy-duty doors?
Yes, the 92mm tubular motor is designed for big and heavy doors, offering high torque and stable performance.
4. How long is the warranty?
The motor comes with a 5-year warranty, ensuring long-term reliability.
5. What after-sales services are provided?
We offer online technical support, free spare parts, and return or replacement if needed.
