High Speed Doors Explained: Types, Benefits, Applications & How to Choose the Right Industrial Door

What Is a High Speed Door?

A high speed door is an industrial automatic door designed to open and close significantly faster than conventional roller shutters, sectional doors, and traditional industrial doors.

Unlike standard industrial doors that mainly focus on security and physical separation, high speed doors are designed for high-frequency operation, traffic efficiency, environmental control, and energy saving.

They are commonly installed in:

• warehouses

• manufacturing facilities

• logistics centers

• food processing plants

• cold storage facilities

• pharmaceutical factories

• automotive production lines

The main purpose of a high speed door is to minimize the time an opening remains exposed while allowing vehicles, materials, and personnel to move efficiently.

A typical high speed door system consists of:

• flexible PVC curtain or rigid door panel

• side guides

• drive shaft

• industrial motor

• gearbox

• control panel

• safety sensors

• limit control system

The operating process can be simplified as:

Controller → Motor → Gearbox → Shaft → Door Curtain Movement

Compared with traditional roller shutters, high speed doors are engineered for faster cycles and more frequent operation. Many industrial high-performance doors are designed specifically for high-cycle applications where repeated opening and closing are required.

How Does a High Speed Door Work?

A high speed door uses an electric motor and control system to rapidly move the door curtain vertically or horizontally.

The main operating sequence is:

1. Activation

The door receives a signal from:

• push button

• remote control

• radar sensor

• vehicle detection sensor

• access control system

• PLC or factory automation system

2. Motor Drive

The motor generates rotational power.

Because industrial doors require controlled movement rather than simply high power, the motor is usually combined with a gearbox.

The gearbox provides:

• higher output torque

• controlled speed

• smoother movement

• improved reliability

3. Curtain Movement

The output shaft rotates and moves the curtain through:

• roller barrel

• side guides

• tension system

The door opens vertically at high speed and closes automatically according to programmed settings.

4. Safety Control

Modern high speed doors integrate:

• photocells

• safety edges

• infrared sensors

• bottom-bar detection

• emergency stop systems

These systems help prevent collision with vehicles, products, and personnel.

High Speed Door vs Traditional Roller Shutter Door

Although both doors roll upward, their design objectives are different.

High speed doors are commonly selected where reducing opening time improves productivity or environmental control. Industrial applications often use them to reduce temperature exchange, dust infiltration, and airflow disturbance.

Why Are High Speed Doors Important for Industrial Facilities?

Modern factories and warehouses often have hundreds of door movements every day.

A slow industrial door can create:

• vehicle waiting time

• temperature loss

• increased energy consumption

• dust contamination

• inefficient workflow

High speed doors solve these problems by reducing the duration of each opening cycle.

Improve Logistics Efficiency

In warehouses and distribution centers, forklifts and vehicles frequently move between different areas.

A fast-opening door reduces:

• waiting time

• traffic interruption

• production delays

This improves material handling efficiency.

Reduce Energy Loss

Buildings with controlled environments depend on maintaining:

• temperature

• humidity

• air pressure

A door that remains open for a long time allows more heat exchange.

High speed operation helps reduce:

• cold air loss

• heat loss

• HVAC load

This is especially important for:

• cold storage

• food processing

• pharmaceutical production

Improve Hygiene Control

Food and pharmaceutical facilities require strict environmental separation.

High speed doors help reduce:

• dust entry

• insects

• airborne contamination

• uncontrolled airflow

Short opening times help maintain cleaner production environments.

Types of High Speed Doors

Different industries require different high speed door designs.

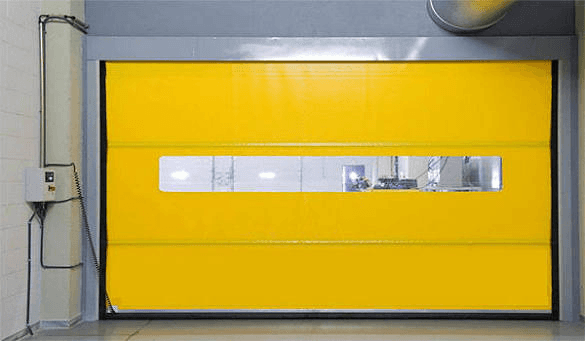

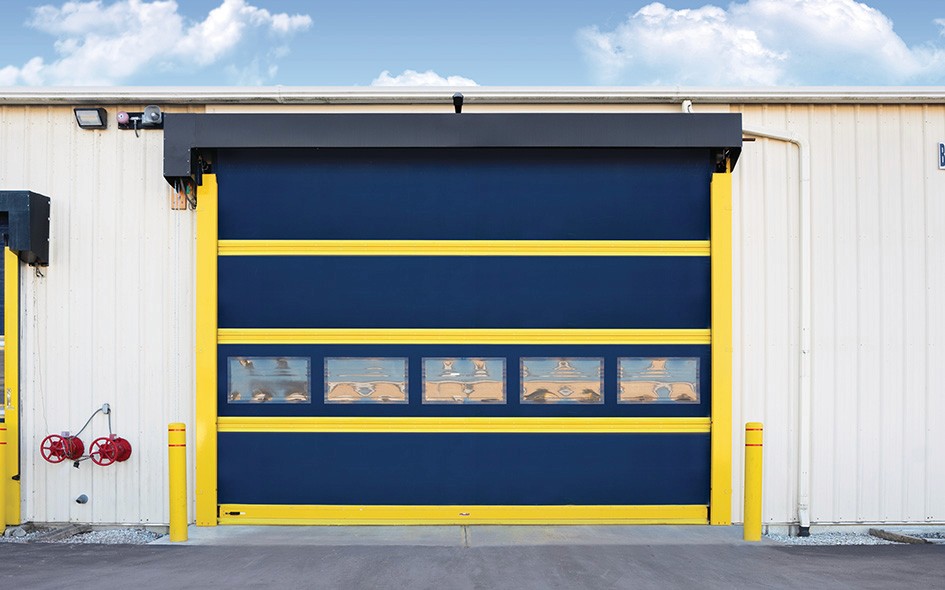

High Speed PVC Roll Up Doors

PVC high speed doors are among the most widely used industrial fast doors.

They normally include:

• flexible PVC curtain

• reinforced bottom bar

• side guide system

• industrial motor

• control panel

Advantages include:

• fast opening speed

• low maintenance

• impact recovery capability

• economical operation

Typical applications:

• warehouses

• factories

• workshops

• logistics facilities

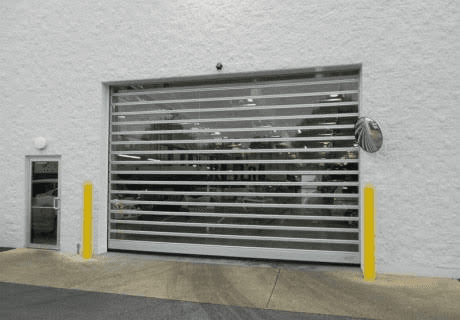

High Speed Spiral Doors

Spiral high speed doors use rigid panels that move through a spiral guide system.

Compared with flexible PVC doors, they provide:

• higher security

• better insulation

• improved appearance

• stronger wind resistance

They are often used for:

• automotive plants

• commercial buildings

• high-traffic entrances

High Speed Cold Storage Doors

Cold room environments require special door designs.

Cold storage high speed doors focus on:

• minimizing temperature loss

• reducing frost formation

• maintaining thermal separation

Applications include:

• frozen food warehouses

• refrigerated logistics

• pharmaceutical storage

High Speed Folding Doors

Folding high speed doors use vertical folding curtain movement.

They are suitable for:

• large industrial openings

• heavy-duty applications

• buildings requiring wind resistance

High Speed Doors for Warehouses and Logistics Centers

Warehouses are one of the most common applications for high speed doors.

Modern logistics facilities require:

• fast vehicle movement

• separation between zones

• reduced energy waste

• reliable operation

High speed warehouse doors are commonly installed between:

• loading areas

• production zones

• storage areas

• temperature-controlled rooms

Important selection factors include:

• opening frequency

• door dimensions

• forklift traffic

• indoor/outdoor installation

• wind exposure

• safety requirements

High Speed Door Motor: Why the Drive System Matters

The motor is one of the most important components of a high speed door.

A high performance door cannot rely only on a powerful motor.

The complete drive system must match:

• door weight

• curtain size

• opening speed

• cycle frequency

• installation environment

A typical high speed door drive system includes:

Motor

The industrial motor provides rotational power.

Important specifications include:

• output torque

• power rating

• voltage

• speed

• duty cycle

• protection rating

Gearbox

The gearbox converts motor speed into usable mechanical force.

It provides:

• torque multiplication

• controlled movement

• smooth acceleration

Encoder and Limit System

High speed doors require accurate position control.

The system must know:

• fully open position

• fully closed position

• intermediate positions

Incorrect limit settings can cause:

• curtain damage

• motor overload

• operational failure

Control Panel

The controller manages:

• opening commands

• closing speed

• safety devices

• automatic cycles

• external signals

For industrial applications, integration with PLC systems is increasingly common.

How to Choose a High Speed Door Motor?

Selecting a motor requires more than looking at motor power.

Consider Door Size

Larger doors require:

• higher torque

• stronger gearbox

• stronger shaft system

Door width and height directly influence mechanical load.

Consider Operating Frequency

High speed doors are designed for frequent operation.

A warehouse door may operate:

• dozens of cycles per day

A production line door may operate:

• hundreds of cycles per day

The motor must match the required duty cycle.

Consider Opening Speed

Higher speed improves efficiency but increases mechanical requirements.

The system must balance:

• speed

• safety

• durability

• control accuracy

Consider Environmental Conditions

Industrial environments can include:

• dust

• humidity

• temperature changes

• cleaning chemicals

• outdoor exposure

The motor should have suitable protection.

Important specifications:

• IP rating

• thermal protection

• corrosion resistance

• enclosure design

High Speed Door Applications

High speed doors are used across many industries.

Food Processing Facilities

Benefits:

• hygiene control

• temperature separation

• reduced contamination risk

Pharmaceutical Manufacturing

Applications require:

• clean environments

• controlled airflow

• reliable operation

Automotive Factories

High speed doors support:

• production efficiency

• vehicle movement

• separation between manufacturing areas

Cold Storage Warehouses

Benefits include:

• reduced cold loss

• improved energy efficiency

• faster loading operations

Distribution Centers

High speed doors improve:

• forklift movement

• warehouse productivity

• traffic flow

High Speed Door Maintenance Guide

Regular maintenance improves reliability.

Recommended inspections include:

Check Door Curtain

Inspect:

• tears

• deformation

• damage

• tension

Inspect Side Guides

Check:

• alignment

• cleanliness

• mechanical wear

Check Motor System

Inspect:

• unusual noise

• overheating

• vibration

• gearbox condition

Test Safety Devices

Verify:

• photocells

• sensors

• emergency stop

• safety edges

Check Limit Settings

Incorrect limits may cause:

• incomplete opening

• incomplete closing

• mechanical impact

Common High Speed Door Problems and Solutions

Door Opens Slowly

Possible causes:

• motor wear

• voltage problems

• mechanical resistance

• incorrect settings

Door Does Not Close Completely

Possible causes:

• sensor obstruction

• incorrect limit position

• control system fault

Door Curtain Comes Out of Guide

Possible causes:

• impact damage

• guide misalignment

• excessive wind load

Motor Overheats

Possible causes:

• excessive cycle frequency

• incorrect motor selection

• mechanical resistance

• poor electrical supply

High Speed Door vs Sectional Door

Both are widely used industrial doors, but they serve different purposes.

High speed doors are ideal when speed and operational efficiency are priorities.

Sectional doors are often selected when insulation, strength and long-term building closure are more important.

How to Select the Right High Speed Door for Your Project

Before purchasing, evaluate:

Application

Is the door for:

• warehouse

• factory

• cold room

• cleanroom

• logistics center?

Door Size

Provide:

• width

• height

• opening dimensions

Operating Conditions

Consider:

• cycles per day

• temperature

• wind

• dust

• humidity

Safety Requirements

Check:

• sensors

• emergency systems

• compliance requirements

Motor Specifications

Confirm:

• torque

• speed

• duty cycle

• voltage

• protection rating

Frequently Asked Questions

What is a high speed door?

A high speed door is an industrial automatic door designed for rapid opening and closing cycles, improving traffic efficiency and environmental control.

What is the difference between a high speed door and a roller shutter?

High speed doors focus on fast operation and frequent cycles, while roller shutters focus more on security and general closure.

How fast can a high speed door open?

Opening speed depends on the door design, motor system and application requirements. Industrial high speed doors are designed specifically for rapid cycling.

Where are high speed doors used?

They are commonly used in warehouses, factories, food processing plants, cold storage facilities, logistics centers and pharmaceutical facilities.

What motor is used for a high speed door?

High speed doors typically use industrial motors combined with gearboxes, control systems and safety devices designed for frequent operation.

Are high speed doors energy efficient?

Yes. Faster opening and closing can reduce the time an opening remains exposed, helping reduce temperature loss and airflow exchange.

How often should a high speed door be maintained?

Maintenance frequency depends on operating cycles and environment, but high-cycle industrial doors require regular inspection of motors, guides, sensors and safety systems.

Why Choose China-Develop for High Speed Door Motor Solutions?

With years of experience in industrial door automation, China-Develop provides reliable motor solutions for high speed doors, roller shutters, sectional doors, and customized industrial access systems.

Our focus is not only on motor performance, but also on matching the drive system with the complete door application, including door size, operating frequency, torque requirements, speed, safety requirements, and working environment.

From warehouses and manufacturing facilities to logistics centers and specialized industrial applications, our engineering team helps customers select suitable motor configurations for reliable and long-term operation.

China-Develop offers industrial door motor solutions featuring:

• High torque performance for demanding applications

• Stable gearbox transmission

• Reliable limit control systems

• Different voltage options for global markets

• Custom solutions for OEM and industrial projects

• Technical support for distributors, installers, and door manufacturers

Whether you are sourcing high speed door motors for a new project or developing customized industrial door systems, China-Develop can provide professional solutions based on your application requirements.
