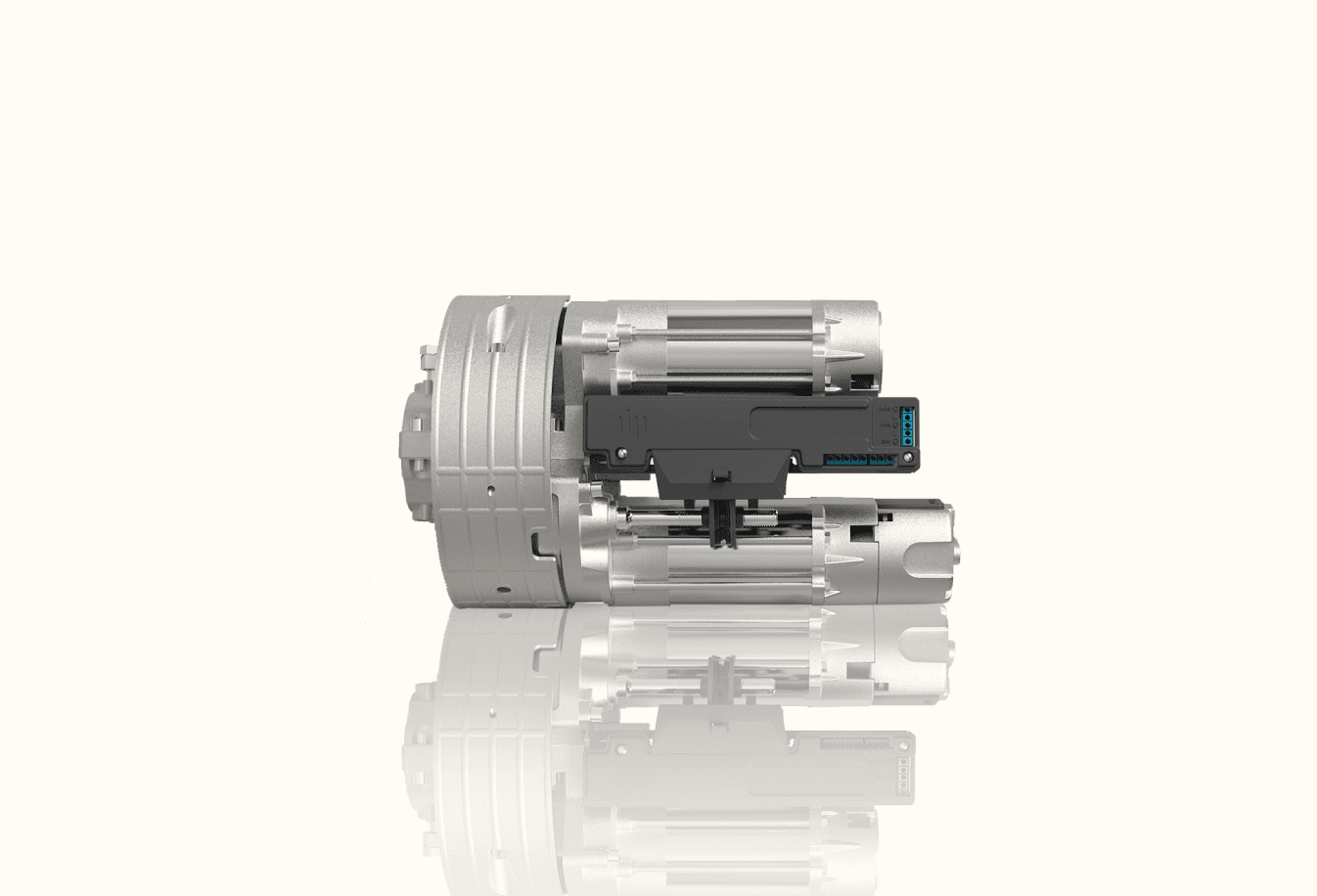

DP Automation Shutter Central Motor with Electronic Brake 360NM-460NM |60mm\200mm|Double Motor
Product Overview
The BOLT FSDME is an industrial-grade dual-motor central drive system designed for high-performance applications. Featuring shot-blasted and precision-machined components, it boasts exceptional structural strength and heat dissipation capabilities. The core transmission system has been upgraded to a three-stage planetary gear mechanism, combined with powder metallurgy high-frequency quenched gears and powder metallurgy travel sliders, resulting in lower operating noise, higher transmission efficiency, and more precise positioning control. It is an ideal power solution for heavy-duty roller doors, industrial equipment, and other demanding applications.
Key attributes
Torque (Nm) | RPM | Power Absorbed (W) | Consumption (A) | Lifting Capacity (Kg) | Tube Rolling (mm) | Pulley (mm) |
|---|---|---|---|---|---|---|
360 | 10 | 1198 | 5.21 | 360 | φ60** | φ200** |
420 | 9.5 | 1290 | 5.61 | 350 | φ76** | φ240** |
460 | 9.5 | 1430 | 6.22 | 380 | φ76** | φ240** |
Specification
Product: Bolt FSDME double motor series (DOUBLE TYPE)
Voltage/Frequency: 110V/60Hz – 230V/50Hz
Motor travel / tube dimensions: 60mm / 200mm
Cut-out temperature: 4 minutes (thermal protection trigger time)
Limit switch maximum door travel: 6 m
FAQs
What applications is the Bolt FSDME double motor suitable for?
The Bolt FSDME double motor is designed for heavy-duty roller shutters and industrial door systems, including warehouses, factories, and commercial facilities requiring high torque and stable operation.
What torque range does this shutter central motor provide?
This series offers torque options from 360Nm to 460Nm, allowing it to handle different door weights and sizes in industrial and commercial applications.
What voltage and installation specifications are supported?
The motor supports 110V/60Hz to 230V/50Hz, with a 60mm motor travel and 200mm tube size, ensuring compatibility with common roller shutter configurations.
What is the maximum door travel and lifting capacity?
The limit switch supports a maximum door travel of up to 6 meters, while lifting capacity ranges from 360 kg to 380 kg, depending on the selected model.
Does the motor include thermal protection?
Yes. The motor features built-in thermal protection with a 4-minute cut-out time, helping prevent overheating during continuous or high-load operation.
What are the key advantages of the double motor design?
The dual-motor central drive delivers higher torque stability, smoother operation, reduced mechanical stress, and improved reliability for long-term industrial use.
