Receiver Series-Q1 800W Motor Control Board | Universal 90-264V Roller Shutter Controller
Product Overview

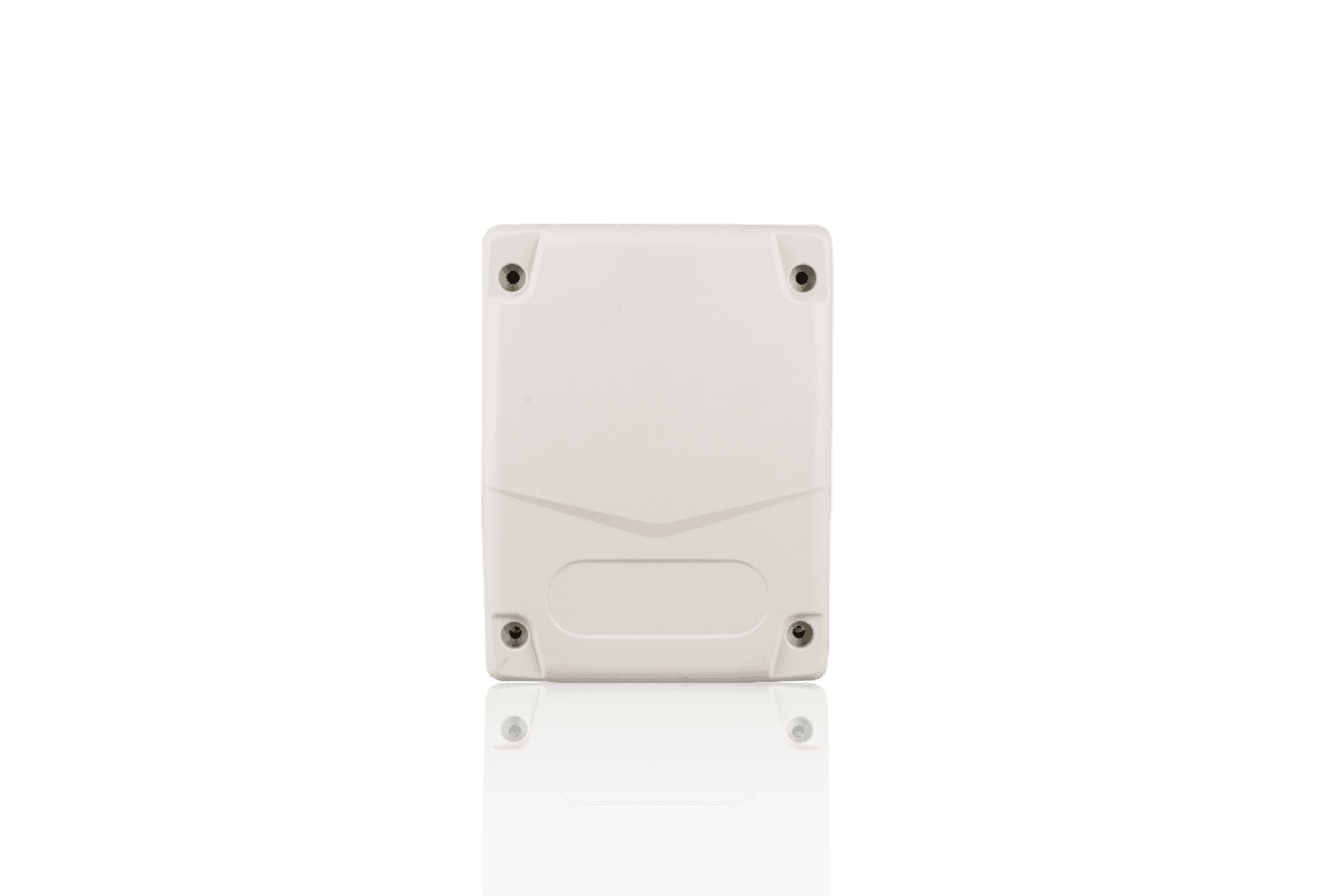

Receiver Series-Q1 is a compact and versatile motor control board designed for roller shutters and tubular motor systems.
With wide voltage input compatibility, intelligent learning functions, and flexible control modes, it ensures stable signal reception and reliable motor operation. Built-in shell buttons allow direct operation, while configurable auto-close and stroke learning functions provide convenient and adaptable system control for commercial and residential automation projects.
Key attributes
The Q1 board is compatible with the following receiver housing:
R03
This dedicated housing compatibility ensures compact installation and convenient integration into standard roller shutter control systems.
Compatibility & Configuration
The Q1 control board is designed for flexible integration with multiple external housing options, including R03, allowing it to adapt to different installation requirements and system layouts.
For optimized performance, specific housing models are matched with dedicated remote controllers:
R03 – compatible with Remote Controller 006
This structured compatibility ensures stable signal transmission, simplified configuration, and efficient system deployment across various automation applications.
DATA PARAMETERS
Parameter | Specification |
|---|---|
Input Voltage (VAC) | 90~264 |
Max Power (W) | 800 |
Auxiliary Voltage | 24VDC |
Frequency (MHz) | 433 |
Reception Protocol | DE1527 / DOOYA |
Remote Control Quantity | 20 |
Quantity Overflow Tip | None, automatic coverage |
Reception Distance (m) | 70 |
Alarm Light | AC Thyristor |
Emergency Stop | Not supported (-) |
Infrared Protection | Normally open, no short circuit required |
Safety Edge Protection | Not supported (-) |
Obstruction Action | Stop |
Limit Detection | Not supported (-) |
Remote Learning | Support (●) |
Motor Commutation | Support (●) |
Auto-Close Function | Supported and duration can be set |
Stroke Learning (Run Time) | Supported and duration can be set |
Function Reset | Dial return (Return to default if not set) |
Impulse / Deadman Mode | Switchable |
Single / Multi-Key Mode | Switchable |
External Single-Key Switch | Not supported (-) |
External Multi-Key Switch | Yes, only open |
Controller Button Switch | Shell buttons: Up, Down, Stop |
Code Clearing Function | Support (●) |
FAQs
1. What applications is the Q1 receiver suitable for?
The Q1 series is designed for roller shutters, tubular motors, and basic door automation systems requiring stable signal reception and intelligent motor control.
2. Does the Q1 support wide voltage input?
Yes. It supports universal wide voltage input, allowing stable operation across different regional power standards.
3. Which remote control protocols are supported?
The Q1 supports DE1527 and DOOYA protocols, improving compatibility with various transmitters.
4. Does it support automatic closing?
Yes. The auto-close function is supported, and the duration can be configured according to project requirements.
5. Can the running time (stroke) be adjusted?
Yes. Stroke learning is supported, and the running duration can be set for accurate motor control.
6. Does it include onboard control buttons?
Yes. The housing includes Up, Down, and Stop buttons for direct manual operation during installation or maintenance.
