Receiver Series-S1/S1L 1200W Motor Control Board | Industrial Door & Roller Shutter Controller
Product Overview
Receiver Series-S1/S1L is a high-power motor control board designed for industrial doors and roller shutter automation systems requiring stable and straightforward control logic.
With support for dual voltage input and PJ301 reception protocol, the S1 series delivers reliable signal transmission and high load capacity. It integrates emergency stop input capability and configurable stroke learning, making it suitable for professional installations where safety and controlled operation are essential.
Key attributes
The S1/S1L board is compatible with the following receiver housing:

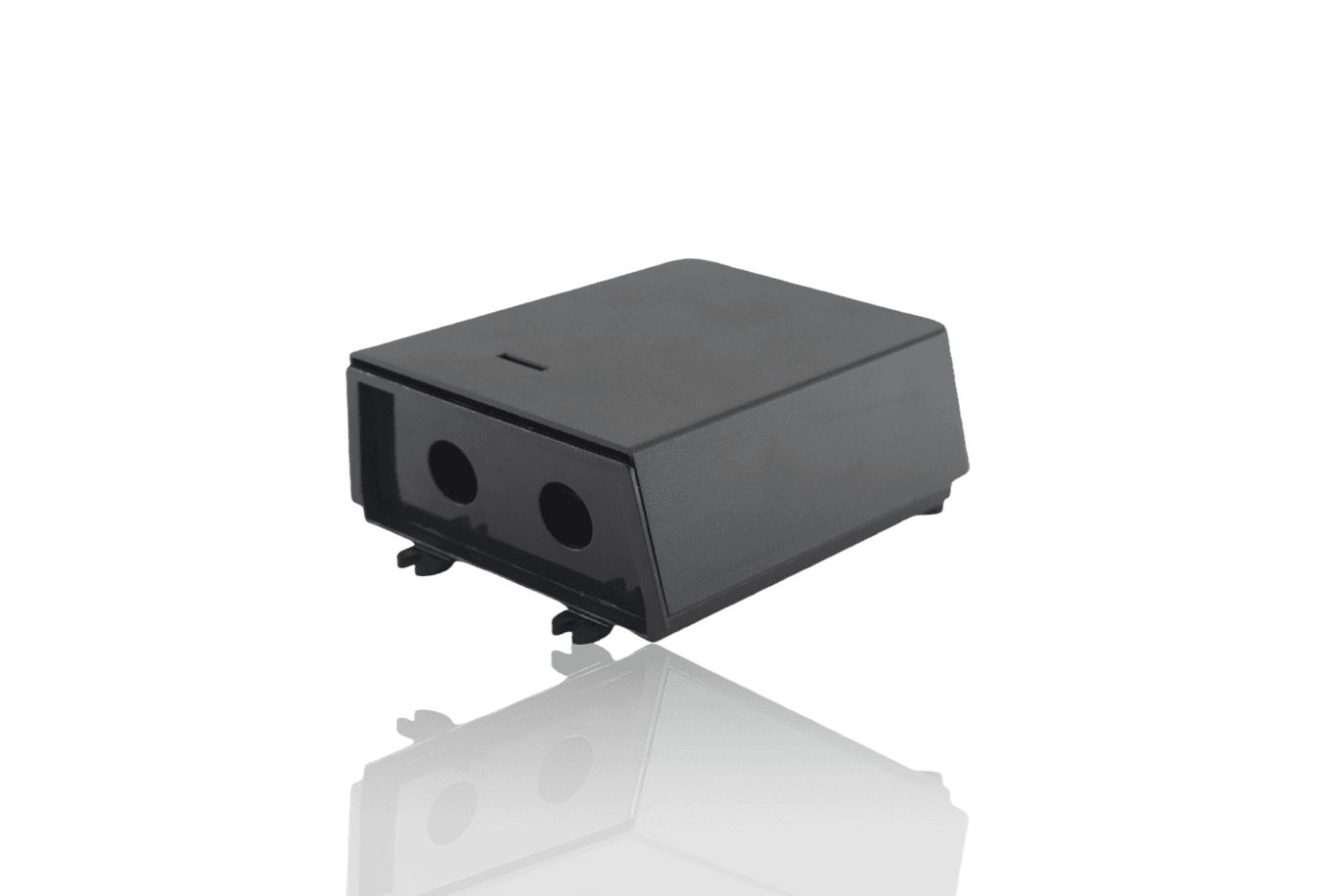

R34
This configuration allows compact installation and easy integration into standard motor control enclosures.
Compatibility & Configuration
The Q1 control board is designed for flexible integration with multiple external housing options, including R34, allowing it to adapt to different installation requirements and system layouts.
For optimized performance, specific housing models are matched with dedicated remote controllers:

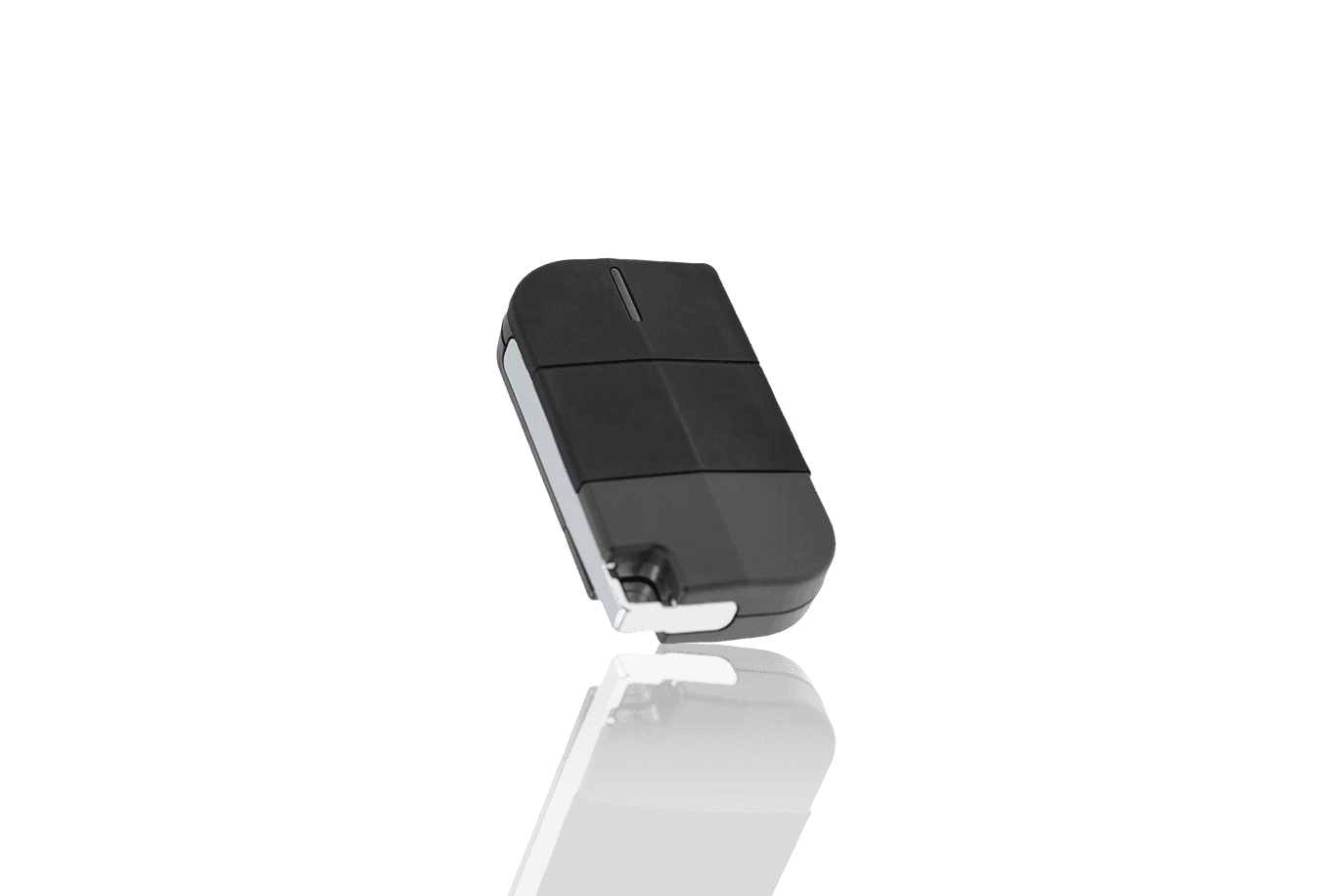

R34 – compatible with Remote Controller 023
This structured compatibility ensures stable signal transmission, simplified configuration, and efficient system deployment across various automation applications.
DATA PARAMETERS
Parameter | Specification |
|---|---|
Input Voltage (VAC) | 230 / 110 |
Max Power (W) | 1200 |
Auxiliary Voltage | 24VDC |
Frequency (MHz) | 433 |
Reception Protocol | PJ301 |
Remote Control Quantity | 60 |
Quantity Overflow Tip | None, automatic coverage |
Reception Distance (m) | 70 |
Alarm Light | AC Thyristor |
Emergency Stop | Yes, requires short connection or external emergency stop switch |
Infrared Protection | Normally open, no short circuit required |
Safety Edge Protection | Not supported (-) |
Obstruction Action | Stop |
Limit Detection | Not supported (-) |
Remote Learning | Not supported (-) |
Motor Commutation | Not supported (-) |
Auto-Close Function | Not supported (-) |
Stroke Learning (Run Time) | Supported and duration can be set |
Function Reset | Dial return |
Impulse / Deadman Mode | Switchable |
Single / Multi-Key Mode | Switchable |
External Single-Key Switch | Not supported (-) |
External Multi-Key Switch | Yes, only open |
Controller Button Switch | Shell thin film switch: Up, Down, Stop |
Code Clearing Function | Support (●) |
FAQs
1. What applications is the S1/S1L receiver suitable for?
It is designed for industrial doors, roller shutters, and high-power motor control systems that require stable reception and simple operational logic.
2. Which reception protocol does the S1 support?
The S1 series supports the PJ301 protocol, ensuring compatibility with matching transmitters in industrial automation environments.
3. Does it support emergency stop functionality?
Yes. It supports emergency stop input and requires either a short connection or an external emergency stop switch for activation.
4. Can the motor running time be configured?
Yes. Stroke learning is supported, and the operating duration can be set to match different installation requirements.
5. Does it support remote learning?
No. Remote learning and motor commutation functions are not supported in this model.
6. What operation modes are available?
Impulse and deadman modes are switchable, and single-key or multi-key control modes can be configured according to project needs.
