Tubular & Roller Shutter Motors Key Switch

Key Switch 3A with Brass Cylinder for Tubular & Roller Shutter Motors

Type

Roller Shutter Accessoires Key Switch

Warranty

1 Year

Application

Hotel, Villa, Apartment, Office Building,Hospital,School,...

Place of Origin

China

Brand Name

DEVELOP

Material

Aluminium

Key Switch 3A with brass lock cylinder, die-cast aluminum alloy housing, and grounding design. Supports 125V/240V wide voltage for tubular motors and roller shutter motors. Durable, secure, and easy to install.

Key Switch 3A with brass lock cylinder, die-cast aluminum alloy housing, and grounding design. Supports 125V/240V wide voltage for tubular motors and roller shutter motors. Durable, secure, and easy to install.

Reliable Safety

Ensures consistent protection with high-performance safety mechanisms for rolling or garage doors.

Durable Construction

Built from robust materials to withstand heavy-duty, long-term daily use.

Easy Installation

Simple setup process reduces installation time and ensures smooth integration.

Wide Compatibility

Works with multiple door systems for versatile and reliable applications.

Product Overview

Physical lock control structure. Comes standard with 3 keys. The die-cast aluminum alloy casing and panel ensure impact resistance and corrosion resistance in industrial environments; the all-copper lock cylinder provides excellent durability and rust resistance for long-lasting use. The wide voltage design of 125V/240V allows it to flexibly adapt to different regional power grid standards and easily match various single-phase equipment such as tubular motors and roller shutter motors. The design includes a grounding point, complying with safety regulations and effectively preventing leakage risks. Installation is simple and plug-and-play.

Get a Quote

Key attributes

Dimensions: L74 x W74 x H46 mm (L7.4W7.4H4.6cm)
Combinations: 1-1000 combinations available
Rated Load: Maximum operating current: 16A
Insulation Resistance: 100 MΩ Min
Dielectric Strength: 1500 VAC (50-60HZ)
Materials: Aluminum alloy material, Brass cylinder, Metal keys, Aluminum oxide plate, Silver plated contacts and terminals
Additional Details: Terminals and Grounding

Consistent Quality

Every product in the series meets strict reliability and durability standards.

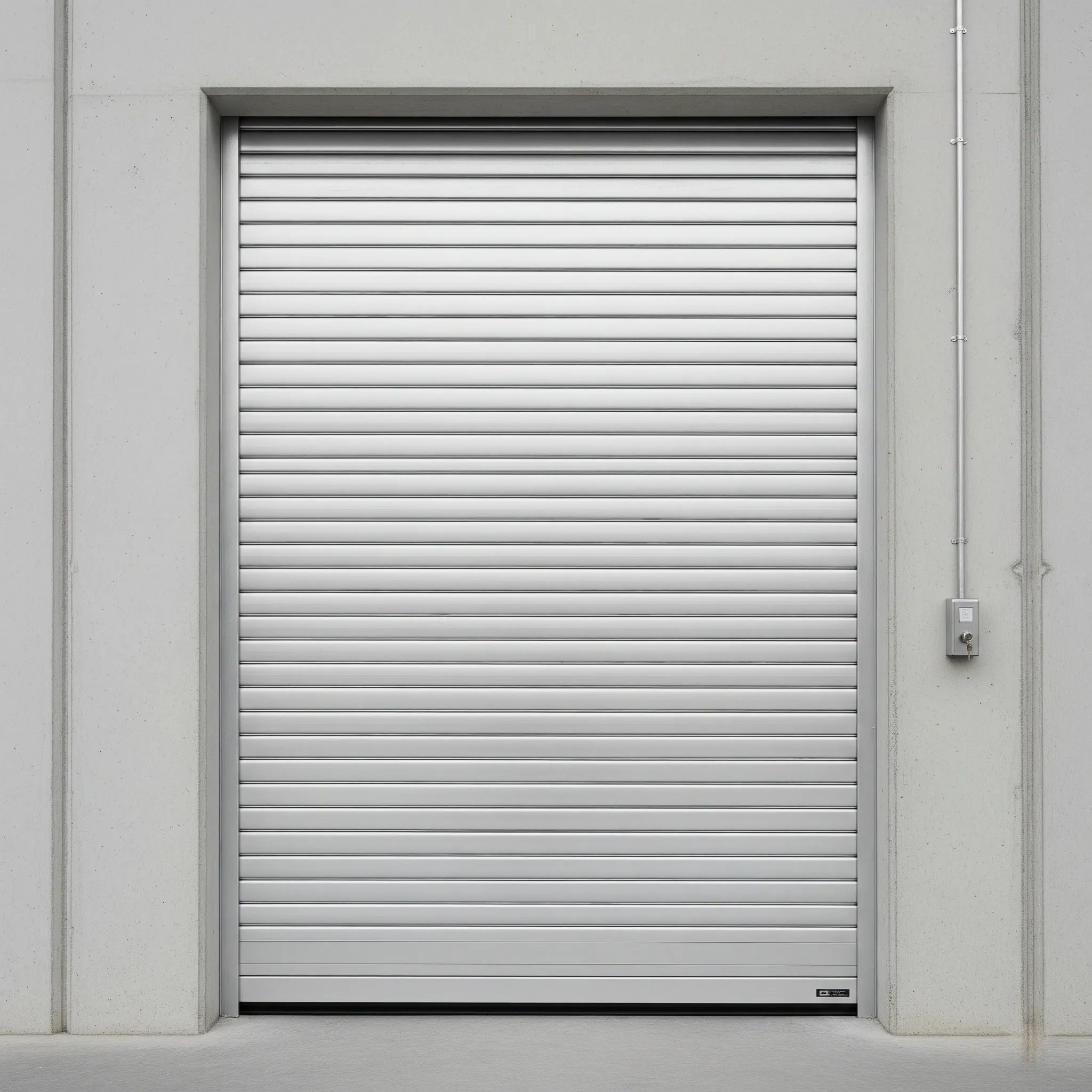

Industrial roller shutter key switch for warehouse and commercial doors

Roller shutter accessories key switch with durable design for secure access control

Flexible Options

Series offers varied models to suit different doors and voltage requirements.

Enhanced Safety

Provides advanced protection features across all models for user security.

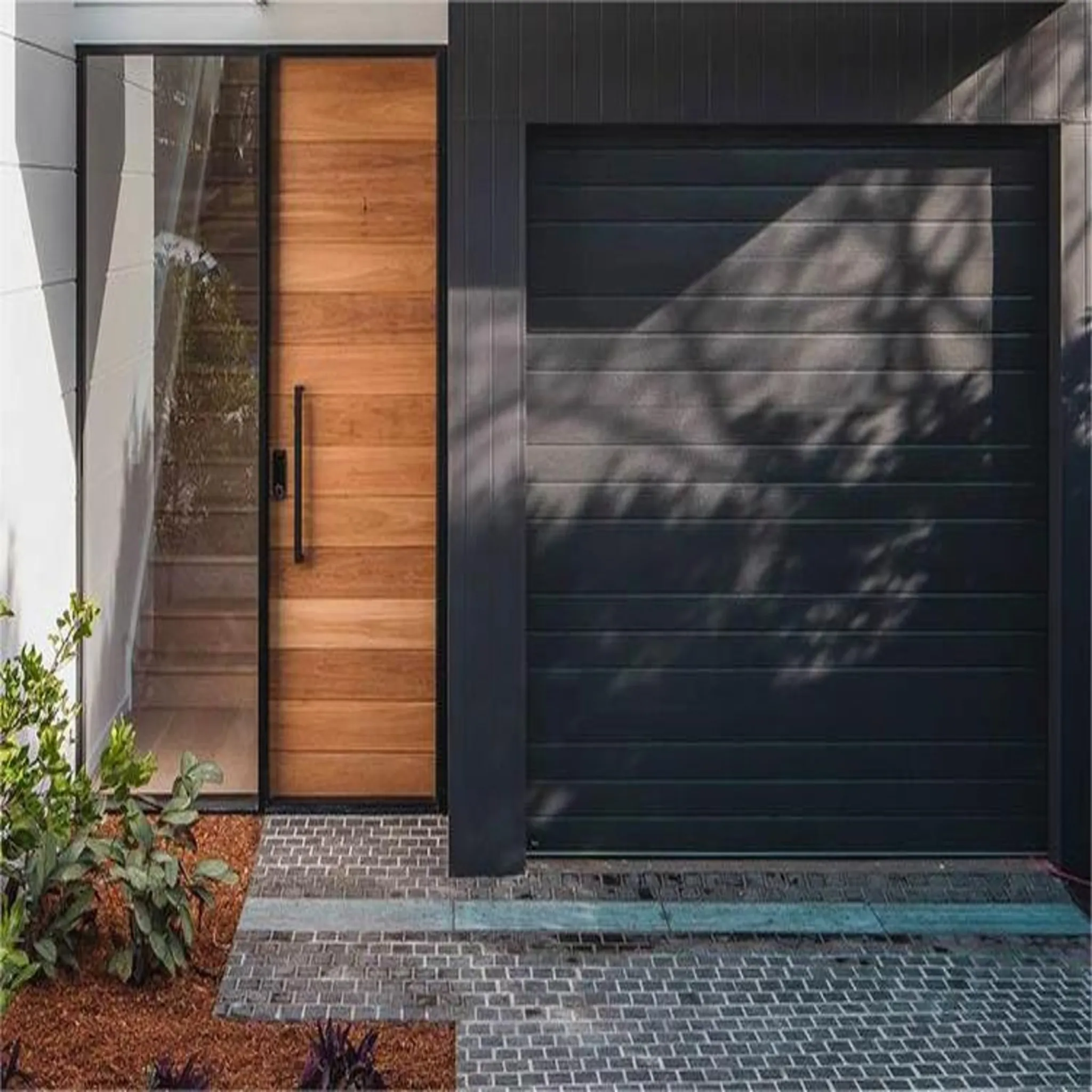

Easy installation key switch for residential garage roller shutter systems

FAQs

1. What is the Key Switch 3A used for?

The Key Switch 3A is designed for secure manual control of tubular motors, roller shutter motors, and other single-phaseelectrical equipment. It provides authorized operation control in industrial, commercial, and building automation applications.

2. What voltage and current ratings does this key switch support?

This model supports a wide voltage range of 125V/24oV and a maximum operating current of 16A, making it suitable fordifferent regional power grid standards and high-load motor control applications.

3. What materials are used in the Key Switch 3A?

The switch features a die-cast aluminum alloy housing. a brass lock cyinder for durability and corrosion resistance, analuminum oxide front plate, metal keys, and siver-plated contacts and terminals to ensure stable electrical performance.

4. How secure is the lock mechanism?

The Key Switch 3A uses a brass cyinder with up to 1-1000 key combinations, providing reliable access control and reducing therisk of unauthorized operation. It comes standard with three metal keys.

5. What are the insulation and safety specifications?

The switch offers an insulation resistance of 100 M and a dielectric strength of 1500 VAC (50-60Hz). It also includesgrounding terminals, complying with safety regulations and helping prevent electrical leakage risks.
