Products
Sliding Gate Openers

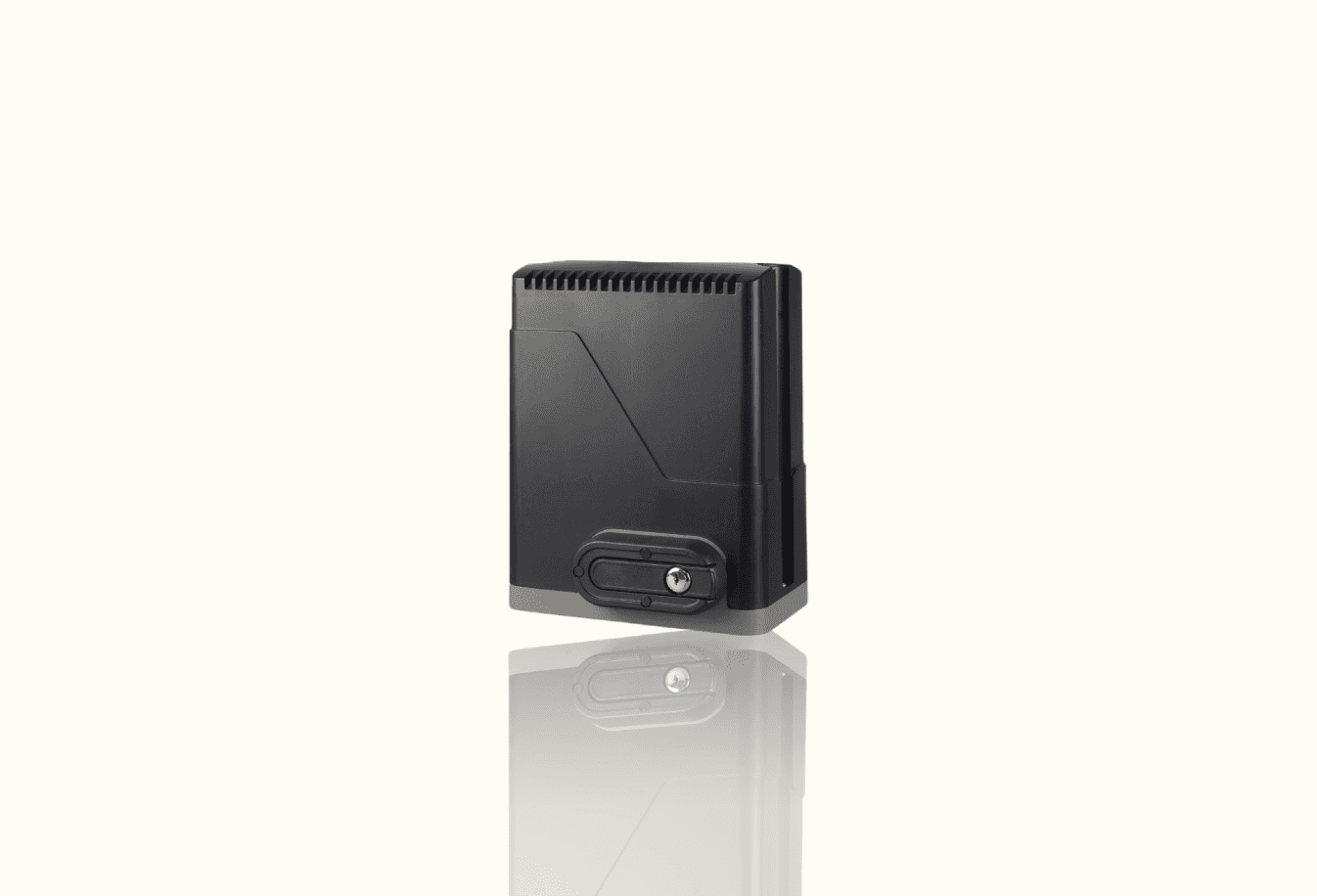

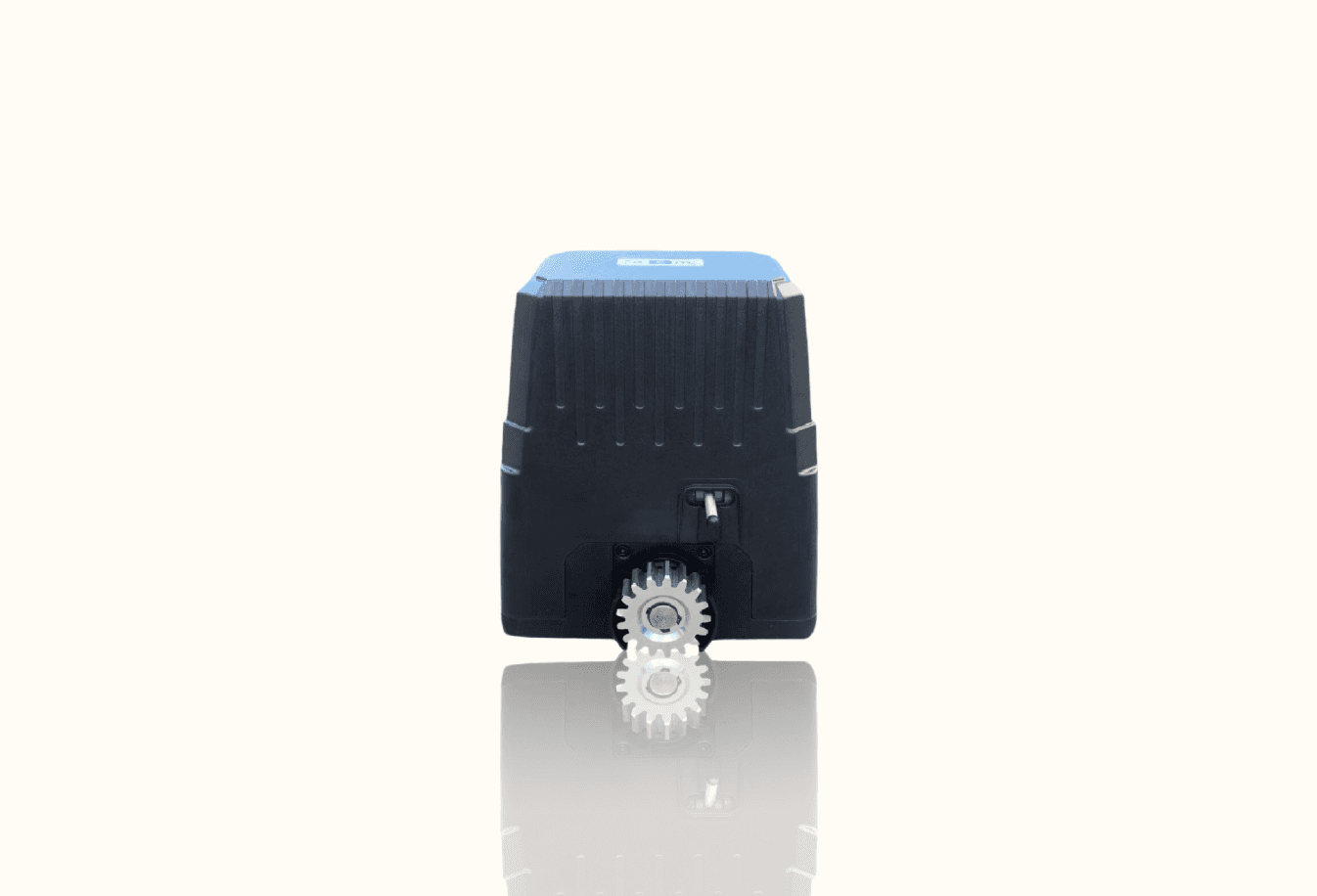

China Develop manufactures TORQEN sliding gate openers for gates from 500 to 1,500 kg: the DOG series for residential and commercial gates, and the WOLF series with full-copper motors for heavy industrial gates. Soft start and stop, dual limit systems and OEM supply.
Sliding Gate Opener Specifications Compared
Six TORQEN models from 500 to 1,500 kg. Choose by gate weight and how often the gate runs, then open the series for full details.
Model
Max gate weight
Power supply
Motor power
Gate speed
Duty cycle
DOG 500
500 kg
110V AC / 60Hz
150 W
13 m/min
S2, 20 min
DOG 800
800 kg
220V AC / 60Hz
170 W
18 m/min
S2, 20 min
WOLF AC600
600 kg
AC
370 W
On request
On request
WOLF AC800
800 kg
AC
500 W
On request
On request
WOLF AC1000
1,000 kg
AC
700 W
On request
On request
WOLF AC1500
1,500 kg
AC
1,000 W
On request
On request
All models: soft start and stop, mechanical and electromagnetic dual limit. DOG series: AC or DC configurations, 433.92 MHz remote, working temperature −20 °C to +70 °C. WOLF series: full-copper motor.
Which sliding gate opener do I need for my gate weight?
DOG series for gates up to 500 kg or 800 kg. WOLF series for heavier gates from 600 kg up to 1,500 kg. Allow a margin above the actual gate weight.
Should I choose an AC or DC gate opener?
The DOG series comes in AC and DC configurations, so you can match local power and backup needs. The WOLF series is AC with a full-copper motor for heavy-duty use.
How fast do the gates open?
DOG series openers move the gate at 13 m/min (500 kg) or 18 m/min (800 kg).
How often can the gate run?
The DOG series is rated S2, 20 minutes. For very high-traffic industrial gates, ask us about the WOLF series.
Which remote frequency do you use?
The DOG series uses 433.92 MHz remotes, with single-button or three-button modes.
Which safety accessories can I connect?
Photocells, warning lights, electronic locks, push buttons, external receivers and Wi-Fi modules connect through the control board ports.
What temperatures can the opener work in?
The DOG series works from −20 °C to +70 °C.
Can you supply sliding gate openers under our brand?
Yes. We offer OEM and ODM supply with your brand on the operator and packaging, and complete kits with accessories.
How do I get a quote?
Use the form on this page or our contact page. Tell us the gate weight, length, voltage, quantity and destination country, and our sales team will reply with pricing and lead time.
