How Automatic Door Motors Work: Components, Functions, and Selection Considerations

Introduction

Automatic doors are widely used in commercial buildings, public facilities, and industrial environments because they provide convenient access while improving traffic flow and operational efficiency. However, the smooth movement users experience at an automatic entrance depends on the performance of several components working together.

Among these components, the automatic door motor plays a central role. It provides the mechanical power required to move the door and determines how efficiently the system can handle different operating conditions.

While sensors and access control devices often receive more attention because they interact directly with users, the motor is the component responsible for converting electrical signals into physical movement. A properly selected motor helps ensure stable operation, consistent performance, and longer service life.

For project managers, installers, and automation suppliers, understanding how automatic door motors work is important when selecting solutions for different applications. Factors such as door structure, operating frequency, load requirements, and installation conditions all influence whether a motor can perform effectively in a specific environment.

What Is an Automatic Door Motor?

An automatic door motor is an electric drive component that converts electrical energy into mechanical movement to operate an automated door.

In a complete automatic door system, the motor does not work independently. It receives signals from the controller, which processes information from sensors, access control devices, or other input systems. After receiving an operation command, the motor generates the force needed to move the door through a mechanical transmission system.

The role of the motor is not simply to open and close the door. It also needs to provide controlled movement, allowing the door to accelerate, operate, and stop smoothly. This is especially important in commercial environments where doors may operate hundreds or thousands of times during their service life.

Different automatic door applications require different motor characteristics. A small office entrance, a retail store entrance with frequent pedestrian traffic, and an industrial facility all have different requirements for motor performance.

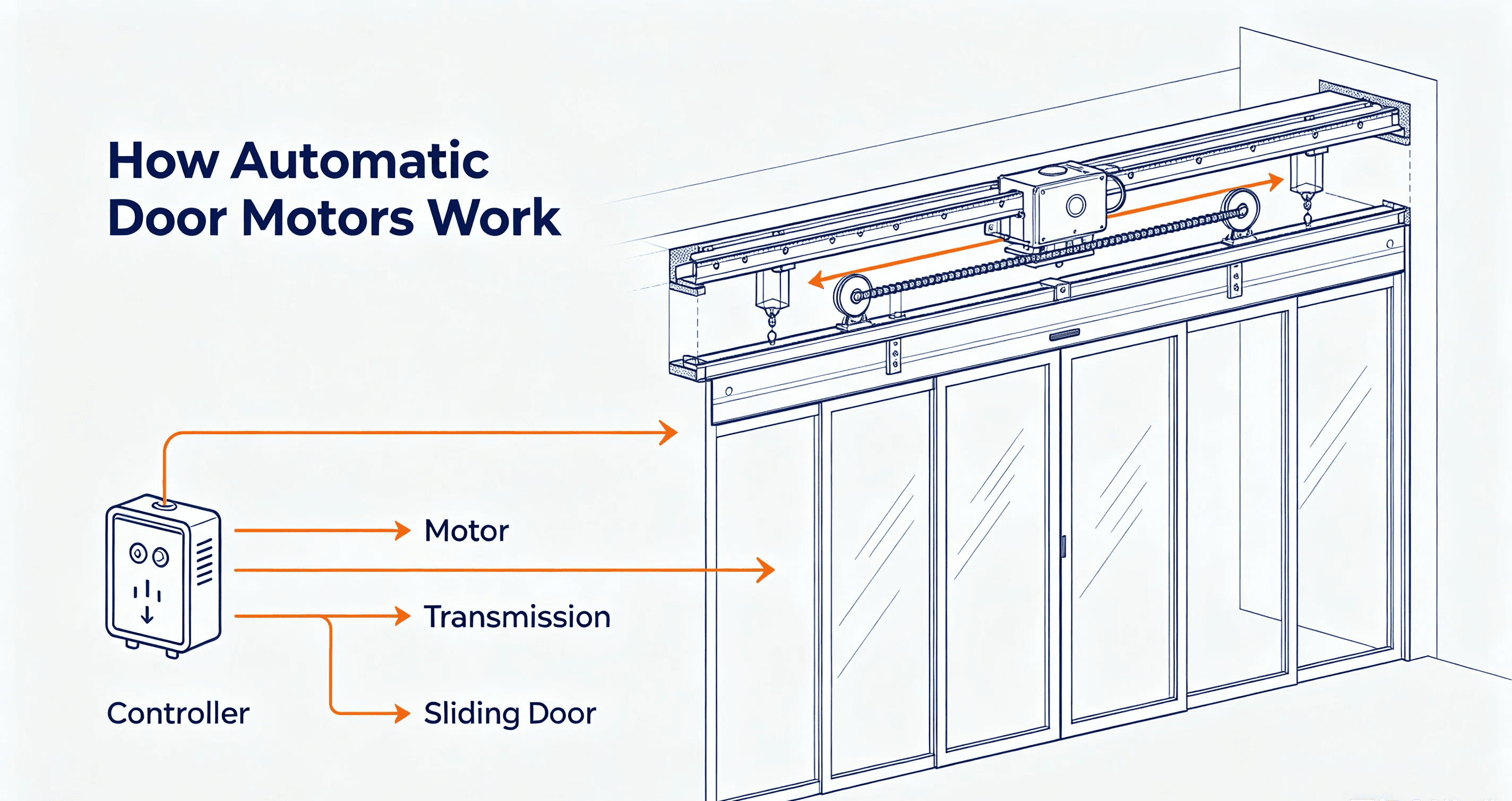

How Does an Automatic Door Motor Work?

The working process of an automatic door motor involves cooperation between several system components.

When a user approaches an automated entrance, a sensor or access control device detects the request and sends a signal to the controller. The controller then analyzes the input and determines the appropriate movement command.

After receiving instructions from the controller, the motor starts operating and generates rotational force. This force is transferred through the mechanical drive system, allowing the door panel to move along its designed path.

During operation, the controller regulates important movement factors such as speed, acceleration, and stopping position. This coordination allows the door to operate smoothly while reducing unnecessary stress on mechanical components.

After the user passes through the entrance, the system sends a closing command. The motor reverses direction and returns the door to its original position.

Although the process appears simple from the outside, reliable automatic door operation depends on precise coordination between the motor, controller, sensors, and mechanical components.

Main Components Related to Automatic Door Motors

An automatic door motor is part of a larger automation system. Its performance depends on how effectively it works with other components.

Motor Drive Unit

The motor drive unit is the main power source responsible for moving the door. Its performance affects factors such as movement stability, operating speed, and the ability to handle different door loads.

A motor with insufficient capability may struggle with heavier doors or frequent operation, while an appropriately selected motor can maintain consistent performance under expected working conditions.

For this reason, motor selection should always consider the complete door system rather than only the motor specification itself.

Controller

The controller manages communication between the motor and other automation components.

It receives signals from sensors or external control devices and determines how the motor should respond. By controlling movement parameters, the controller helps maintain safe and efficient door operation.

The relationship between the motor and controller is important because even a powerful motor cannot deliver reliable performance without suitable control management.

Transmission System

The transmission system transfers the motor’s power into actual door movement.

Depending on the door design, different mechanical structures may be used to guide movement and distribute force. A well-matched transmission system improves efficiency and reduces unnecessary wear on both the motor and door components.

For automation manufacturers and installers, ensuring compatibility between the motor and transmission mechanism is an important part of creating a reliable door solution.

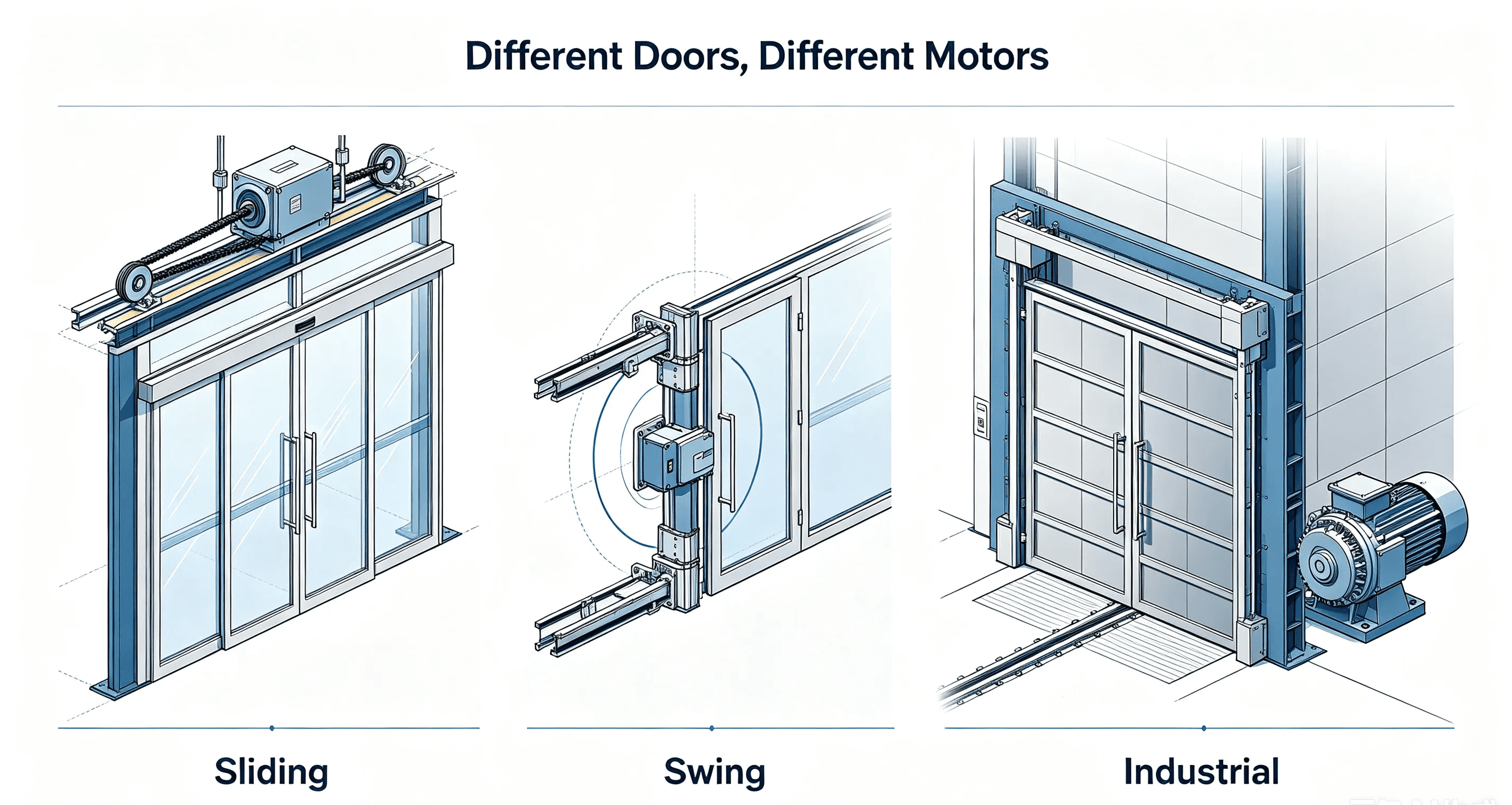

How Door Design Influences Automatic Door Motor Selection

Automatic door motors are not selected only according to the motor itself. The design, movement method, and operating requirements of the door system all influence what type of motor solution is suitable.

Different door structures create different mechanical requirements. A motor that performs well in one application may not provide the same performance in another. Understanding the relationship between door design and motor selection helps installers and project suppliers avoid choosing solutions that are unsuitable for the actual application.

Sliding Door Motors for Horizontal Movement Systems

Sliding automatic doors require motors that can provide consistent horizontal movement while maintaining smooth operation throughout repeated cycles.

Because sliding doors usually move along tracks, the motor needs to work together with the transmission mechanism to control opening speed, movement stability, and stopping accuracy. In commercial environments such as office buildings, retail entrances, and public facilities, these systems often experience frequent daily operation, making reliability an important consideration.

When selecting a motor for sliding door applications, factors such as door panel weight, opening frequency, and expected service life should be evaluated. A properly matched motor allows the system to maintain stable performance while reducing unnecessary mechanical stress.

The motor should also be compatible with the complete automation system, including the controller and safety components, to ensure coordinated operation.

Swing Door Motors for Hinged Door Automation

Swing door automation requires a different type of motor performance because the door moves through a rotating opening motion rather than horizontal movement.

The motor needs to provide sufficient force to move the door while maintaining controlled acceleration and smooth closing. This is particularly important in commercial environments where user safety and accessibility are key considerations.

Factors such as door size, door weight, hinge condition, and operating frequency can affect motor selection. A suitable motor helps ensure that the automated swing door operates consistently without placing excessive load on the door structure.

For existing buildings that need automation upgrades, swing door motors can provide a practical solution by allowing traditional hinged doors to be integrated into an automated access system.

Motors for Larger and Higher-Load Door Applications

Some automatic door applications involve larger structures, heavier loads, or more demanding operating conditions. In these cases, motor selection requires greater attention to load capacity, durability, and long-term reliability.

Warehouses, factories, and logistics facilities often use automated doors that operate frequently under demanding conditions. These environments require automation solutions that are selected according to door dimensions, weight, working environment, and expected workload.

For higher-load applications, the motor needs to provide reliable power while maintaining stable operation over extended periods. A suitable solution should balance performance requirements with energy efficiency and maintenance considerations.

This is why industrial automation projects usually require a more detailed evaluation process instead of selecting motors based only on basic specifications.

Why Proper Motor Matching Improves System Performance

An automatic door motor should always be considered as part of the complete door automation solution.

A motor that is too small for the application may experience excessive stress, reduced efficiency, or shorter service life. On the other hand, selecting a motor without considering the actual operating conditions may also create unnecessary costs.

Proper motor matching helps improve several aspects of automatic door performance, including movement consistency, operational reliability, and long-term durability.

For automation suppliers and project teams, understanding these factors makes it easier to select solutions that meet both current requirements and future operating expectations.

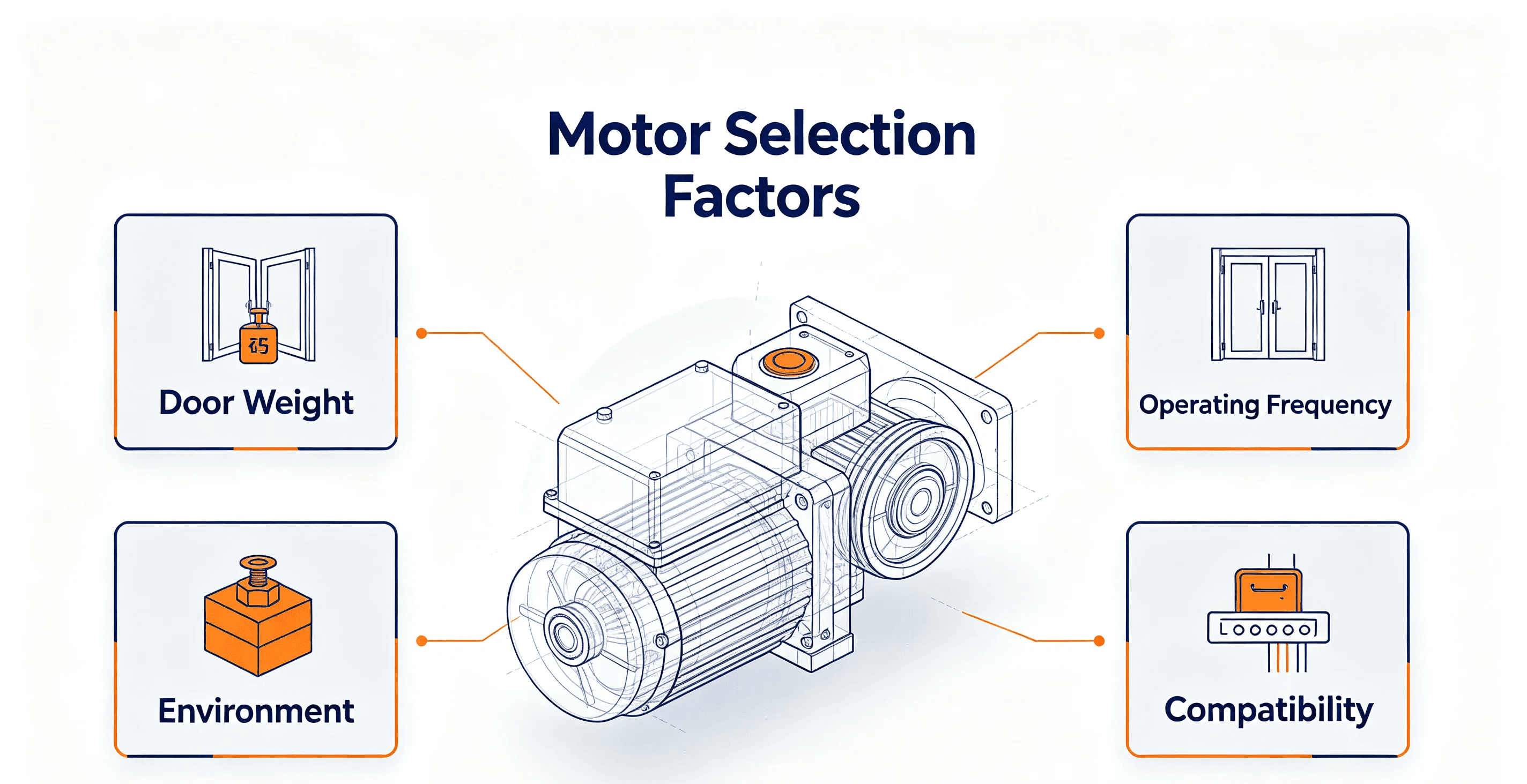

Key Factors to Consider When Selecting an Automatic Door Motor

Selecting an automatic door motor requires more than simply choosing a model with higher power output. The motor needs to match the actual working conditions of the door system to achieve reliable performance and long-term operation.

For installers, distributors, and project suppliers, several factors should be evaluated before choosing an automatic door motor.

Door Weight and Dimensions

The size and weight of the door are among the most important factors affecting motor selection.

A heavier or larger door requires greater driving force to achieve smooth movement. If the motor capacity does not match the door load, the system may experience slower operation, unstable movement, or increased wear on mechanical components.

However, selecting a motor with excessive capacity is not always the best solution. The motor should be appropriately matched with the door structure to achieve efficient operation without unnecessary energy consumption or increased system costs.

Operating Frequency and Usage Conditions

The number of opening and closing cycles a door performs each day directly influences motor requirements.

A door installed in a busy commercial entrance may operate continuously throughout the day, while a door in a low-traffic environment may experience much fewer cycles. These different usage patterns place different demands on motor durability and operating stability.

When evaluating a motor solution, buyers should consider expected traffic levels, working schedules, and required service life. A motor designed for frequent operation should be able to maintain consistent performance over extended use.

Installation Environment

The surrounding environment can also affect automatic door motor performance.

Commercial and industrial entrances may face different conditions, including temperature changes, dust, moisture, or other external factors. A suitable motor solution should be selected according to the actual installation environment.

Environmental conditions can influence component durability, maintenance requirements, and overall system reliability. Understanding where the door will operate helps ensure the selected motor can perform effectively throughout its service life.

Compatibility With the Complete Automation System

An automatic door motor must work together with other system components, including controllers, sensors, and mechanical structures.

Even a high-quality motor may not deliver the expected performance if it is not properly matched with the rest of the automation system. Compatibility affects movement accuracy, safety performance, and ease of installation.

For this reason, motor selection should focus on the complete solution rather than evaluating the motor as an isolated component.

Maintenance and Reliability Considerations

Long-term reliability is an important consideration for commercial and industrial automation projects.

A well-selected automatic door motor can help reduce unnecessary maintenance and improve system availability. However, performance also depends on proper installation, correct usage, and regular inspection of related components.

For businesses managing multiple automated entrances, choosing reliable motor solutions can help maintain consistent operation and reduce potential interruptions caused by equipment issues.

Understanding the Relationship Between Motor Performance and Application Needs

Automatic door motors serve as the driving force behind automated entrance systems, but their effectiveness depends on how well they match the application requirements.

Different projects have different priorities. Some may focus on frequent operation and durability, while others may prioritize smooth movement, accessibility, or integration with existing systems.

By considering door structure, operating conditions, environmental factors, and system compatibility, buyers can make more informed decisions when selecting automatic door motor solutions.

Frequently Asked Questions

Q: What is the difference between an automatic door motor and an automatic door operator?

A: An automatic door motor is the component responsible for generating the driving force that moves the door. An automatic door operator usually refers to a broader system that includes the motor, controller, sensors, and related mechanical components.

In many applications, the motor is considered the core drive component within the complete door automation system.

Q: How long can an automatic door motor operate?

A: The service life of an automatic door motor depends on several factors, including product quality, installation conditions, operating frequency, and maintenance practices.

Motors used in high-traffic commercial environments generally require stronger durability because they perform more operating cycles compared with doors in lower-use applications.

Proper system matching and regular maintenance can help maintain reliable performance over a longer period.

Q: Can the same automatic door motor be used for different door applications?

A: Not always. Different door structures create different mechanical requirements.

A motor designed for one type of automatic door may not be suitable for another application because factors such as movement method, door weight, and operating conditions can vary significantly.

The motor should be selected based on the complete door system and its intended working environment.

Q: What happens if an automatic door motor is incorrectly selected?

A: An unsuitable motor may cause several performance issues, including unstable movement, excessive operating noise, slower response, or increased mechanical wear.

In demanding applications, an incorrectly matched motor may also reduce system reliability and increase maintenance requirements.

This is why motor selection should consider factors such as door dimensions, usage frequency, and environmental conditions rather than focusing only on basic specifications.

Q: Are automatic door motors suitable for industrial applications?

A: Yes, but industrial applications usually require motors that are selected according to higher operating demands.

Warehouses, factories, and logistics facilities often require automation components that can handle heavier loads and frequent operation. In these situations, durability, compatibility, and long-term reliability become especially important considerations.

Conclusion

Automatic door motors are a key component in modern door automation systems, providing the driving force needed for smooth and reliable operation. Although users mainly interact with the door itself, the motor, controller, and related components work together behind the scenes to deliver consistent performance.

Selecting the right motor requires understanding the relationship between the door structure, operating conditions, and application requirements. Factors such as door weight, usage frequency, installation environment, and system compatibility all influence the final selection.

For automation suppliers, installers, and project partners, choosing reliable components from an experienced manufacturer can help create solutions that meet different commercial and industrial requirements.

DP Group provides automation solutions including door motors and related components designed for different application needs. By combining suitable product selection with technical support, businesses can develop reliable automatic door systems for various projects.
