Swing Gate Opener Guide: Types, Applications, and Selection Tips

Introduction

Swing gate openers are a popular automation solution for gates that operate through a hinged opening movement.

Unlike sliding gate systems that move horizontally along a track, swing gates open and close by rotating around fixed hinges. Because of this different movement structure, swing gate openers require specific motor designs to provide controlled and reliable operation.

Swing gate automation is widely used in residential entrances, commercial properties, and access points where traditional hinged gates are preferred.

For installers, distributors, and project suppliers, understanding how swing gate openers work, the available types, and their application requirements helps in selecting more suitable automation solutions.

What Is a Swing Gate Opener?

A swing gate opener is an automatic device designed to control the opening and closing movement of hinged gates.

The system uses a motor-driven mechanism to push or pull the gate panel, replacing manual operation with automated movement.

A complete swing gate opener system usually includes a motor actuator, control unit, power supply, remote control, and safety components.

The purpose of a swing gate opener is not only to improve convenience but also to provide more efficient access control while maintaining smooth and controlled gate movement.

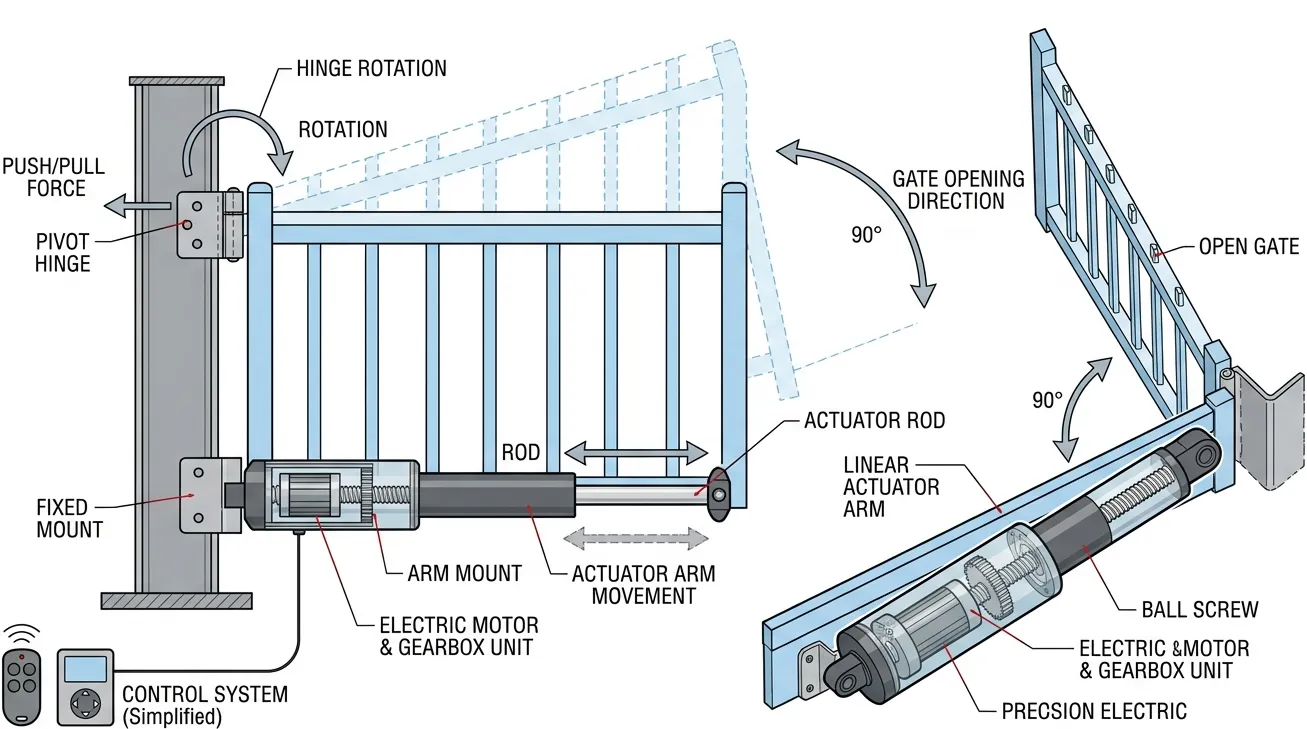

How Swing Gate Openers Work

Swing gate openers operate by converting electrical energy into mechanical movement.

When a user sends an opening or closing command through a remote control, keypad, sensor, or access device, the control unit activates the motor.

The motor then drives the actuator mechanism, which moves the gate panel around its hinges until it reaches the programmed position.

Actuator Movement Mechanism

The actuator is the main mechanical component responsible for moving the gate.

Depending on the design, the actuator may extend or retract to push and pull the gate panel. This controlled movement allows the gate to open and close smoothly while maintaining stability.

The actuator force needs to match the gate size, weight, and hinge condition to avoid excessive stress on the system.

Control and Safety Operation

The control system manages important functions such as movement direction, opening limits, and closing control.

Safety components, including obstacle detection sensors, help monitor the gate movement area and improve protection during operation.

By coordinating the motor, controller, and safety devices, a swing gate opener can provide reliable automated access.

Main Components of a Swing Gate Opener

A swing gate opener consists of several components that work together to automate gate movement.

Motor and Actuator Unit

The motor and actuator unit provides the driving force required to move the gate.

Different gate sizes and weights require different actuator capacities. Selecting a suitable motor solution helps ensure stable operation and reduces unnecessary load on the gate structure.

The actuator design also affects installation requirements, opening speed, and overall system performance.

Control Board

The control board acts as the central management component of the system.

It receives signals from remote controls, sensors, and access devices, then controls the motor according to programmed settings.

Modern control systems may also support additional functions such as smart access integration and safety management.

Safety Components

Safety components help improve the reliability of swing gate operation.

Sensors and protection devices monitor the movement area and help reduce risks caused by obstacles or unexpected conditions.

For residential, commercial, and industrial applications, suitable safety integration is an important part of creating a complete automation solution.

Types of Swing Gate Openers

Swing gate openers are available in different designs depending on installation requirements, gate structure, and performance expectations.

The two most common types are linear arm swing gate openers and underground swing gate openers.

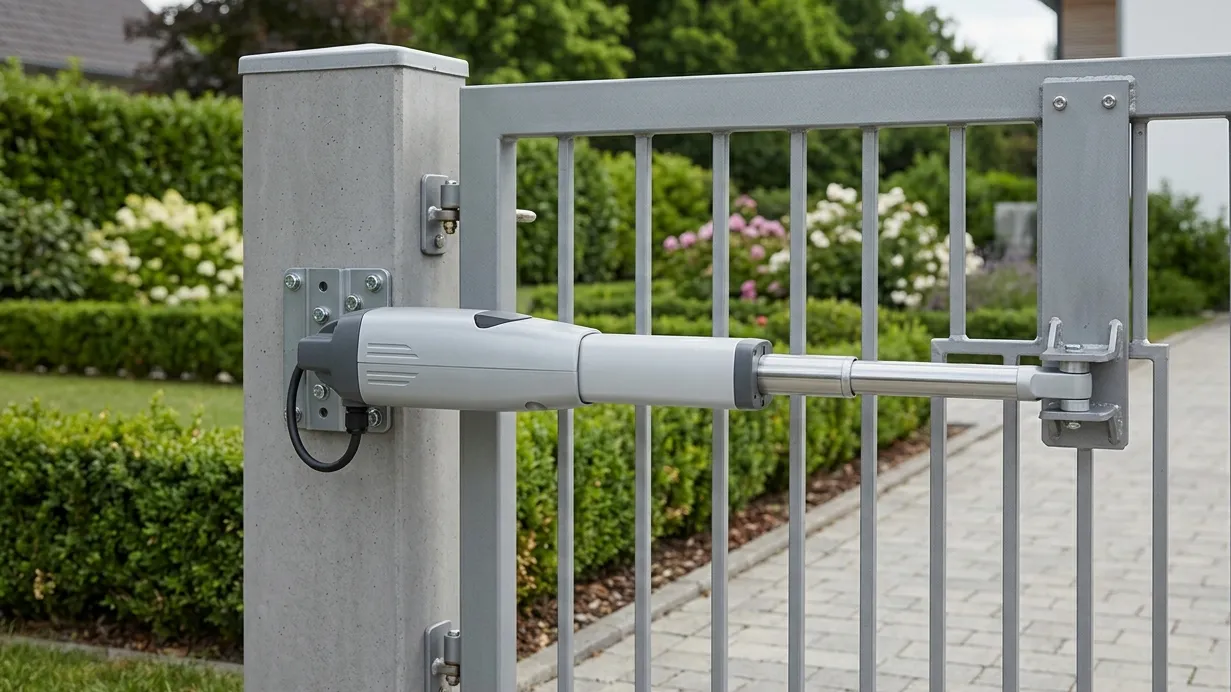

Linear Arm Swing Gate Openers

Linear arm swing gate openers are one of the most widely used solutions for swing gate automation.

The actuator arm is installed between the gate post and the gate panel. During operation, the arm extends or retracts to open and close the gate.

This design is popular because of its relatively simple installation and suitability for many residential and commercial applications.

Linear arm systems are commonly selected for gates where visible actuator installation is acceptable and reliable operation is required.

Types of Swing Gate Openers

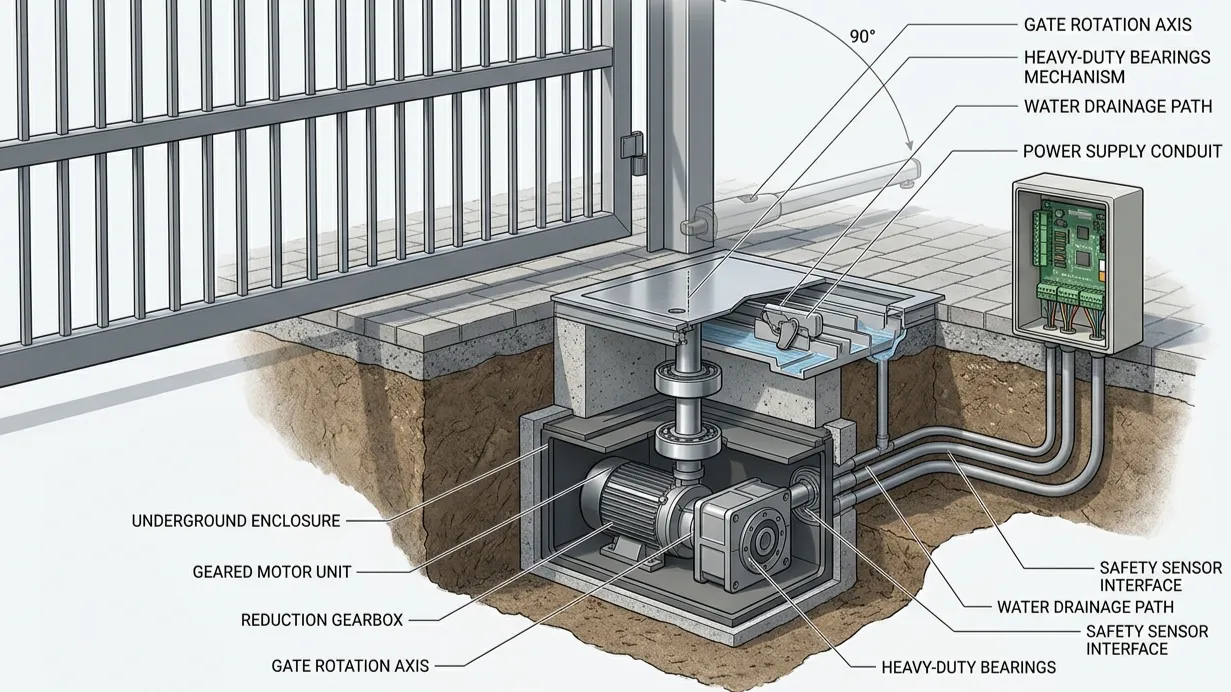

Underground Swing Gate Openers

Underground swing gate openers are designed to be installed below the gate structure, keeping the automation components hidden from view.

Unlike linear arm systems, underground openers are installed beneath the gate hinge area and control movement through an internal mechanism.

This design provides a cleaner appearance and is often preferred for premium residential properties, villas, and architectural projects where visual appearance is an important consideration.

However, underground systems usually require more complex installation because the motor unit needs to be properly positioned below ground and protected from environmental conditions.

Swing Gate Opener Applications

Swing gate openers are used in different environments where automated hinged gate operation is required.

The suitable opener type depends on gate size, usage frequency, installation conditions, and access requirements.

Residential Applications

Residential entrances are one of the most common applications for swing gate openers.

Homeowners often choose swing gate automation to improve daily convenience while maintaining the traditional appearance of hinged gates.

For residential projects, factors such as quiet operation, compact design, remote control functions, and simple maintenance are usually important considerations.

A properly selected swing gate opener can provide reliable access control for driveways, private entrances, and residential properties.

Commercial Applications

Commercial properties may require swing gate openers for controlled vehicle and pedestrian access.

Applications such as office buildings, small business entrances, and private facilities often require automation systems that provide reliable operation while supporting access management functions.

For these projects, opener durability, safety features, and compatibility with additional control devices should be considered.

Industrial Applications

Industrial environments may require stronger swing gate solutions due to larger gates and higher operating demands.

Factories, warehouses, and restricted access areas may use automated swing gates for vehicle control and site security.

In these applications, the opener should be selected based on gate dimensions, operating frequency, and environmental conditions.

How to Choose a Swing Gate Opener

Selecting the right swing gate opener requires evaluating the complete gate system rather than focusing only on motor specifications.

The most suitable solution should match the physical structure of the gate and the expected working conditions.

Consider Gate Size and Weight

Gate dimensions and weight are important factors when selecting a swing gate opener.

Larger and heavier gates require stronger actuator capability to achieve stable movement.

However, weight is not the only consideration. Factors such as hinge condition, gate balance, and installation quality can also affect the actual workload placed on the opener.

A properly matched opener helps reduce mechanical stress and improves long-term reliability.

Evaluate Opening Angle and Installation Space

The available installation space can influence the choice of swing gate opener.

Different gate designs may require different opening angles and actuator positions.

Before installation, the gate structure, hinge location, and surrounding space should be evaluated to ensure that the selected opener can operate correctly.

Consider Operating Frequency and Environment

The expected usage frequency affects opener durability requirements.

A residential gate with occasional operation has different needs compared with a commercial entrance that opens and closes many times per day.

Environmental factors such as rain, dust, temperature changes, and outdoor exposure should also be considered when selecting a suitable solution.

Common Mistakes When Choosing a Swing Gate Opener

One common mistake is selecting an opener based only on gate weight.

Although weight is an important factor, the complete mechanical structure and operating conditions also influence performance requirements.

Another mistake is ignoring installation limitations. An opener that is suitable for one gate design may not work effectively for another due to differences in space, hinge position, or opening requirements.

Some projects also overlook future needs, such as additional access control functions or increased operating frequency.

A successful selection process should evaluate the entire gate system to ensure reliable and efficient operation.

Frequently Asked Questions

Q1: What is a swing gate opener?

A: A swing gate opener is an automatic motorized device used to control the opening and closing movement of hinged gates.

Q2: What are the main types of swing gate openers?

A: The two main types are linear arm swing gate openers and underground swing gate openers. The choice depends on installation requirements and design preferences.

Q3: Are swing gate openers suitable for heavy gates?

A: Yes, but the opener must be selected according to gate size, weight, operating frequency, and mechanical conditions.

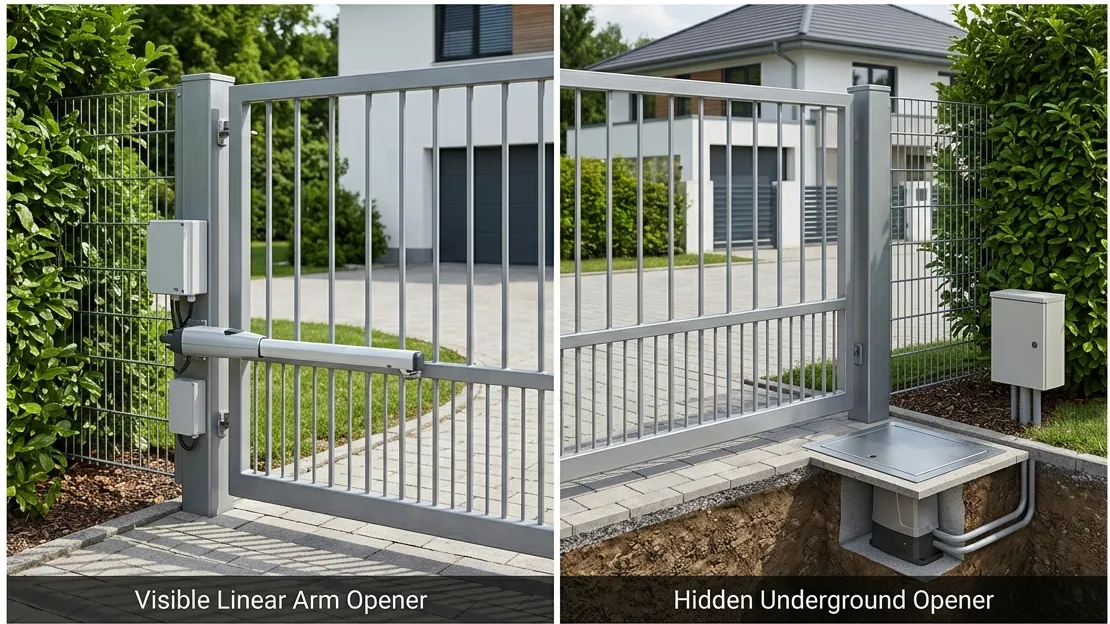

Q4: What is the difference between linear arm and underground swing gate openers?

A: Linear arm openers are installed visibly between the gate post and panel, while underground openers are hidden beneath the gate structure for a cleaner appearance.

Q5: Can swing gate openers be integrated with access control systems?

A: Yes. Many swing gate openers can work with remote controls, keypads, sensors, and other access management devices.

Conclusion

Swing gate openers provide a practical automation solution for hinged gates used in residential, commercial, and industrial environments.

Linear arm and underground swing gate openers each offer different advantages depending on installation requirements, appearance preferences, and performance needs.

By considering gate structure, size, operating frequency, and environmental conditions, installers and suppliers can select a suitable swing gate opener that improves convenience, reliability, and long-term system performance.
